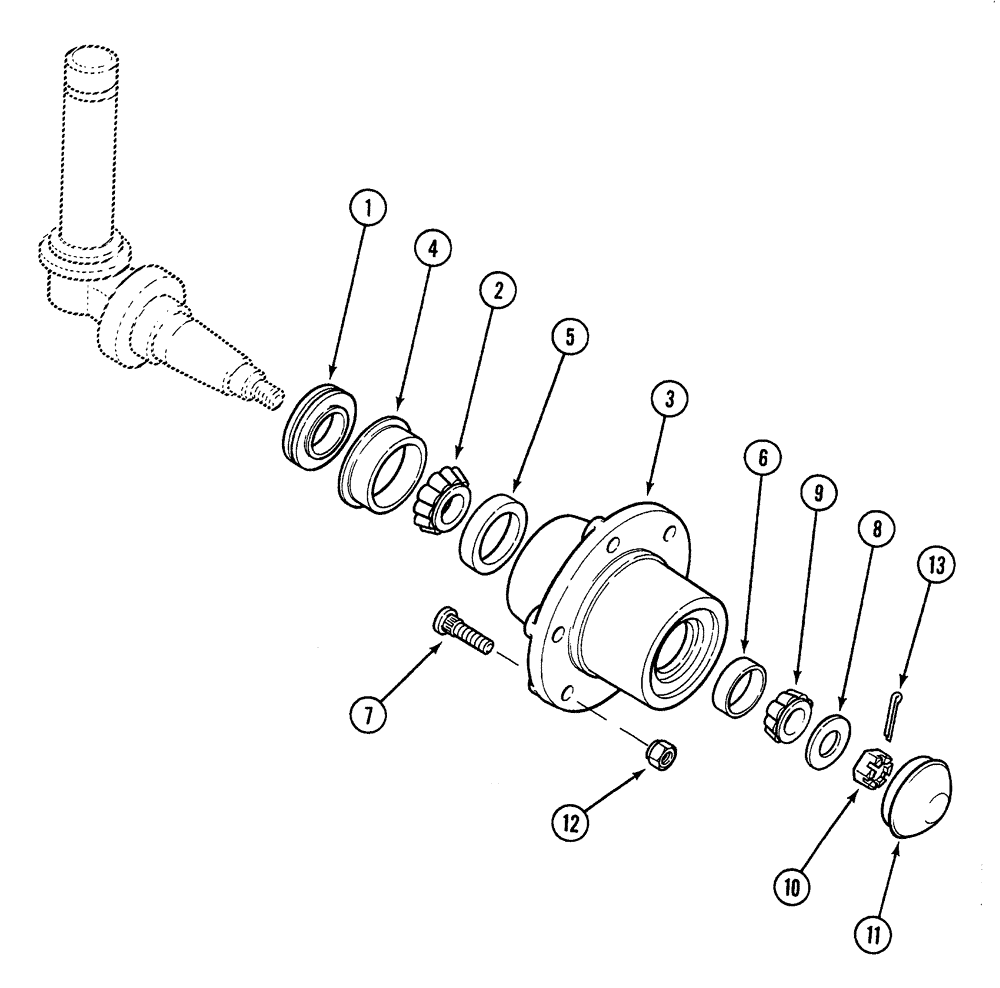

Запчасти Case 380B (5-22) - WHEEL HUBS - ADJUSTABLE STRAIGHT FRONT AXLE (05) - STEERING

1

405835R91

SEAL

SEAL - dust, front wheel

2шт.

1

530104R91

SEAL

dust, Serial Range: (Optional-405835R91)

2шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

inner

2шт.

2

371897R91

BEARING ASSY,1.315" ID x 2.5625" OD x 0.72"

BEARING - cone (Optional to 618023R91)

2шт.

2

1536194C1

ROLLER BEARING,34.925 mm ID x 65.113 mm OD x 18.21 mm

(Optional to 618023R91)

2шт.

3

406294R21

HUB ASSY.

front wheel

2шт.

4

406295R2

RING

wear

1шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

1шт.

5

371898R1

BEARING, CUP

, Serial Range: (Optional-618024R1)

1шт.

5

1536193C1

BEARING CUP

cup, Serial Range: (Optional-618024R1)

1шт.

6

371883R1

BEARING CUP

Outer

1шт.

6

371908R1

BEARING CUP

, Serial Range: (Optional-371883R1)

1шт.

6

1536187C1

BEARING, CUP,21.443 mm ID x 50.005 mm OD x 18.29 mm

(Optional to 371883R1)

1шт.

7

528803R1

BOLT,1/2" - 20 x 1.75"

Wheel mounting

6шт.

8

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, 25/32 x 1-1/4 x 7/64 inch, hardened

2шт.

9

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

2шт.

9

371907R91

ROLLER BEARING,0.8437" ID x 1.9687" OD x 0.72"

cone (Optional to 371882R91)

2шт.

9

1536188C1

ROLLER BEARING,21.43 mm ID x 50.005 mm OD x 18.29 mm

cone (Optional to 371882R91)

2шт.

10

25-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

2шт.

11

612884R1

HUB CAP

hub, front wheel

2шт.

12

483879R2

SPECIAL NUT

wheel retaining

12шт.

13

32-1022

COTTER PIN,5/32" x 1 3/8"

2шт.
