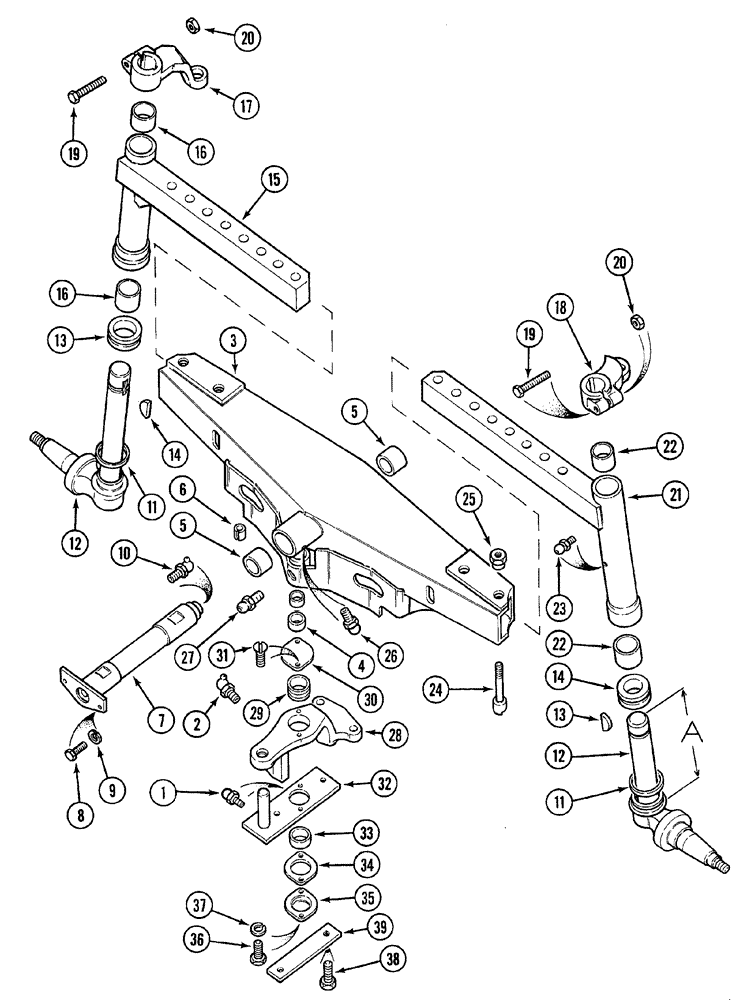

Запчасти Case 380B (5-18) - ADJUSTABLE STRAIGHT FRONT AXLE - DRAWBAR AND LCG TRACTORS (05) - STEERING

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING - grease, straight drive type, 3/16 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

3

69881C93

FRONT AXLE

ASSEMBLY center section

1шт.

4

1536870C1

BUSHING,25.43mm ID x 28.7mm OD x 34mm L

Cylinder mounting bracket

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot..

2шт.

6

3125304R1

BUSHING

spring steel

1шт.

7

539128R1

SHAFT ASSY.

front axle pivot

1шт.

7

99897C1

SHAFT

ASSEMBLY - front axle pivot (Front mounted hydraulic pump)

1шт.

8

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

9

92-11050

LOCK WASHER,1/2"

2шт.

10

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

LUBRICATOR FITTING - grease, 90 degree, 1/8 inch PT

1шт.

11

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Felt, Steering knuckle

1шт.

12

405840R12

KNUCKLE

ASSY. steering (Dimension A 12.17 inch) (Drawbar tractor)

2шт.

12

534288R92

KNUCKLE

ASSY. steering (Dimension A 9.52 inch) (LCG tractor)

2шт.

13

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

1шт.

14

405831R91

BEARING

thrust, steering knuckle

1шт.

14

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

thrust, Serial Range: (Optional-405831R91)

1шт.

14

369131R91

THRUST BEARING

thrust, Serial Range: (Optional-405831R91)

1шт.

15

3116476R1

EXTENSION ASSY.

front axle, right (Used with knuckle 534288R92)

1шт.

15

67533C91

EXTENSION ASSY.

front axle, right (Used with knuckle 405840R12)

1шт.

16

367099R1

BUSHING

front axle extension

2шт.

17

67525C1

ARM

steering knuckle, right hand

1шт.

18

67524C1

ARM

steering knuckle, left hand

1шт.

19

13-850

BOLT,Hex, 1/2" - 13 x 3-1/8", Gr 5

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

2шт.

21

3116475R91

EXTENSION ASSY.

front axle, left (Used with knuckle 534288R92)

1шт.

21

67532C91

EXTENSION ASSY.

front axle, left (Used with knuckle 405840R12)

1шт.

22

367099R1

BUSHING

front axle extension

2шт.

23

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING - grease, drive type, 1/4 inch

1шт.

24

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

25

405576R1

NUT

front axle

4шт.

26

219-14

LUBE NIPPLE,1/4" NPTF

Straight

1шт.

27

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING - grease, 45 degree drive type, 1/4 inch

1шт.

28

67499C93

STEERING ARM

ASSEMBLY - center, power

1шт.

29

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

center arm

1шт.

30

1536890C1

LARGE PLATE

PLATE, LARGE cover

1шт.

31

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

2шт.

32

405580R21

BAR ASSY.

power steering cylinder

1шт.

33

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

bar assembly

1шт.

34

1536919C1

GASKET

cover plate

1шт.

35

1536892C1

LARGE PLATE

PLATE, LARGE cover

1шт.

36

463-12510

SCREW,Hex Hd, 1/4"-20 x 5/8"

hex flange, 1/4 NC x 5/8 inch

2шт.

37

492-11025

LOCK WASHER,1/4"

2шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.
