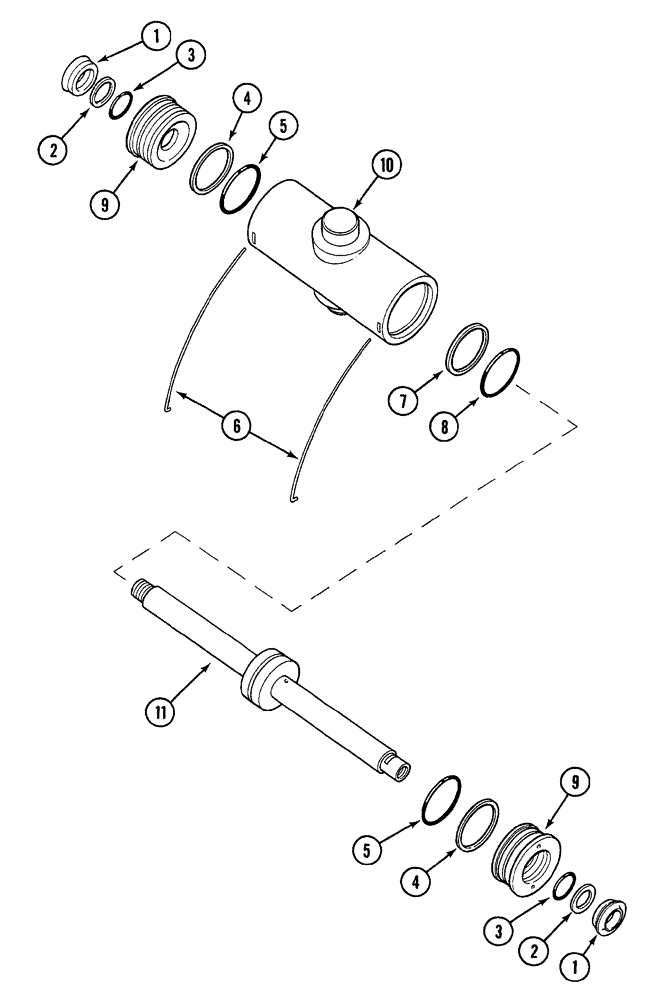

Запчасти Case 380B (5-14) - POWER STEERING CYLINDER - ADJUSTABLE FRONT AXLES (05) - STEERING

549667R92

STEERING CYLINDER

ASSEMBLY - power

1шт.

84336125R

REMAN-HYD CYLINDER

380B AFTER S/N JJE0001501 ASN JJE0001501 POWER STEERING CYLINDER - ADJUSTABLE FRONT AXLE, Reman for New P/N 549667R92

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

55355C91

GASKET KIT

service, O-rings, seals and washers

1шт.

1

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER - piston rod

2шт.

2

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

piston rod back-up

2шт.

3

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

4

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

back-up, rear head

2шт.

5

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

6

NSS

NOT SOLD SEPARAT

WIRE - locking

2шт.

7

379959R1

RING,Square, 3.17mm Thk x 58mm ID

piston seal

1шт.

8

238-6137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

1шт.

9

400591R1

HEAD

rear

2шт.

10

400587R1

HYD CYL SLEEVE

BODY

1шт.

84336125R

REMAN-HYD CYLINDER

380B AFTER S/N JJE0001501 , Reman for New P/N 400587R1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

11

549668R2

PISTON ROD

1шт.
