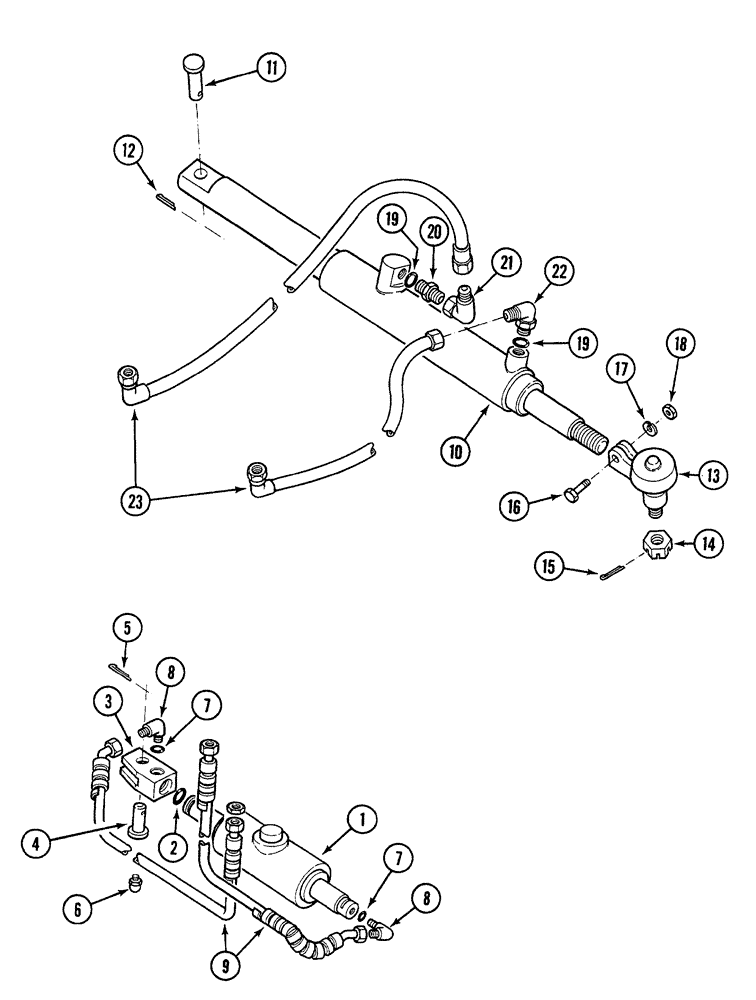

Запчасти Case 380B (5-06) - POWER STEERING CYLINDERS AND HOSES (05) - STEERING

1

549667R92

STEERING CYLINDER

ASSEMBLY - power (See Figure 5-14), adjustable front axle

1шт.

84336125R

REMAN-HYD CYLINDER

380B AFTER S/N JJE0001501 ASN JJE0001501 POWER STEERING CYLINDERS AND HOSES, Reman for New P/N 549667R92

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Adjustable front axle

1шт.

3

3125306R1

CLEVIS,9/16" - 18

cylinder end, adjustable front axle

1шт.

4

3125305R1

PIN

power steering cylinder, adjustable front axle

1шт.

5

32-1620

COTTER PIN,1/4" x 1 1/4"

Ajustable front axle

1шт.

6

219-17

LUBE NIPPLE,3/16" NPTF

Adjustable front axle

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss, adjustable front axle

1шт.

9

3121235R1

HOSE

ASSEMBLY - power steering cylinder, adjustable front axle

2шт.

10

3118502R93

STEERING CYLINDER

ASSEMBLY - power (See Figure 5-16), swept back cast front axle

1шт.

11

518505R1

HEADED PIN,3/4" x 3"

headed, 3/4 x 3 inch, swept back cast front axle

1шт.

12

32-1628

COTTER PIN,1/4" x 1 3/4"

Swept back cast front axle

1шт.

13

378817R91

BALL JOINT

END ASSEMBLY - power steering cylinder, swept back cast front axle

1шт.

14

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

hex slotted, 7/8 inch NC, swept back cast front axle

1шт.

15

32-824

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , swept back cast front axle 1/8" x 1 1/2"

1шт.

16

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

BOLT - hex, 3/8 NF x 1-3/4 inch, swept back cast front axle

1шт.

17

492-11038

LOCK WASHER,3/8"

Swept back cast front axle

1шт.

18

425-116

NUT,3/8" - 24, Gr 5

Swept back cast front axle

1шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Swept back cast front axle

1шт.

21

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

45 degree, swivel, 9/16-18 inch flare x O-ring boss , swept back cast front axle

1шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss, swept back cast front axle

1шт.

23

3121235R1

HOSE

ASSEMBLY - power steering cylinder, swept back cast front axle

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Adjustable front axle

2шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Swept back cast front axle

2шт.
