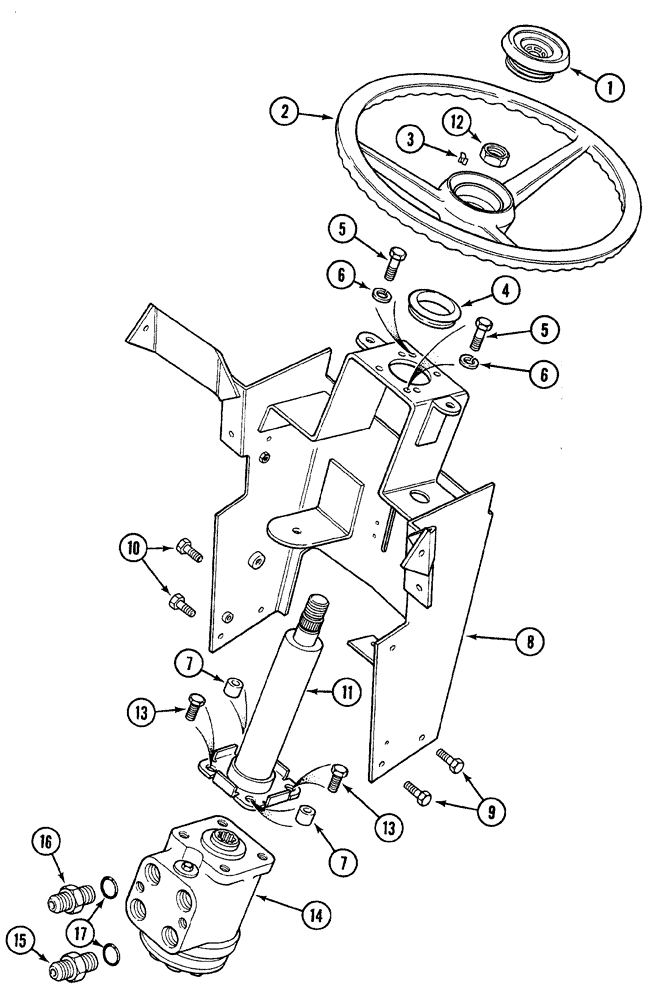

Запчасти Case 380B (5-02) - STEERING WHEEL, SUPPORT AND VALVE (05) - STEERING

1

68836C1

CAP

steering wheel

1шт.

2

3123597R91

HANDWHEEL

steering, 408 mm dia

1шт.

2

3123302R91

HANDWHEEL

steering, 408 mm dia, low dish (LCG tractor)

1шт.

3

3123598R1

CLIP,ELECTRICAL

retaining

3шт.

4

3123366R1

PLUG

BOOT - rubber, steering shaft

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

92-11038

LOCK WASHER,3/8"

2шт.

7

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

pipe, 3/8 x 3/8 inch

2шт.

8

99968C2

STEERING SUPPORT

ASSEMBLY

1шт.

8

3121632R3

SUPPORT ASSY.

(Loader version)

1шт.

8

3121632R3

SUPPORT ASSY.

steering (Tractor with forward/reverse)

1шт.

9

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex, 3/8 NC x 1/2 inch

3шт.

10

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

11

3121187R92

STEERING COLUMN

COLUMN-STEERING SHAFT ASSEMBLY with nut

1шт.

12

F19646

LOCK NUT,13/16"-20, Thin

hex, steering wheel retaining

1шт.

13

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

14

88107C92

PUMP

VALVE ASSEMBLY - integral, power steering (See Figure 5-12)

1шт.

366441A1R

REMAN-HYD PUMP

380B (AFTER S/N JJE0001501), Reman for New PN 88107C92

1шт.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

15

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter, Straight, O-ring boss

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
