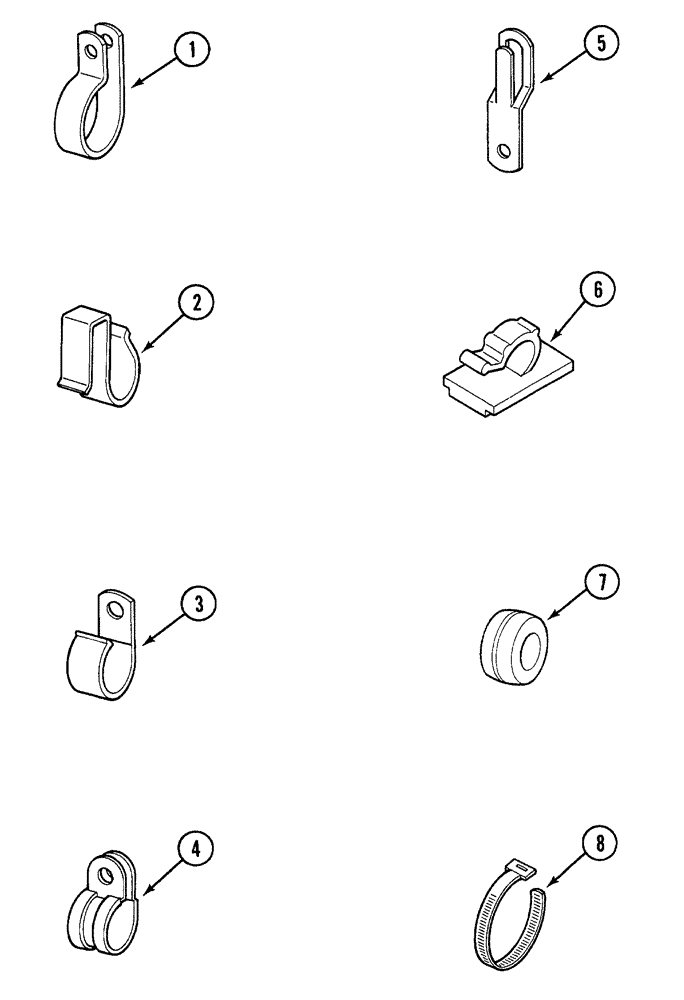

Запчасти Case 380B (4-24) - CABLE CLIPS, STRAPS AND GROMMETS (03) - FUEL SYSTEM

1

3116240R1

CLIP

0.56 diameter, closed {Battery cable)

1шт.

2

3116918R1

CABLE CLIP

edge, 0.25 max diameter (Air cleaner bracket)

1шт.

2

3125873R1

CLIP

edge, 0.374 max diameter (Front grille)

2шт.

2

537024R1

CLIP

edge, 0.46 max diameter (Seat deck, left)

1шт.

2

537025R1

CLIP

edge, 0.55 max diameter (Master cylinder bracket)

1шт.

2

3113490R1

CLIP

edge, 0.55 max diameter (Steering support)

1шт.

3

366460R1

CABLE CLIP

0.25 diameter, open (Front cover, right)

1шт.

3

366460R1

CABLE CLIP

0.25 diameter, open (Light harness)

2шт.

3

100770H

CLIP

0.31 diameter, open (Grille shroud, left)

1шт.

3

100770H

CLIP

0.31 diameter, open (Grille tie bar, left)

1шт.

3

316433C1

CLAMP

CLIP - 0.50 diameter, open (Main harness)

1шт.

3

1536404C1

CLIP

CLIP - 20 mm diameter, open (Main harness to instrument shroud)

2шт.

4

3125823R1

CLIP

0.75 diameter (Battery tray)

1шт.

5

708115R1

PLATE ASSY.

CLIP - spring type

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP 1.75 max bundle (Battery cable)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP 1.75 max bundle (Battery support)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP 1.75 max bundle (Battery tray)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP 1.75 max bundle (Fuel pipe)

2шт.

8

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP 1.75 max bundle (Steering support)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP 1.75 max bundle (Front hood support)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP 1.75 max bundle (Starter cable)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP 1.75 max bundle (Battery earth cable)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP 1.75 max bundle (Main harness tie)

1шт.

8

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - cable, 4.0 max bundle (Air inlet hose)

2шт.

8

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - cable, 4.0 max bundle (Steering support)

1шт.
