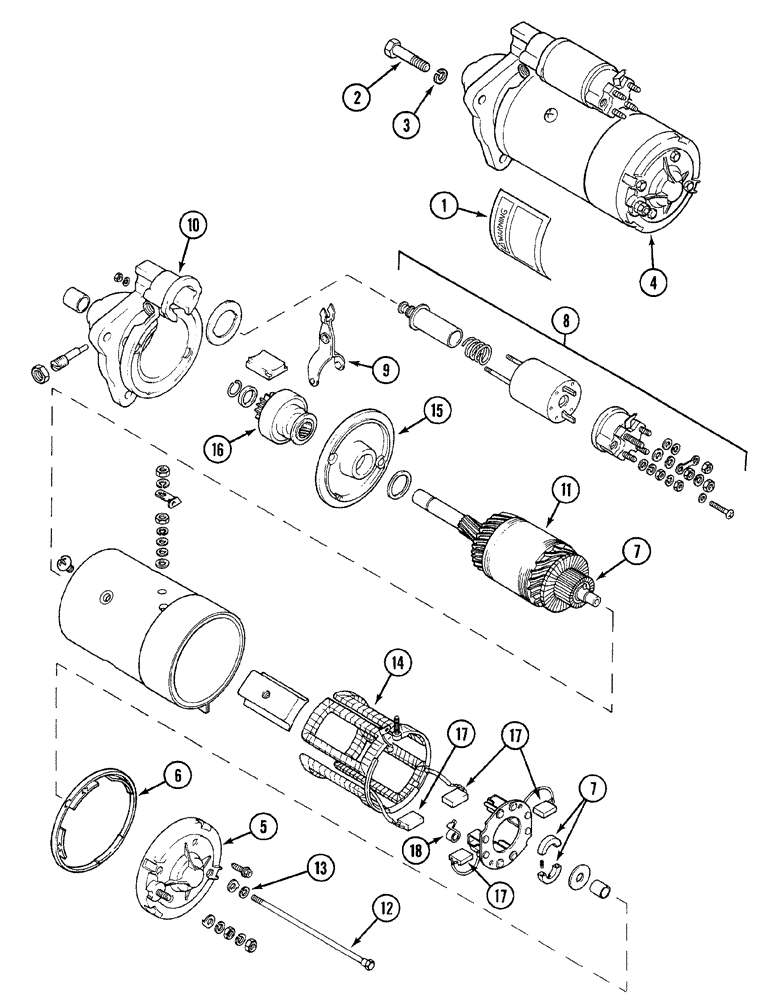

Запчасти Case 380B (4-18) - STARTER MOTOR - LUCAS (03) - FUEL SYSTEM

1

321-3709

DECAL

warning, starter motor (English)

1шт.

1

321-6798

DECAL

warning, starter motor (French)

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

3

92-11038

LOCK WASHER,3/8"

3шт.

4

537140R96

STARTING MOTOR

Lucas No. 27508

1шт.

4

87297312

REMAN-STARTER

Starter; For N.A. only

1шт.

4

87297313

CORE-STARTER

Return number - For N.A. only

1шт.

4

189330A5GV

STARTER MOTOR,12V, 2.8kW

Value

1шт.

5

3206511R91

BRACKET

KIT - commutator end frame

1шт.

6

3113026R91

PLATE ASSY.

brush mounting

1шт.

7

3206531R91

BRAKE PACKAGE

KIT

1шт.

8

84060C1

SOLENOID SWITCH

SWITCH

1шт.

9

84061C1

KIT

engaging lever

1шт.

10

NSS

NOT SOLD SEPARAT

BRACKET - end mounting

1шт.

11

84059C1

ARMATURE

ASSEMBLY - starter motor

1шт.

12

3129088R1

BOLT

through

2шт.

13

3129089R1

WASHER

spring

2шт.

14

84058C1

KIT

field coils

1шт.

15

3119902R91

SUPPORT

BEARING - intermediate

1шт.

16

84209C1

DRIVE ASSY.

starter motor

1шт.

17

3118371R91

BRUSH, COMMUTATOR

BRUSH KIT

1шт.

18

3206523R91

SPRING KIT

brush

1шт.

3206529R91

KIT

sundry parts (Not illustrated)

1шт.

78986C1

PACKAGE

KIT - retention (Not illustrated)

1шт.

3206528R91

SEAL KIT

KIT (Not illustrated)

1шт.

3113029R91

BUSHING

KIT (Not illustrated)

1шт.

87297318

REMAN-STARTER

Remanufactured STARTER - NA Only

1шт.

87297319

CORE-STARTER

Return number - For N.A. only

1шт.
