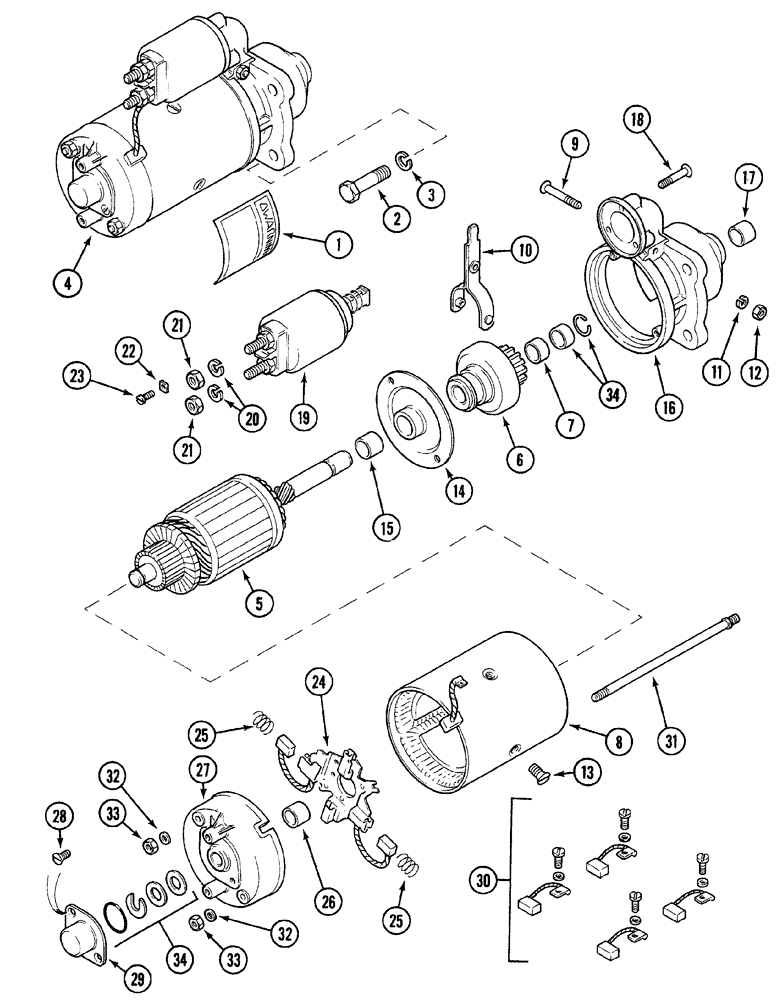

Запчасти Case 380B (4-16) - STARTER MOTOR - BOSCH (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
321-3709
DECAL
warning, starter motor (English)
1шт.
1
321-6798
DECAL
warning, starter motor (French)
1шт.
2
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
3шт.
3
92-11038
LOCK WASHER,3/8"
3шт.
4
529965R93
STARTING MOTOR
1шт.
4
87297312
REMAN-STARTER
Starter; For N.A. only
1шт.
4
87297313
CORE-STARTER
Return number - For N.A. only
1шт.
5
3079252R1
ARMATURE
starter motor
1шт.
6
3129631R1
DRIVE ASSY.
starter motor
1шт.
7
3079254R1
BUSHING
drive assembly
1шт.
8
3079356R1
COIL
field winding, 1 to 4 complete
1шт.
9
3079251R1
BOLT
engaging lever
1шт.
10
3078965R1
LEVER
FORK - clutch drive engaging
1шт.
11
3079166R1
SPRING WASHER,M8.4 ID x 15 OD x .8 Thk
8 mm
1шт.
13
3129639R1
SCREW
field coil retaining
4шт.
14
3079253R1
BALL BEARING
intermediate
1шт.
15
3078967R1
BUSHING
bearing
1шт.
16
3129633R1
HOUSING
drive end
1шт.
17
3055738R1
BUSHING
drive end bearing
1шт.
18
3078974R1
SCREW
solenoid switch retaining
3шт.
19
3078963R1
SOLENOID SWITCH
1шт.
20
934075R1
LOCK WASHER,M10
2шт.
22
3132763R1
TERMINAL CONNECTOR
terminal
1шт.
23
931342R1
SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8
machine, pan slotted, 4 mm -0.7 x 6 mm
1шт.
24
3079174R1
HOLDER
brush
1шт.
25
3079420R1
SPRING
compression, brush
4шт.
26
3079170R1
BUSHING
commutator end
1шт.
27
3129632R91
END ASSY.
FRAME - commutator
1шт.
28
3079426R1
SCREW
fillister head, 5/16 inch
2шт.
29
3079177R1
CAP
commutator end frame
1шт.
30
3079359R1
KIT
brush set
1шт.
31
3079172R1
STUD
thru fixing
2шт.
32
3079176R1
WASHER
plain, thru fixing stud
2шт.
33
825-1406
NUT,M6, Cl 8
2шт.
34
3079173R91
KIT
KIT - terminal parts
1шт.
87297318
REMAN-STARTER
Remanufactured STARTER - NA Only
1шт.
87297319
CORE-STARTER
Return number - For N.A. only
1шт.
Выбрано товаров: 39
