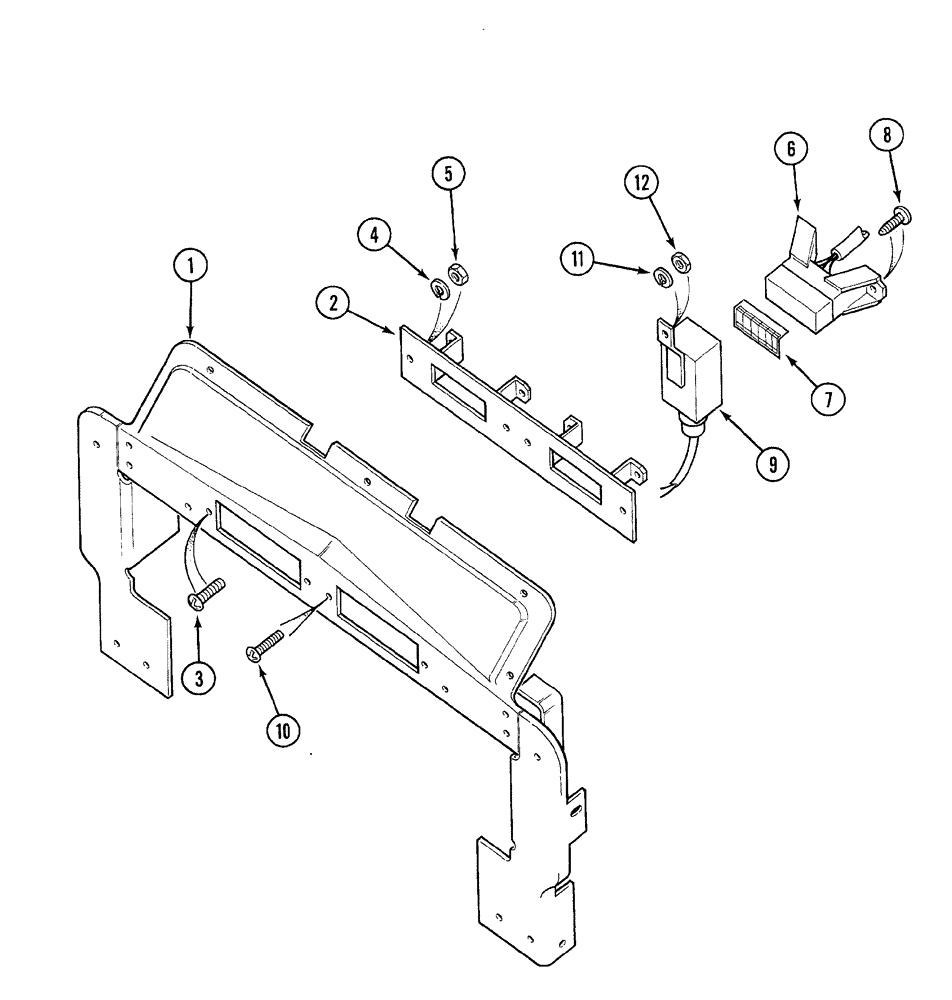

Запчасти Case 380B (4-10) - FUSE BOX/ FLASHER UNIT (03) - FUEL SYSTEM

1

1333010C1

PLATE

ASSEMBLY - instrument panel support (See Figure 9-10), fuse box

1шт.

2

1536401C1

PLATE ASSEMBLY - adaptor, fuse box mounting

1шт.

3

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

Fuse box

3шт.

4

492-11010

LOCK WASHER,#10

Fuse box

3шт.

5

225-14110

NUT,#10-24

Fuse box

3шт.

6

NSS

NOT SOLD SEPARAT

BOX - fuse (Order harness assembly 1537028C1)

1шт.

7

1536851C1

PRODUCT GRAPHIC

DECAL - fuse box symbols

1шт.

8

260-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

Fuse box

2шт.

9

1536091C1

FLASHER UNIT

warning lights (Pektron)

1шт.

10

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

Flasher unit

1шт.

11

492-11010

LOCK WASHER,#10

Flasher unit

1шт.

12

225-14110

NUT,#10-24

Flasher unit

1шт.
