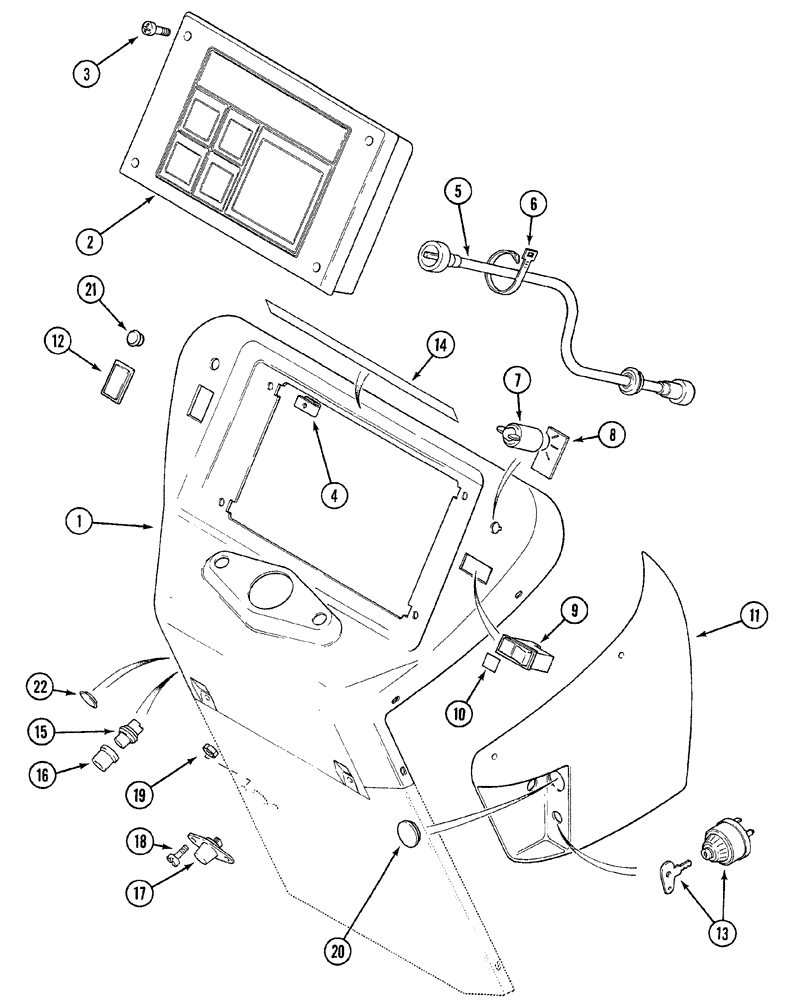

Запчасти Case 380B (4-08) - INSTRUMENTS AND SWITCHES (03) - FUEL SYSTEM

1

1536660C1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT HOUSING (See Figure 9-10)

1шт.

2

1536456C1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT ASSEMBLY

1шт.

3

260-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

4шт.

4

1536405C1

SPRING NUT

spring, J-type

4шт.

5

1536644C1

FLEXIBLE DRIVE SHAFT

CABLE - tacho drive

1шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

7

107200C2

LIGHT SWITCH

ASSEMBLY - headlight

1шт.

8

1265116C1

PRODUCT GRAPHIC

DECAL - light switch (See Figure 9-46)

1шт.

9

1983638C1

FLASHER SWITCH

rocker, turn signal

1шт.

10

1983639C1

SYMBOL

turn signal (Green)

1шт.

11

3121712R3

HOUSING

instrument panel side, right hand (See Figure 9-10)

1шт.

12

245918C1

LENS

PLUG - blanking, rocker switch

1шт.

13

529800R91

SWITCH ASSY

ignition, with key; Use With K962338 Key, Which Replaces 3110259R1 Key

1шт.

14

321-6770

DECAL

warning, PTO overspeed

1шт.

15

705266R1

SWITCH

horn

1шт.

16

1288026C1

COVER

horn switch

1шт.

17

397940R93

SWITCH

push button, ether start

1шт.

18

470-1106

SCREW,Slotted Pan Hd, #10-24 x 3/8"

2шт.

19

225-14110

NUT,#10-24

2шт.

20

538240R1

PLUG

blanking

1шт.

21

3112888R1

PLUG

blanking, 1/2 inch hole

1шт.

22

3114406R1

PLUG

blanking, 5/8 inch hole

1шт.

22

538239R1

PLUG

blanking, 3/4 inch hole

1шт.
