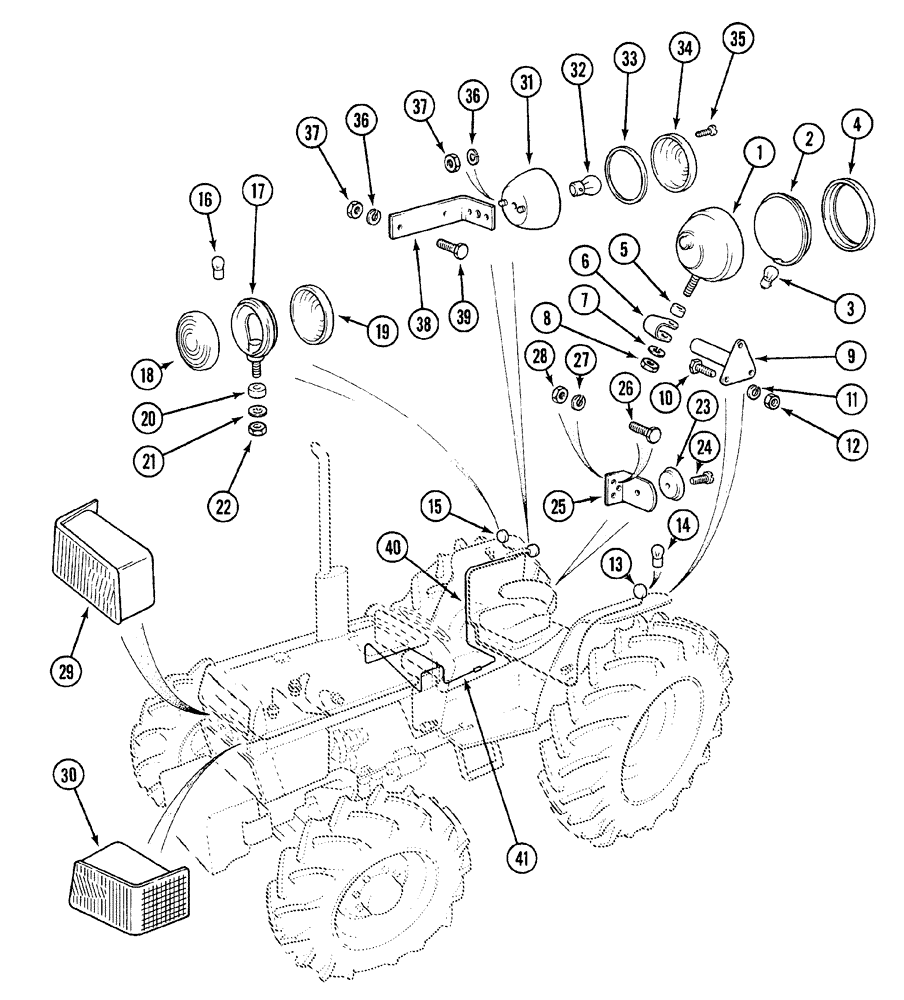

Запчасти Case 380B (4-04) - LIGHTS AND HARNESS (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
387729R92
LIGHT ASSY.
combination, stop and tail
1шт.
2
80627C1
LIGHT ASSY.
combination (Includes bulb)
1шт.
3
NLS
NO LONGER SERVICED
lamp, type C-6, trade No. 1141
1шт.
4
A25213
RETAINER
light, shockproof
1шт.
5
365503R1
SPACER
combination light
1шт.
6
350920R1
CLAMP
combination light
1шт.
7
80679
LOCK WASHER,1/20.507 CST ZND
1шт.
8
425-108
NUT,1/2" - 13, Gr 5
1шт.
9
401471R1
POST
ASSEMBLY - combination light
1шт.
10
413-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
3шт.
11
492-11038
LOCK WASHER,3/8"
3шт.
12
425-106
NUT,3/8"-16, Cl 5
3шт.
13
67538C92
HEADLIGHT
ASSEMBLY - flasher
2шт.
14
9417866
BULB,C6, #1156, 12.8V
1шт.
15
3123675R93
HEADLIGHT
ASSEMBLY - flasher, Serial Range: (Optional-67538C92)
2шт.
16
3025210R91
BULB
lamp, 12 volt/21 watt
1шт.
17
NSS
NOT SOLD SEPARAT
HOUSING - flasher light
1шт.
18
3112682R1
LENS
front, amber
1шт.
19
3112683R1
LENS
rear, amber
1шт.
20
899282R1
O-RING
sealing
2шт.
21
493-21046
LOCK WASHER,Int Tooth, 7/16"
1шт.
22
425-157
JAM NUT,Jam, 7/16"-20, G5
1шт.
23
3118665R2
REFLECTOR
red
2шт.
24
260-5458
SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"
2шт.
25
3125247R3
BRACKET
reflector mounting
2шт.
26
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
28
425-105
NUT,5/16"-18, G5
2шт.
29
1964881C1
HEADLIGHT
without bulb, right (See Figure 4-06)
1шт.
30
1964882C1
HEADLIGHT
without bulb, left (See Figure 4-06)
1шт.
31
967696R94
LAMP
LIGHT ASSEMBLY - combination, stop and tail
1шт.
32
T34857
BULB,C6, #1157, 12.8V
1шт.
33
81714R1
GASKET
combination light
1шт.
34
157729R1
LENS
combination light
1шт.
35
132764
SCREW,Sl Rnd Hd, #8 - 32 x 5/8"
2шт.
36
492-11025
LOCK WASHER,1/4"
4шт.
37
425-104
NUT,1/4"-20, Cl 5
4шт.
38
92053C1
SUPPORT
ASSEMBLY - combination light
1шт.
39
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
40
92064C1
HARNESS
ASSEMBLY - tail and stop light
1шт.
41
92063C1
HARNESS
ASSEMBLY - tail light panel
1шт.
Выбрано товаров: 41
