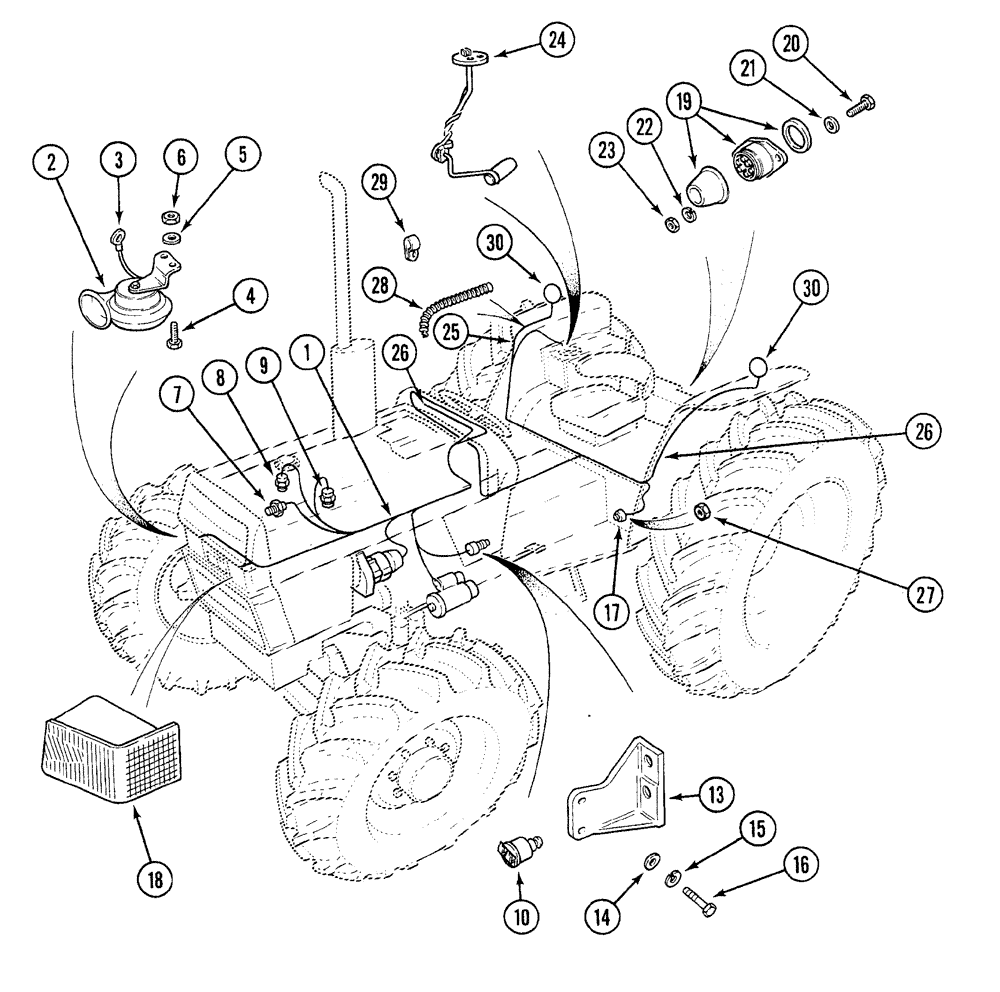

Запчасти Case 380B (4-02) - CHASSIS HARNESS AND SWITCHES (03) - FUEL SYSTEM

1

1537028C1

HARNESS

ASSEMBLY - main cable

1шт.

2

3121205R91

HORN

warning

1шт.

3

3117533R1

CABLE

, Serial Range: horn-earth

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

6

3119440R1

LOCK NUT

hex, self-locking, 1/4 inch NC

2шт.

7

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction

1шт.

8

3127956R1

TEMPERATURE SENDER

water temperature, Icknield

1шт.

9

91450C1

SWITCH, PRESSURE

PRESSURE SWITCH ASSY - Engine oil (On oil filter base)

1шт.

10

3072122R94

NEUTRAL START SWITCH

plunger, neutral starting

1шт.

13

1536664C1

SUPPORT

BRACKET - neutral starting switch

1шт.

14

95-11041

WASHER,3/8"

(13/32 x 13/16 x 1/16)

2шт.

15

92-11038

LOCK WASHER,3/8"

2шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

3147137R1

SWITCH

plunger, park brake warning

1шт.

18

REF

INSTRUCTION

LIGHT - head, without bulb (See Figure 4-06)

2шт.

19

121645C1

MULTIPOLE CONNECTOR,7 Pin

with boot 7 Pin

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

21

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

2шт.

22

492-11031

LOCK WASHER,5/16"

2шт.

23

125-10001

NUT,5/16"-18, G5

2шт.

24

3129841R91

FUEL GAUGE

TRANSMITTER Icknield (See Figure 3-18)

1шт.

25

3123678R2

HARNESS

fender, right hand

1шт.

26

3123677R1

HARNESS

fender, left hand

1шт.

27

1332725C1

NUT

NUT M18

1шт.

28

1536349C1

LOOM,11.5" ID, 15.5" OD, 318" Length

TUBE - insulated convolute conduit, 318 mm

1шт.

28

1536137C1

LOOM,11.5 mm ID, 15.5 mm OD, 635 mm Length

TUBE - insulated convolute conduit, 635 mm

1шт.

29

316433C1

CLAMP

CLIP - cable (Without ROPS)

2шт.

29

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

cable (With ROPS)

6шт.

30

REF

INSTRUCTION

LIGHT ASSEMBLY - flasher (See Figure 4-04)

2шт.
