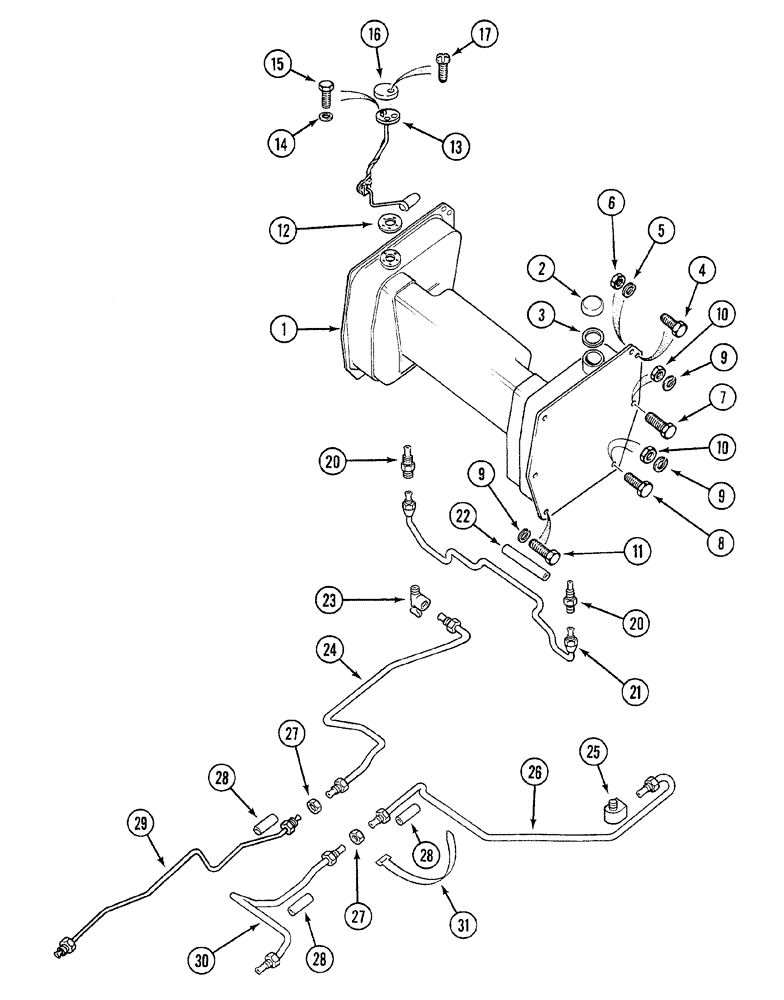

Запчасти Case 380B (3-18) - FUEL TANK AND FUEL LINES (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
536035R93
FUEL TANK
ASSEMBLY with filler cap
1шт.
2
536845R1
PLUG
CAP ASSEMBLY - fuel tank filler
1шт.
2
538063R1
PLUG
CAP ASSEMBLY - fuel tank filler, Serial Range: (Optional-536845R1)
1шт.
3
23977DD
GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk
fuel tank filler cap
1шт.
4
413-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
4шт.
5
492-11038
LOCK WASHER,3/8"
4шт.
6
425-106
NUT,3/8"-16, Cl 5
4шт.
7
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
8
413-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
6шт.
10
425-105
NUT,5/16"-18, G5
8шт.
11
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
12
528359R1
GASKET
sending unit
1шт.
13
3129841R91
FUEL GAUGE
TRANSMITTER - fuel gauge, Icknieid
1шт.
14
533199R1
SEALING WASHER
sending unit cover
4шт.
14
796002R1
COPPER WASHER
sending unit cover
1шт.
15
463-1108
SCREW,Hex Hd, #10-24 x 1/2"
4шт.
15
451625
SCREW
machine, hex head, No 10 NC x 1/2 inch
1шт.
16
528360R2
COVER
sending unit
1шт.
17
440-1106
SCREW,Cross Pan Hd, #10-24 x 3/8"
1шт.
20
1502069C1
PIPE
ASSEMBLY - clearance
2шт.
21
1502067C1
TUBE ASSY.
ASSEMBLY - crossover
1шт.
22
530107R1
FUEL HOSE,0.31" ID x 10.00"
Balance Tube Spacer
1шт.
23
528926R1
VALVE,1/2" - 20 x 3/8" - 18 NPTF
ASSEMBLY - shut-off
1шт.
24
3129561R1
PIPE,8 mm OD, 932.2, 259.1 mm Length
TUBE ASSEMBLY - union to shut-off valve
1шт.
25
137422
ELBOW
90 degree, rear fuel return tube
1шт.
26
3129262R1
PIPE
TUBE ASSEMBLY - rear, fuel return
1шт.
27
442337
NUT
UNION - straight, 5/16 inch inverted flare
3шт.
27
442395
FITTING
UNION - straight, 5/16 inch inverted flare, Serial Range: (Optional-442337)
2шт.
28
536009R1
FUEL HOSE,0.31" ID x 2.50"
Sleeve, Rubber, Spacer
3шт.
29
3116238R3
PIPE,787.4, 142.24 mm Length
TUBE ASSEMBLY - union to filter
1шт.
30
3112790R1
PIPE
ASSEMBLY - front, fuel return
1шт.
31
289862C1
CABLE TIE,3/16" x 7"
CABLE STRAP 1.75 max bundle
3шт.
Выбрано товаров: 33
