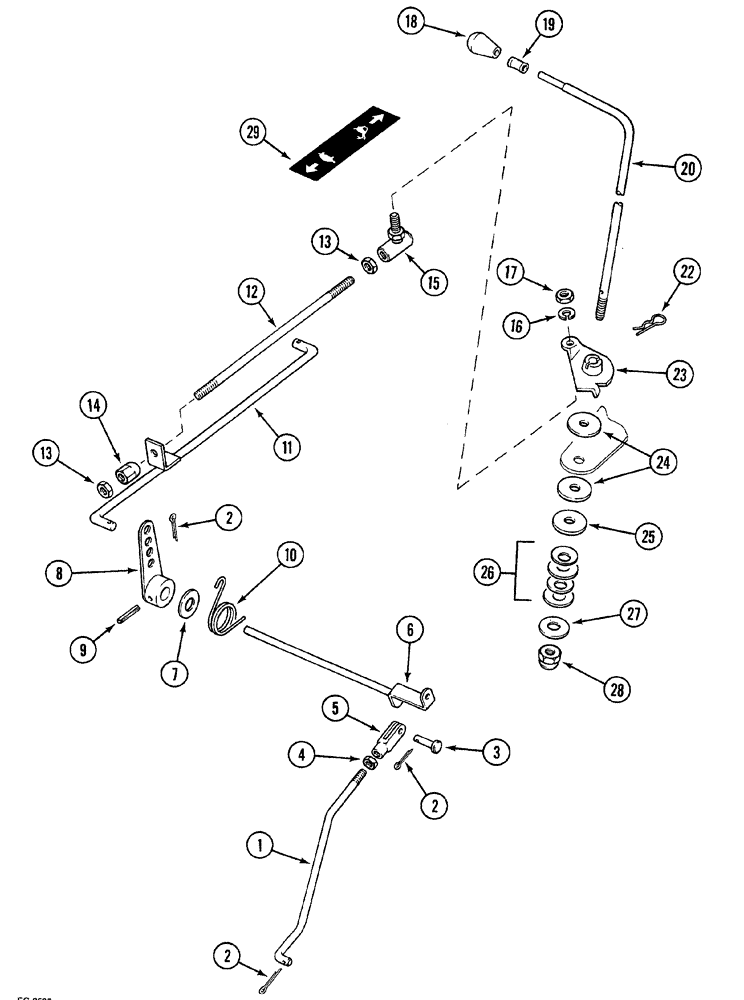

Запчасти Case 380B (3-16) - GOVERNOR CONTROL (03) - FUEL SYSTEM

1

1332914C2

ROD

front, governor control

1шт.

2

32-48

COTTER PIN,1/16" x 1/2"

3шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN

1шт.

4

25-154

JAM NUT,Jam, 1/4"-28, G5

Hex

1шт.

5

213-124

ADJUSTABLE CLEVIS,1/4"-28

1шт.

5

1500842C1

YOKE

UNIVERSAL JOINT YOKE CLEVIS - adjustable, Serial Range: (Optional-116534)

1шт.

6

528325R2

ARM

ASSEMBLY - idler, governor control

1шт.

7

95-51041

WASHER,3/8" x 7/8" x .083"

flat, 13/32 x 3/4 x 3/64 inch

1шт.

7

95-81080

WASHER,13/32" x 3/4" x .120"

1шт.

8

539572R3

LEVER ASSY.

idler arm

1шт.

9

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

10

539012R1

SPRING

torsion

1шт.

11

528767R1

ROD ASSY.

pull, bellcrank

1шт.

12

528775R3

ROD

pick-up, foot accelerator

1шт.

13

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

14

528776R1

NUT

swivel, foot accelerator pick-up rod

1шт.

15

191474

BALL JOINT

1/4 inch NF, type C (For optional ball-joints see Figure 3-14)

1шт.

16

492-11025

LOCK WASHER,1/4"

1шт.

17

425-114

NUT,1/4"-28, G5

1шт.

18

1536683C1

HANDLE GRIP

KNOB ASSEMBLY - control handle

1шт.

19

1536684C1

SPACER

RING - star, tolerence

1шт.

20

3121391R3

ROD

governor control handle

1шт.

22

720631R1

LINCH PIN

cotter, quick attachable

1шт.

23

528291R3

ARM ASSY.

governor control rod

1шт.

24

3123275R1

FRICTION WASHER

DISC governor control

2шт.

25

1332789C1

PLATE

friction, backing

1шт.

26

1500778C1

DISC

spring, 24.4 x 12.9 x 0.90 mm

4шт.

27

495-81022

WASHER,17/32" x 1 1/8" x .060"

flat, 17/32 x 1-1/4 x 3/64 inch

1шт.

28

894980H1

LOCK NUT

hex, self locking, 1/2 inch NF

1шт.

29

533592R1

PRODUCT GRAPHIC

DECAL - governor control

1шт.
