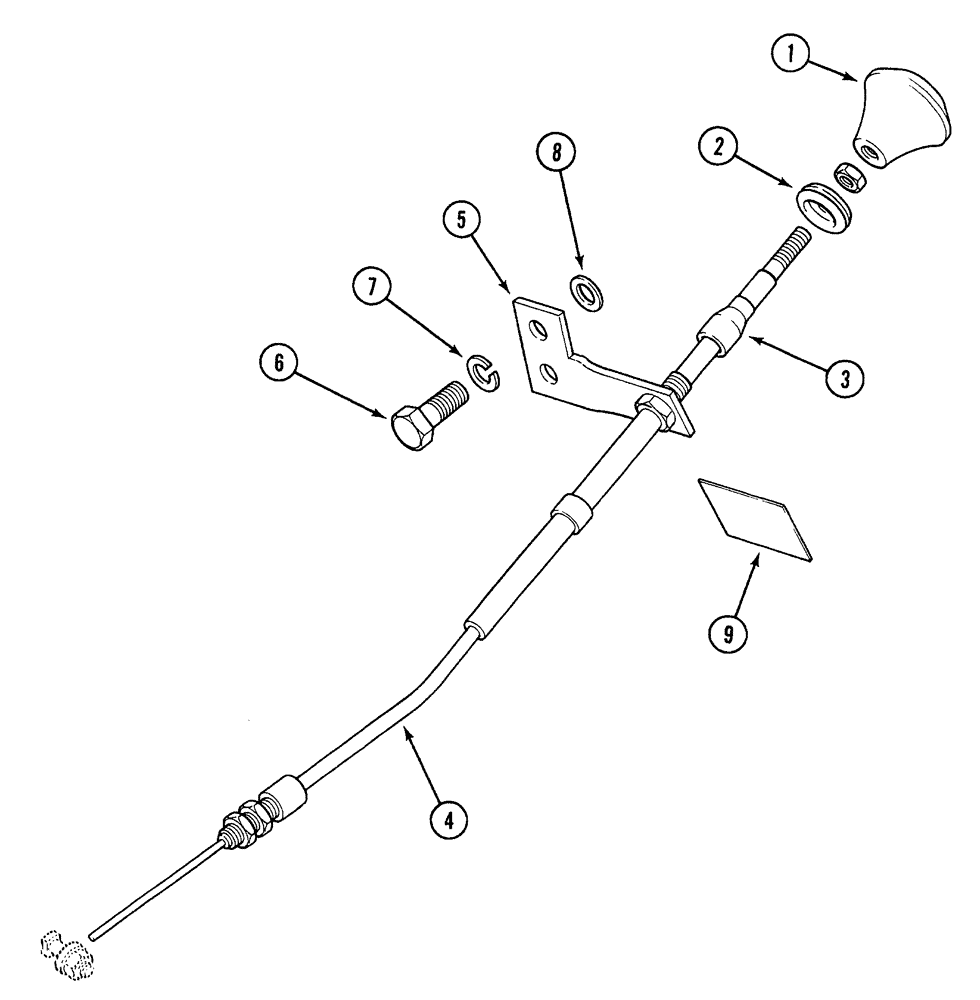

Запчасти Case 380B (3-12) - FUEL SHUT-OFF CONTROL (03) - FUEL SYSTEM

1

3221357R1

BUTTON

KNOB - fuel shut-off control

1шт.

2

1333007C1

GROMMET

diaphram, 3/4 inch

1шт.

3

1288353C1

BOOT

rubber

1шт.

4

1333000C1

CABLE ASSY.

fuel shut-off control

1шт.

5

1536068C1

SUPPORT

BRACKET - mounting, fuel shut-off cable

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

9

1333014C1

DECAL

fuel control (See Figure 9-46)

1шт.

10

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.
