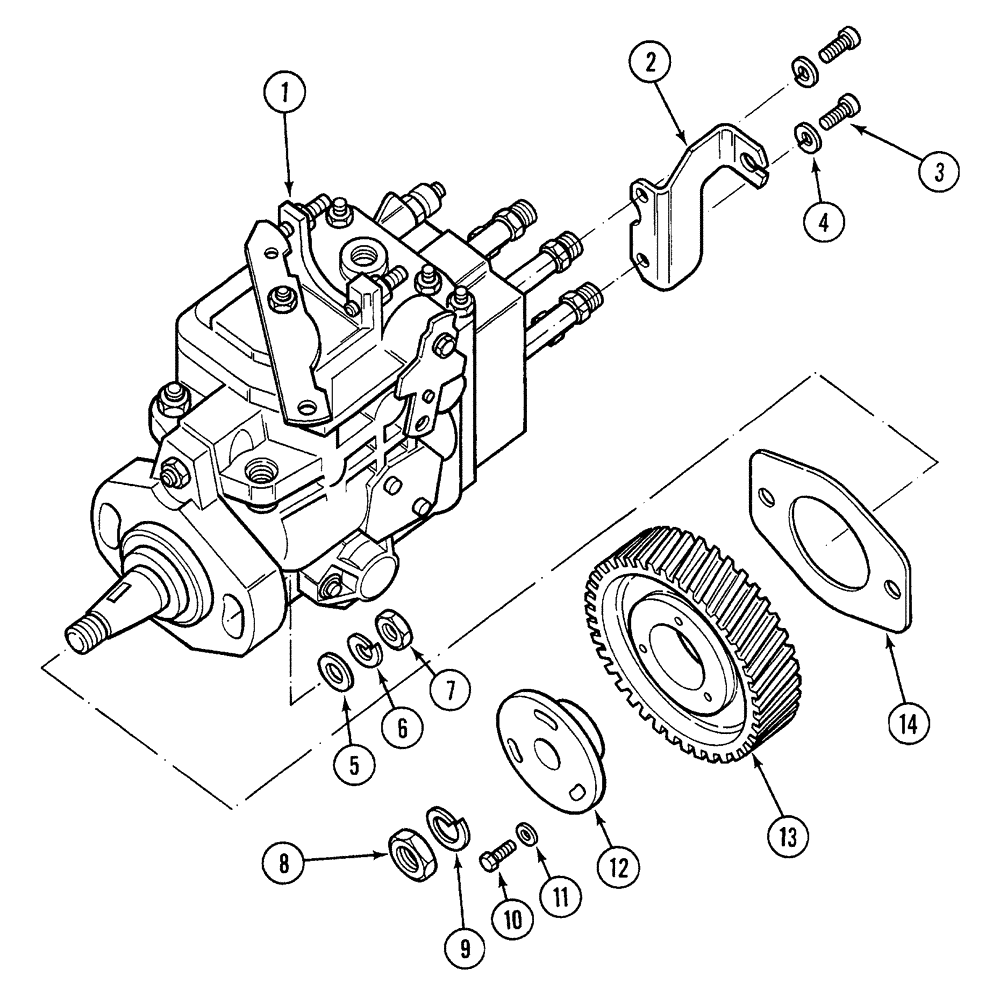

Запчасти Case 380B (3-10) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

1

1329100C91

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel (VE 3/1 OF 1090 R276/2)

1шт.

2

3218939R1

BRACKET

support, fuel shut-off cable

1шт.

3

930679R1

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

4

905176R1

WAVE WASHER,M6.4 ID x 11 OD x .5 Thk

Lock

2шт.

5

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat, 5/16 inch

2шт.

6

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

933981R1

NUT,M12 x 1.75, Cl 5

Hex

1шт.

9

892-10012

LOCK WASHER,M12

1шт.

10

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

3шт.

11

896-16008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

12

3055067R2

HUB

injection pump gear

1шт.

13

3056885R3

PINION

GEAR - injection pump

1шт.

14

3055384R2

GASKET

fuel injection pump

1шт.
