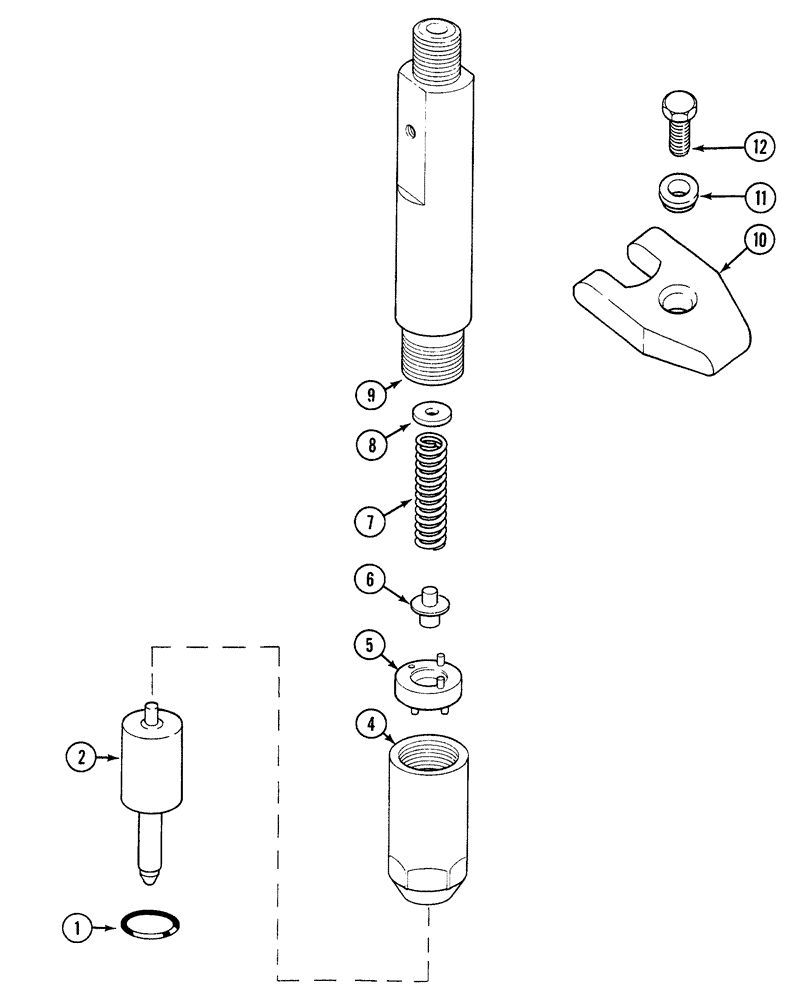

Запчасти Case 380B (3-08) - FUEL INJECTION NOZZLE (03) - FUEL SYSTEM

1

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

injection nozzle

3шт.

2

3218248R2

NOZZLE CAP

3шт.

3218247R92

HOLDER

injection nozzle

3шт.

4

3218388R1

NUT

nozzle cap

1шт.

5

3218387R1

SPACER

nozzle holder

1шт.

6

3218386R2

SPACER

pressure

1шт.

7

3218385R2

SPRING

compression

1шт.

8

3218657R1

SHIM

0.500 mm

1шт.

8

3218658R1

SHIM

0.525 mm

1шт.

8

3218659R1

SHIM

0.550 mm

1шт.

8

3218660R1

SHIM

0.575 mm

1шт.

8

3218661R1

SHIM

0.600 mm

1шт.

8

3218662R1

SHIM

0.700 mm

1шт.

8

3218663R1

SHIM

0.800 mm

1шт.

8

3218664R1

SHIM

0.900 mm

1шт.

9

3218389R1

BODY

nozzle holder

1шт.

10

3218128R1

RETAINER

fuel injection nozzle

3шт.

11

3218129R1

WASHER

retainer bolt

3шт.

12

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

3шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets (Includes: Ref. 1) (See Figure 2-46)

1шт.
