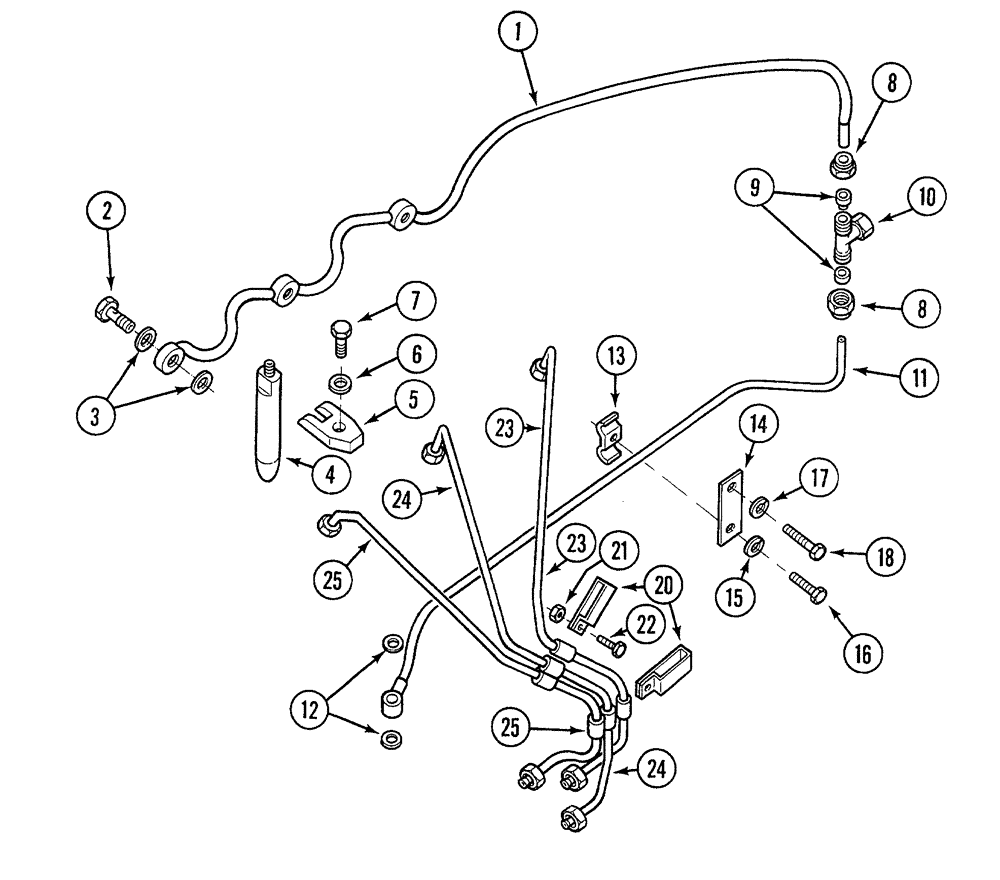

Запчасти Case 380B (3-06) - FUEL INJECTION TUBES (03) - FUEL SYSTEM

1

1967073C1

HOSE

line leak

1шт.

2

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

hollow, inlet union

3шт.

3

933696R1

SEALING RING,M6 x 10 x 1

6шт.

4

REF

INSTRUCTION

NOZZLE - fuel injection (See Figure 3-08)

3шт.

5

3218128R1

RETAINER

fuel injection nozzle

3шт.

6

3218129R1

WASHER

retainer bolt

3шт.

7

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

3шт.

8

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

coupling

2шт.

9

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

compression

2шт.

10

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

TEE - special

1шт.

11

1329102C1

LINE

TUBE overflow

1шт.

12

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

13

3055386R1

CLAMP

CLIP - fuel line

1шт.

14

3132174R1

LINK

fuel line clamping

1шт.

15

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

1шт.

16

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

17

92-11038

LOCK WASHER,3/8"

1шт.

18

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

20

3132766R1

CLAMP

pipe

2шт.

20

3218242R1

CLAMP

pipe, Serial Range: (Optional-3132766R1)

2шт.

21

825-1406

NUT,M6, Cl 8

2шт.

22

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

2шт.

23

3218138R1

FUEL TUBE

TUBE - injection, No. 3 cylinder

1шт.

24

3218137R1

FUEL TUBE

TUBE - injection, No. 2 cylinder

1шт.

25

3218136R1

PIPE

TUBE - injection, No. 1 cylinder

1шт.
