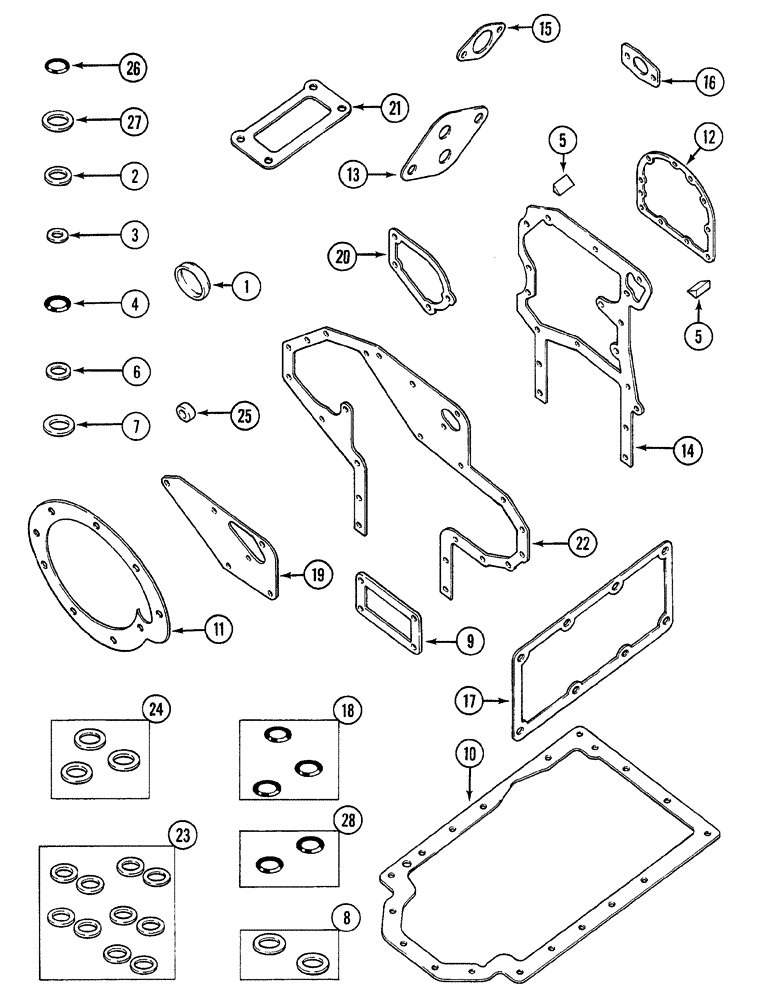

Запчасти Case 380B (2-48) - ENGINE SERVICE KIT - CRANKCASE GASKETS (02) - ENGINE

3136803R98

GASKET KIT

service, crankcase

1шт.

1

41-3044

PLUG,Exp, 2 3/4"

expansion, 2-3/4 inch

1шт.

2

933222R1

SEALING WASHER,M18 x 22 x 1.5

1шт.

3

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

1шт.

4

713778R1

O-RING,3mm Thk x 55mm ID

55 x 61 mm

1шт.

5

714868R1

SEALING STRIP

sealing

2шт.

6

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

1шт.

7

933608R1

SEALING RING,M26 x 31 x 2

1шт.

8

3138687R2

SEALING RING,M8 x 11.5 x 1.5

2шт.

9

3138640R1

GASKET

injection pump cover

1шт.

10

3055160R3

OIL PAN GASKET SET

oil pan

1шт.

11

3055177R3

GASKET

water pump

1шт.

12

3055215R3

GASKET

crankcase oil seal retainer

1шт.

13

3055237R2

GASKET

oil filter socket

1шт.

14

3055239R3

GASKET

front plate

1шт.

15

3138639R1

GASKET

crankcase breather

1шт.

16

3055384R1

GASKET

fuel injection pump

1шт.

17

3055394R3

GASKET

side cover

1шт.

18

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

oil pump sealing

3шт.

19

3055999R3

GASKET

water pump carrier

1шт.

20

3132541R2

GASKET

closing cover

1шт.

21

3136248R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

1шт.

22

3055994R3

GASKET

crankcase front cover

1шт.

23

933610R1

SEALING RING,M14 x 18 x 1.8

10шт.

24

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

3шт.

25

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

radial lip

1шт.

27

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

sealing

1шт.

28

3132869R1

O-RING

sealing

2шт.
