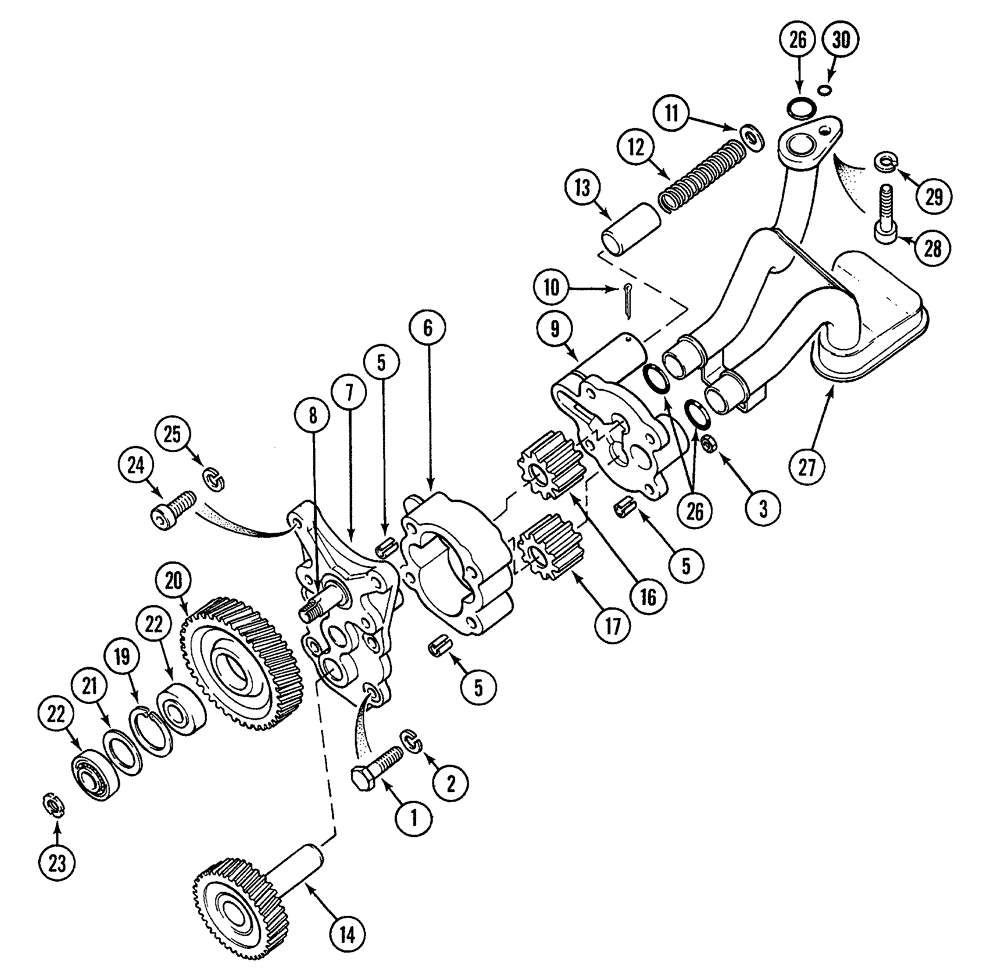

Запчасти Case 380B (2-42) - OIL PUMP (02) - ENGINE

3136429R95

PUMP, ENGINE OIL

ASSEMBLY

1шт.

1

13-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

4шт.

2

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

4шт.

3

9635082

NUT,5/16" - 18, Gr 5

4шт.

3136435R95

HOUSING ASSY.

CARRIER ASSEMBLY - oil pump

1шт.

5

932597R1

LOCK PIN,M10 x 14, Slotted

Spring

3шт.

6

NSS

NOT SOLD SEPARAT

CASE - oil pump gear (Order carrier 3136435R95)

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER - oil pump gear (Order carrier 3136435R95)

1шт.

8

3055297R5

AXLE

SHAFT - oil pump idler gear

1шт.

9

NSS

NOT SOLD SEPARAT

COVER - oil pump (Order carrier 3136435R95)

1шт.

10

32-844

PIN, SPLIT (COTTER)

PIN, COTTER 1/8 x 1-1/2 inch

1шт.

11

3139620R1

SPRING WASHER

spring retaining

1шт.

12

3136264R1

SPRING

pressure relief valve

1шт.

13

3055202R2

VALVE

piston relief

1шт.

14

3136437R91

PINION

GEAR - oil pump drive

1шт.

3136440R91

GEAR-SET

oil pump

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - oil pump idler (Order gear set 3136440R91)

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - oil pump (Order gear set 3136440R91)

1шт.

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - oil pump idler (Order component parts)

1шт.

19

933579R1

SNAP RING,M35, Int

Retaining

1шт.

20

3055291R1

PINION

GEAR - oil pump idler

1шт.

21

3055292R1

WASHER

WASHER - thrust

1шт.

22

3055294R91

TAPERED BEARING

taper

2шт.

23

3228141R1

LOCK NUT

lock

1шт.

24

61-33116

HEX SOC SCREW,5/16"-18 x 1"

4шт.

25

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

4шт.

26

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

oil pump sealing

3шт.

Part of Crankcase Gaskets Service Kit

1шт.

27

1806888C1

PIPE ASSY.

oil pressure and suction

1шт.

28

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

29

3050129R1

LOCK WASHER

WASHER -lock, 5/16 inch

1шт.

30

717222R1

O-RING

Sealing, oil pump

1шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets (Includes: Ref. 26) (See Figure 2-48)

1шт.
