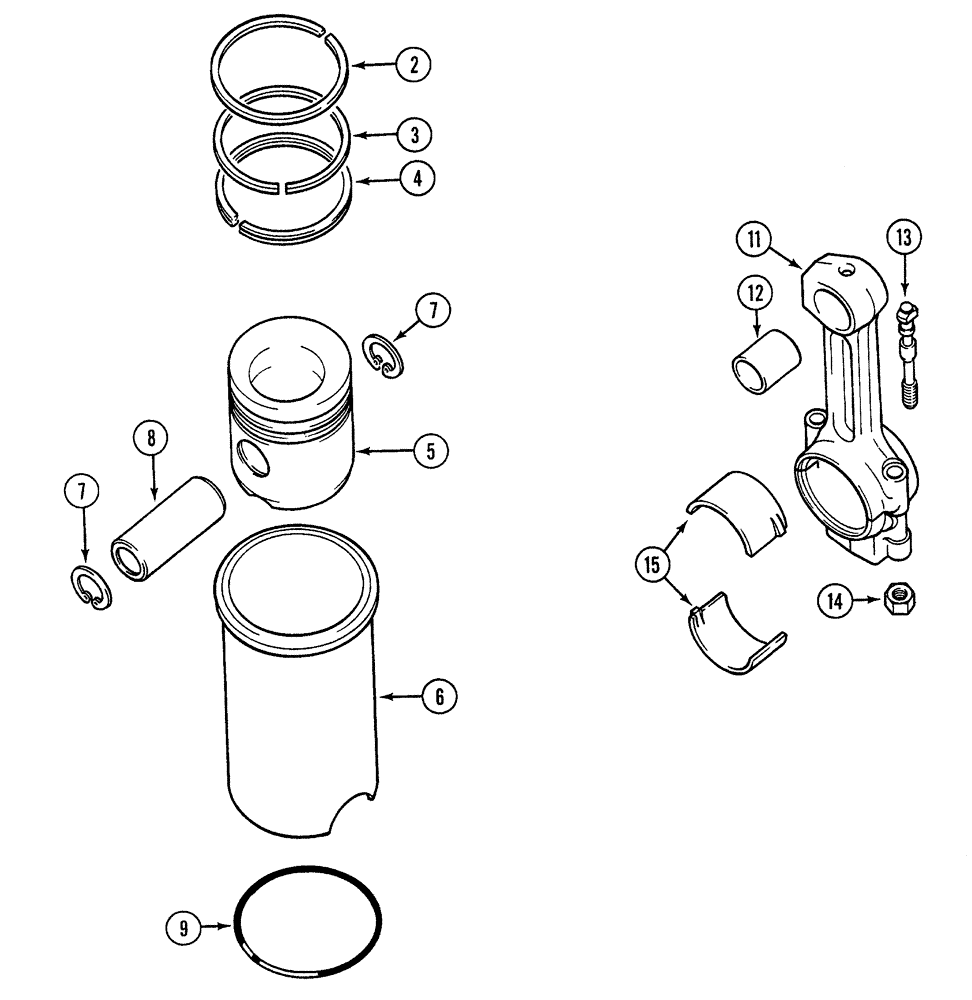

Запчасти Case 380B (2-38) - PISTONS AND SLEEVES/ CONNECTING RODS (02) - ENGINE

3218759R95

SLEEVE ASSY

PISTON

3шт.

3218416R92

PISTON RING SET

KIT

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, first, pistons and sleeves

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, second, pistons and sleeves

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil control, pistons and sleeves

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - engine

1шт.

6

3139592R4

SLEEVE CYLINDER

1шт.

7

933327R1

SNAP RING,M36, Int

retaining, pistons and sleeves

2шт.

8

3055217R2

PISTON PIN

piston

1шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

packing, cylinder sleeve

3шт.

1967032C1

CONNECTING ROD

ASSEMBLY

3шт.

11

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

12

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

piston pin

1шт.

13

3055033R11

BOLT

Connecting rod, with nut

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - connecting rod bolt

2шт.

15

3055351R91

BEARING ASSY

connecting rod, standard size

3шт.
