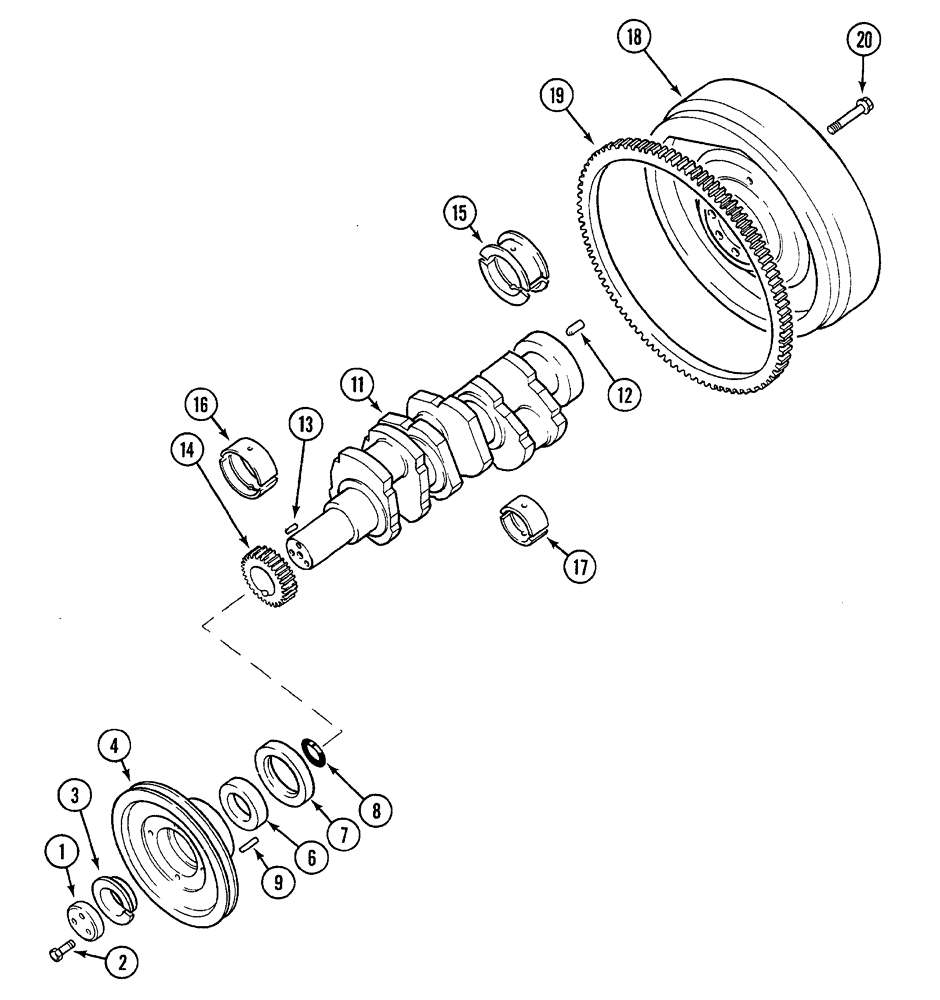

Запчасти Case 380B (2-36) - CRANKSHAFT AND BEARINGS/ FLYWHEEL (02) - ENGINE

1

3055154R1

WASHER

pressure, crankshaft and bearings

1шт.

2

26-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 8

Crankshaft and bearings

3шт.

3

3138874R1

BEARING WASHER

RING crankshaft and bearings

1шт.

4

1808484C1

PULLEY

crankshaft and bearings

1шт.

3228133R93

SEAL KIT

service, crankshaft oil seal

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - distance, crankshaft and bearings

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - crankshaft front

1шт.

8

713778R1

O-RING,3mm Thk x 55mm ID

55 x 61 mm, crankshaft and bearings

1шт.

Part of Crankcase Gaskets Service Kit

1шт.

9

932681R1

DOWEL,4mm OD x 24mm L

Pin, Crankshaft and bearings

1шт.

9

932224R1

DOWEL,M4 x 32, Oval

Crankshaft and bearings

1шт.

9

932652R1

DOWEL,4mm OD x 28mm L

Crankshaft and bearings

1шт.

3055782R92

CRANKSHAFT BEARING

ASSEMBLY - with bearings

1шт.

1329193C1

CRANKSHAFT BEARING

ASSEMBLY - with bearings, Serial Range: (Optional-3055782R92)

1шт.

11

NSS

NOT SOLD SEPARAT

CRANKSHAFT ASSEMBLY - standard

1шт.

12

37-2614

DOWEL,3/8" x 7/8"

PIN 3/8 x 7/8 inch, crankshaft and bearings

1шт.

13

932169R1

LOCK PIN,M4 x 10, Slotted

Spring, Crankshaft and bearings

1шт.

14

3055028R1

PINION

GEAR crankshaft, 33 teeth

1шт.

15

3055129R21

CRANKSHAFT BEARING

main, standard size

1шт.

16

3055130R21

CRANKSHAFT BEARING

main, standard size

3шт.

17

3055351R91

BEARING ASSY

connecting rod, standard size

3шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets (Includes: Ref. 8) (See Figure 2-48)

1шт.

18

1329084C1

ENGINE FLYWHEEL

ASSEMBLY - engine

1шт.

19

60883H

RING GEAR

flywheel

1шт.

20

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

Flywheel mounting

7шт.
