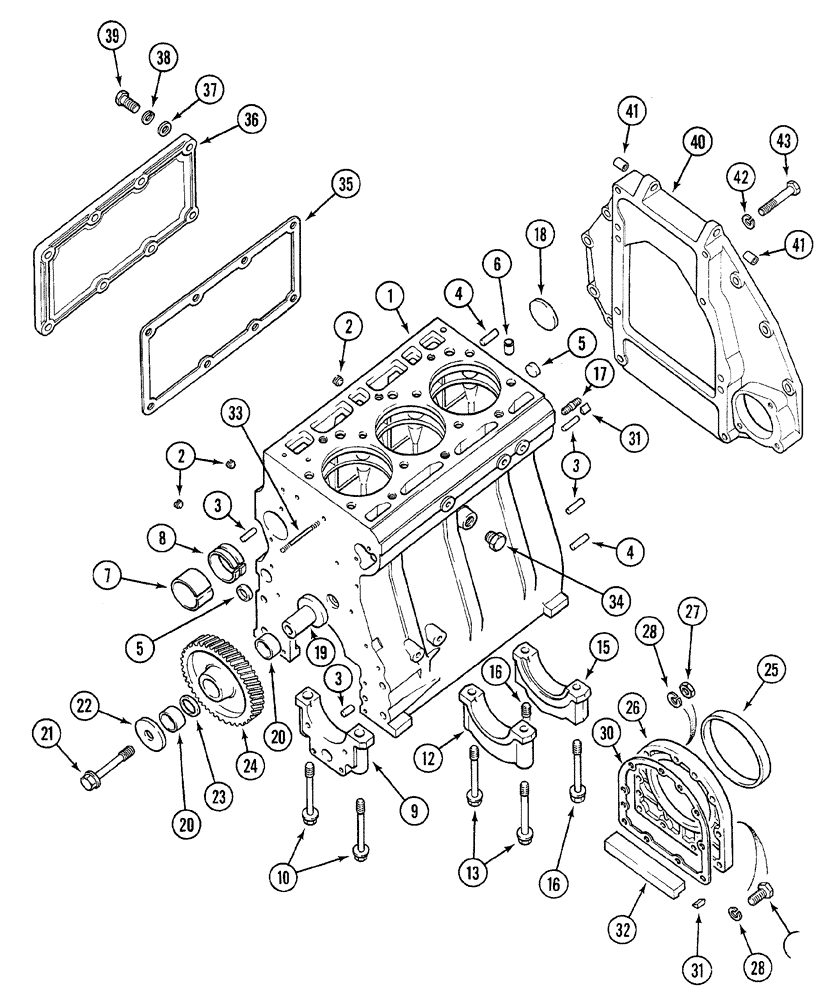

Запчасти Case 380B (2-32) - CYLINDER BLOCK, SIDE COVER AND FLYWHEEL HOUSING (02) - ENGINE

1

3055001R37

CRANKCASE

BLOCK ASSEMBLY - cylinder

1шт.

2

3144520R1

PLUG

slotted headless pipe

3шт.

3

37-2614

DOWEL,3/8" x 7/8"

PIN 3/8 x 7/8 inch

4шт.

4

141284

PIN,25.4mm OD x 31.75mm L

2шт.

5

933537R1

PLUG,M25, Conical

cup

2шт.

6

3055007R1

BUSHING

dowel

2шт.

7

3055008R2

CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W

camshaft, front

1шт.

8

1806820C1

CAMSHAFT BEARING,57.98mm ID x 63mm OD x 18mm W

camshaft

3шт.

9

NSS

NOT SOLD SEPARAT

CAP - front crankshaft bearing

1шт.

10

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

Bearing cap

2шт.

3144438R91

BEARING ASSY

KIT - service, bearing cap

2шт.

12

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing

1шт.

13

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

Bearing cap

2шт.

3144436R91

CRANKSHAFT BEARING

KIT - service, rear main bearing cap

1шт.

15

NSS

NOT SOLD SEPARAT

CAP - rear crankshaft bearing

1шт.

16

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

Bearing cap

2шт.

17

3055270R1

STUD

rear

1шт.

18

41-3044

PLUG,Exp, 2 3/4"

expansion, 2-3/4 inch

1шт.

Part of Crankcase Gaskets Service Kit

1шт.

19

3055373R1

CARRIER

idler gear

1шт.

20

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

2шт.

20

3136515R91

BEARING

needle, Serial Range: (Optional-3058816R91)

2шт.

21

3055374R2

BOLT

idler gear carrier

1шт.

22

3055372R1

DISC

RING - anti-wear, idler gear

1шт.

23

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING - distance

1шт.

24

3055043R3

PINION

GEAR - idler, 68 teeth

1шт.

25

3138701R91

SEAL

crankcase rear

1шт.

26

3055216R1

RETAINER

oil seal

1шт.

27

9635082

NUT,5/16" - 18, Gr 5

1шт.

28

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16")

9шт.

29

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

30

3055215R3

GASKET

crankcase oil seal retainer

1шт.

Part of Crankcase Gaskets Service Kit

1шт.

31

714868R1

SEALING STRIP

sealing

2шт.

Part of Crankcase Gaskets Service Kit

1шт.

32

3055214R1

SUPPORT

crankcase sealing

1шт.

33

3055989R1

STUD

crankcase front

1шт.

34

20990R1

PLUG

hex, 3/8 inch PT

1шт.

35

3055394R3

GASKET

side cover

1шт.

Part of Crankcase Gaskets Service Kit

1шт.

36

3132815R2

COVER

cylinder block side

1шт.

37

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat, 5/16 inch

8шт.

38

3050129R1

LOCK WASHER

WASHER -lock, 5/16 inch

8шт.

39

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

40

3136059R22

PLATE ASSY.

HOUSING flywheel

1шт.

41

3136060R2

BUSHING

flywheel housing

2шт.

42

3050128R1

LOCK WASHER

Lock

4шт.

43

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets (Includes: Ref. 18, 30, 31 and 35) (See Figure 2-48)

1шт.
