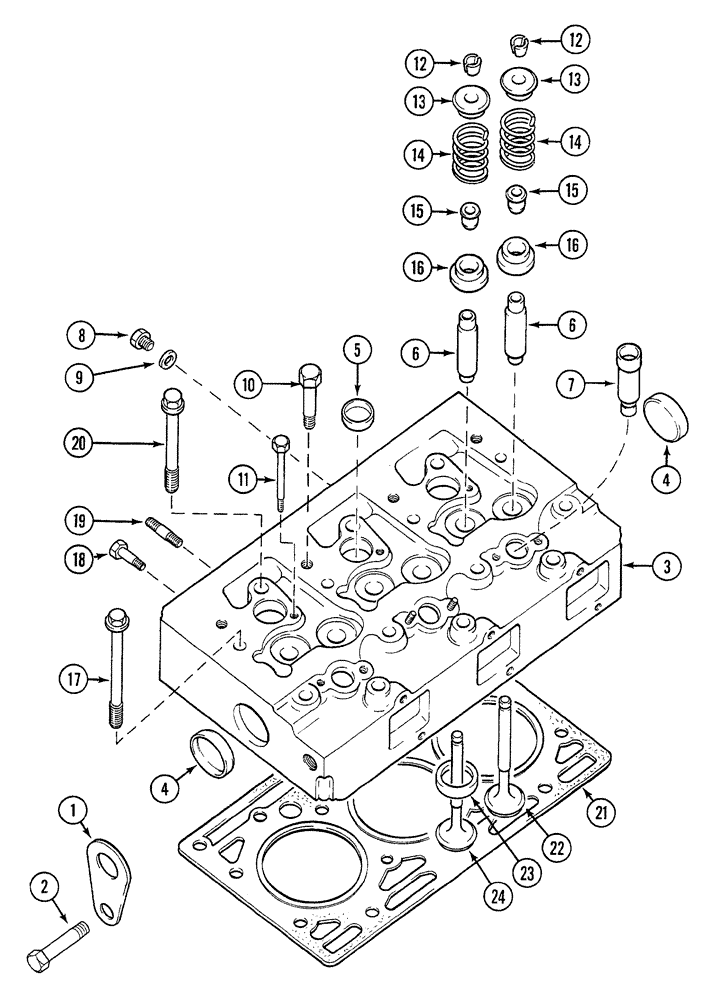

Запчасти Case 380B (2-28) - CYLINDER HEAD (02) - ENGINE

1

3055370R1

STIRRUP

SHACKLE - engine mounting, front

1шт.

2

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

1шт.

3

3055366R96

HEAD (CYLINDER)

1шт.

4

934003R1

PLUG,M52, Conical

expansion

2шт.

5

933537R1

PLUG,M25, Conical

cup

3шт.

6

3055022R2

VALVE GUIDE

valve stem

6шт.

7

3055344R1

SLEEVE

INSERT - nozzle holder

3шт.

8

934259R1

PLUG,Hex, M10 x 1

1шт.

9

718743R1

SEALING RING,M10 x 16 x 1

Ring

1шт.

10

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(Rocker shaft bracket)

4шт.

11

13-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

(Valve cover)

2шт.

12

3055057R91

ROCKER ARM COTTER

KEY - spring lock valve

12шт.

13

3055058R2

SPRING CUP

CAP - valve spring retainer

6шт.

14

3055060R1

SPRING

valve

6шт.

15

3218399R91

GASKET KIT

valve stem seal

6шт.

Part of Cylinder Head Gaskets Service Kit

1шт.

16

3055059R91

CAP

ROTATOR - valve

6шт.

17

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

hex, cylinder head

8шт.

18

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Water collecting manifold

6шт.

19

3055663R1

STUD

exhaust manifold

6шт.

20

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

hex, special, cylinder head

6шт.

21

3228361R2

CYLINDER HEAD GASKET

cylinder head

1шт.

Part of Cylinder Head Gaskets Service Kit

1шт.

22

3055055R2

OVERSIZE INLET VALVE

3шт.

23

3132361R1

INSERT

INSERT - seat, exhaust valve, 0.016 inch (0 40 mm) oversize

3шт.

23

3132362R1

VALVE SEAT

INSERT - seat, exhaust valve, 0.006 inch (0 15 mm) oversize

3шт.

24

3055056R2

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

3шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets (Includes: Ref. 15 and 21) (See Figure 2-46)

1шт.
