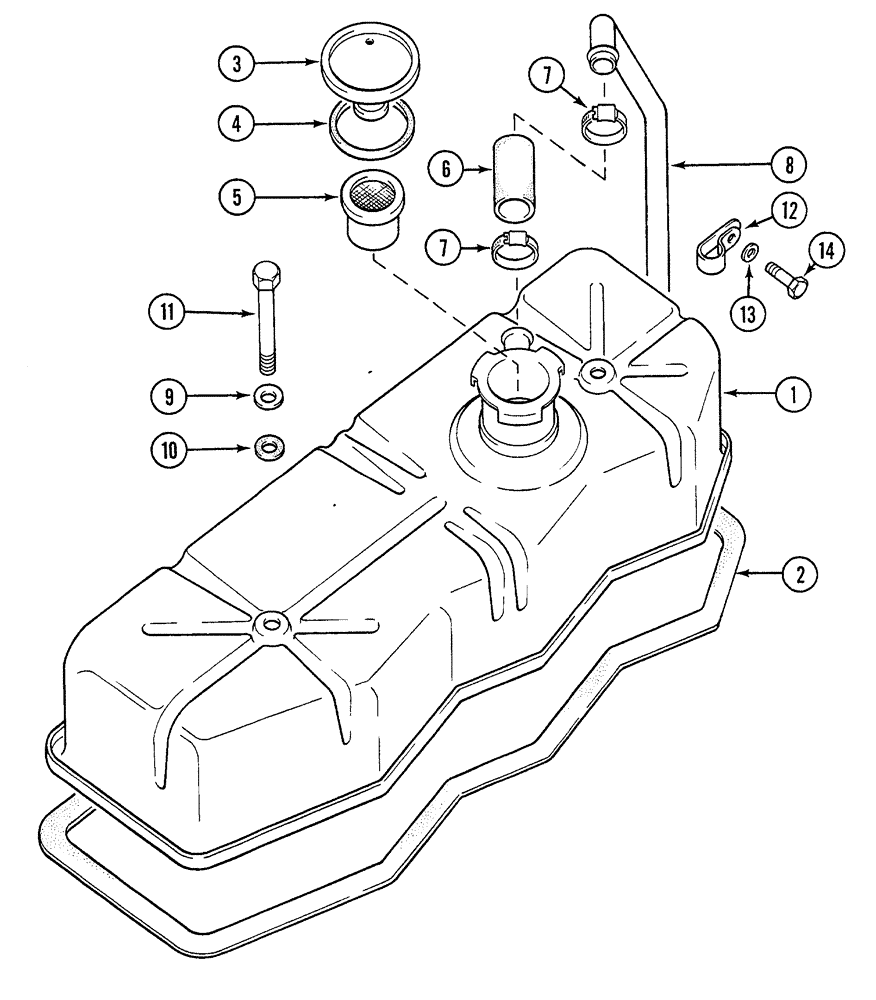

Запчасти Case 380B (2-24) - VALVE HOUSING COVER (02) - ENGINE

1

3136358R13

COVER

valve housing

1шт.

2

3138641R1

GASKET

valve housing cover

1шт.

Part of Cylinder Head Gaskets Service Kit

1шт.

3

3136337R91

COVER

CAP ASSEMBLY - breather

1шт.

4

3136338R1

GASKET,45mm ID x 68mm OD x 2.3mm Thk

breather cap

1шт.

5

3136336R1

FILTER

STRAINER - insert, breather

1шт.

6

1806928C1

HOSE

connecting

1шт.

7

3143364R1

CLAMP,19mm - 23mm

hose

2шт.

8

1806921C2

TUBE,18 mm OD

breather

1шт.

9

3138637R1

CUP WASHER

WASHER - valve cover

2шт.

10

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

valve cover

2шт.

Part of Cylinder Head Gaskets Service Kit

1шт.

11

13-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

2шт.

12

1808195C1

CLAMP

breather tube

1шт.

13

396-21059

WASHER,0.59" ID x 1.19" OD x 0.13" Thk

flat, hardened, 9/16 inch

1шт.

14

25827R1

BOLT,Hex, 9/16" - 12 x 1", Gr 8

1шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets (Includes: Ref. 2 and 10) (See Figure 2-46)

1шт.
