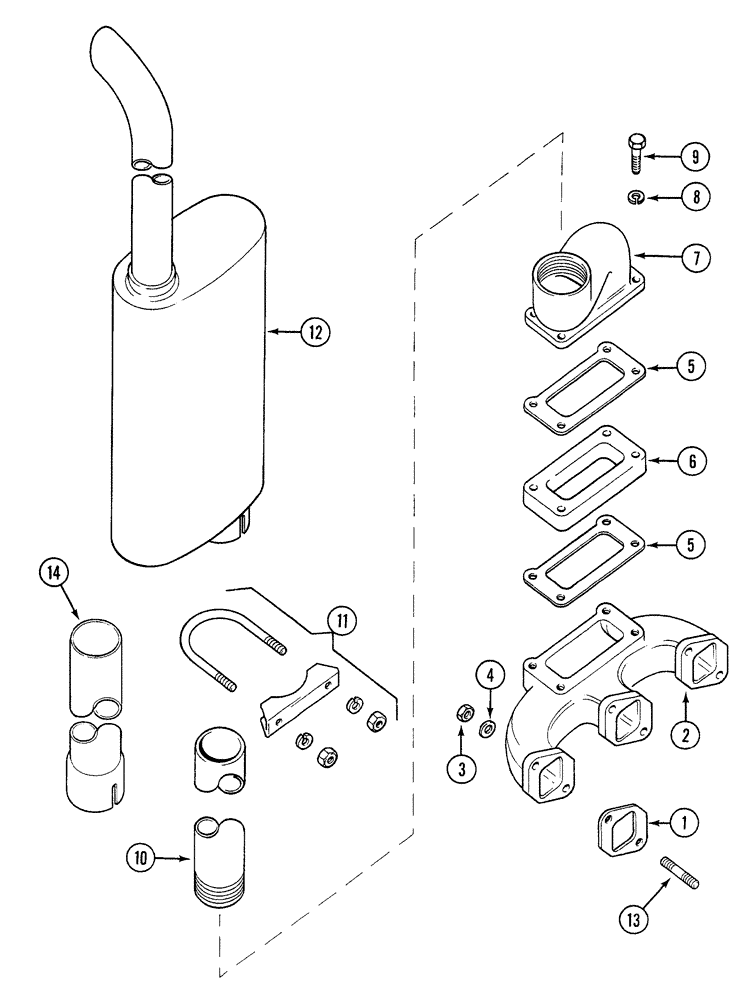

Запчасти Case 380B (2-20) - VERTICAL EXHAUST (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

3шт.

Part of Cylinder Head Gaskets Service Kit

1шт.

2

3121373R3

MANIFOLD

exhaust

1шт.

3

129-123

NUT,3/8"-24, G5

6шт.

4

95-81080

WASHER,13/32" x 3/4" x .120"

6шт.

5

3136248R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

2шт.

6

3125792R1

SPACER

exhaust manifold

1шт.

7

3136250R1

ELBOW

exhaust manifold

1шт.

8

92-11038

LOCK WASHER,3/8"

4шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

80547C1

TUBE

KIT - service, exhaust pipe

1шт.

10

NSS

NOT SOLD SEPARAT

PIPE - exhaust

1шт.

11

1502294C1

CLAMP

muffler, U-type

1шт.

12

83027C1

MUFFLER

exhaust, curved end

1шт.

12

83028C1

MUFFLER

exhaust, curved end, Serial Range: (Optional-83027C1)

1шт.

13

3055663R1

STUD

exhaust manifold

6шт.

14

379661R1

PIPE

EXTENSION - exhaust (With ROPS canopy)

1шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets (Includes: Ref. 1) (See Figure 2-46)

1шт.
