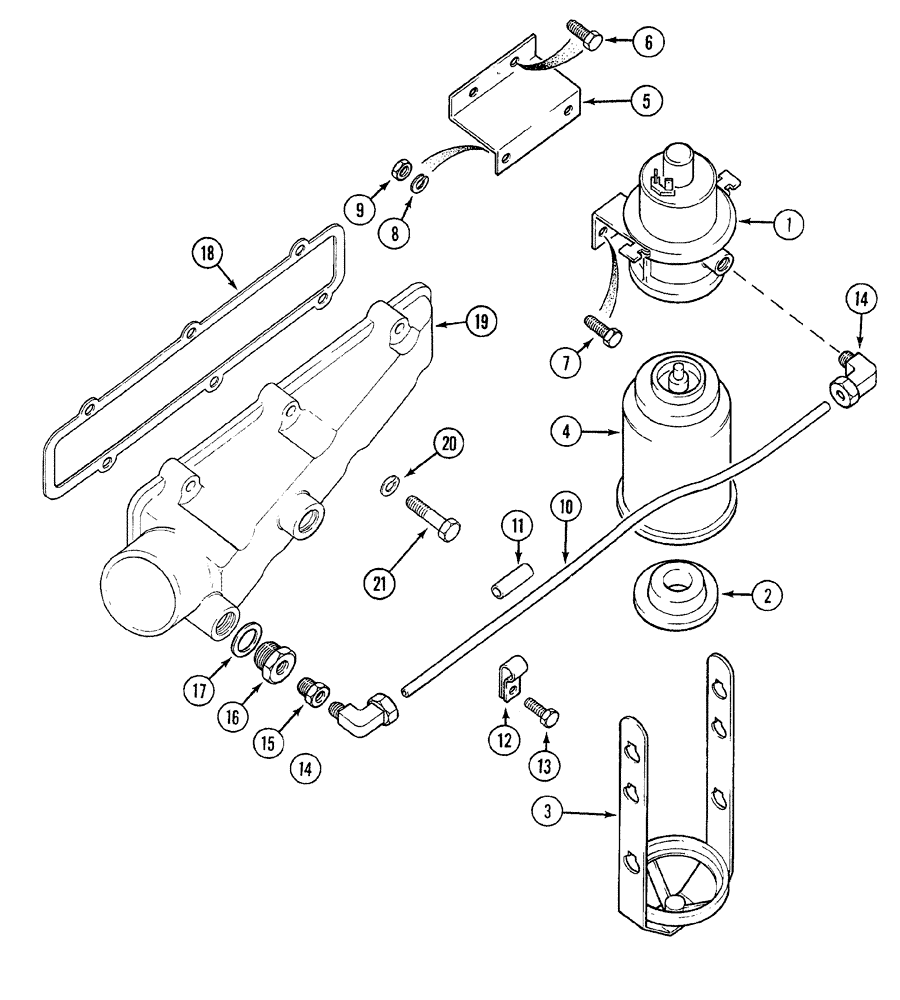

Запчасти Case 380B (2-18) - ETHER STARTING/ INTAKE MANIFOLD (02) - ENGINE

1

A143381

SOLENOID

VALVE ASSEMBLY - solenoid, ether injection

1шт.

2

395686R1

GASKET

ether can

1шт.

3

A45687

CLAMP

HANGER - ether can

1шт.

4

385064R91

FLUID

ether starting, 12 ounce can

1шт.

5

535672R2

BRACKET

injection mounting, ether starting

1шт.

6

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Ether starting

2шт.

7

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Ether starting

2шт.

8

492-11031

LOCK WASHER,5/16"

Ether starting

2шт.

9

425-105

NUT,5/16"-18, G5

Ether starting

2шт.

10

NSS

NOT SOLD SEPARAT

PIPE - injection feed, 12 inch (Cut from 995059R2), ether starting

1шт.

10

995059R2

TUBE

PIPE - bulk length, 20 foot roll, ether starting

1шт.

11

3116374R1

SLEEVE

pipe protection, ether starting

1шт.

12

3112817R1

CLAMP

support, feed pipe, ether starting

1шт.

13

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Ether starting

1шт.

14

140304

ELBOW

90 degree, 1/8 inch OD tube, ether starting

2шт.

15

269635R91

NOZZLE CAP

starting fluid, ether starting

1шт.

16

3116081R1

JET

ADAPTOR - ether nozzle

1шт.

16

3136229R1

PLUG,7/8" - 14

closing (Without Ether Starting)

1шт.

17

933945R1

SEALING RING,M23 x 28 x 2.5

1шт.

18

3055397R4

MANIFOLD GASKET

intake manifold

1шт.

Part of Cylinder Head Gaskets Service Kit

1шт.

19

3138824R1

MANIFOLD

intake

1шт.

20

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16"), Intake manifold

6шт.

21

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Intake manifold

6шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets (Includes: Ref. 17, P/N 3055397R4) (See Figure 2-46), intake manifold

1шт.
