(2-12) - AIR CLEANER - COOPERS (WITHOUT SAFETY ELEMENT)

Запчасти Case 380B (2-12) - AIR CLEANER - COOPERS (WITHOUT SAFETY ELEMENT) (02) - ENGINE

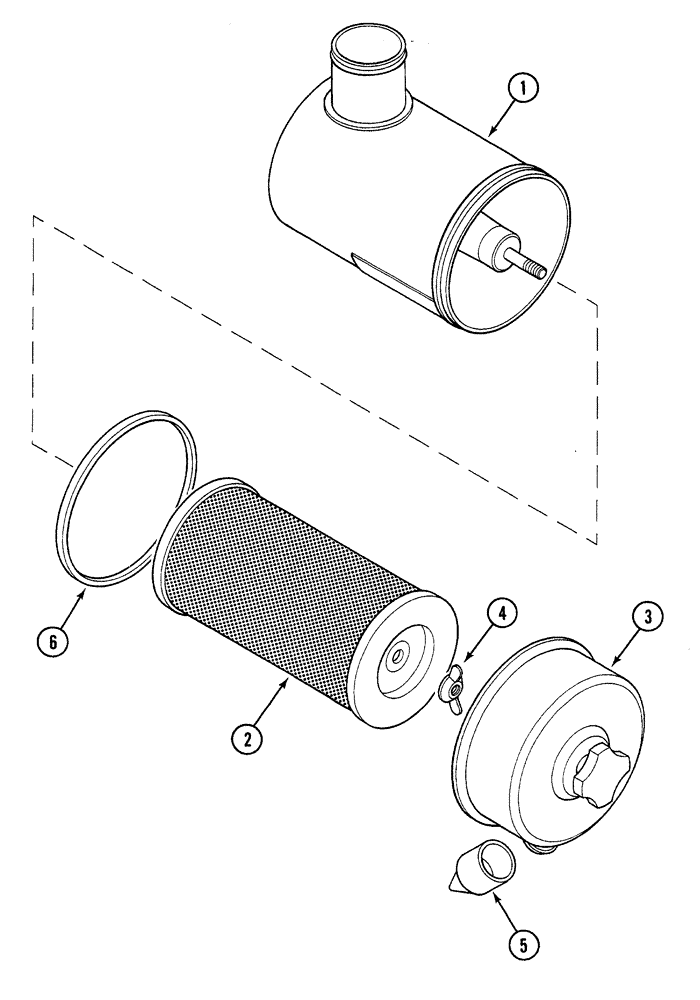

Схема запчастей Case 380B - (2-12) - AIR CLEANER - COOPERS (WITHOUT SAFETY ELEMENT) (02) - ENGINE
5
2
1
3
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3125198R94

AIR CLEANER

ASSEMBLY

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

3125199R2

AIR FILTER

ELEMENT - primary

1шт.

3

3125200R2

COVER ASSY

air cleaner

1шт.

4

3124435R1

NUT

wing, complete with gasket

1шт.

5

3124432R1

DUST VALVE

unloader

1шт.

6

1900091C1

GASKET

air cleaner

1шт.
