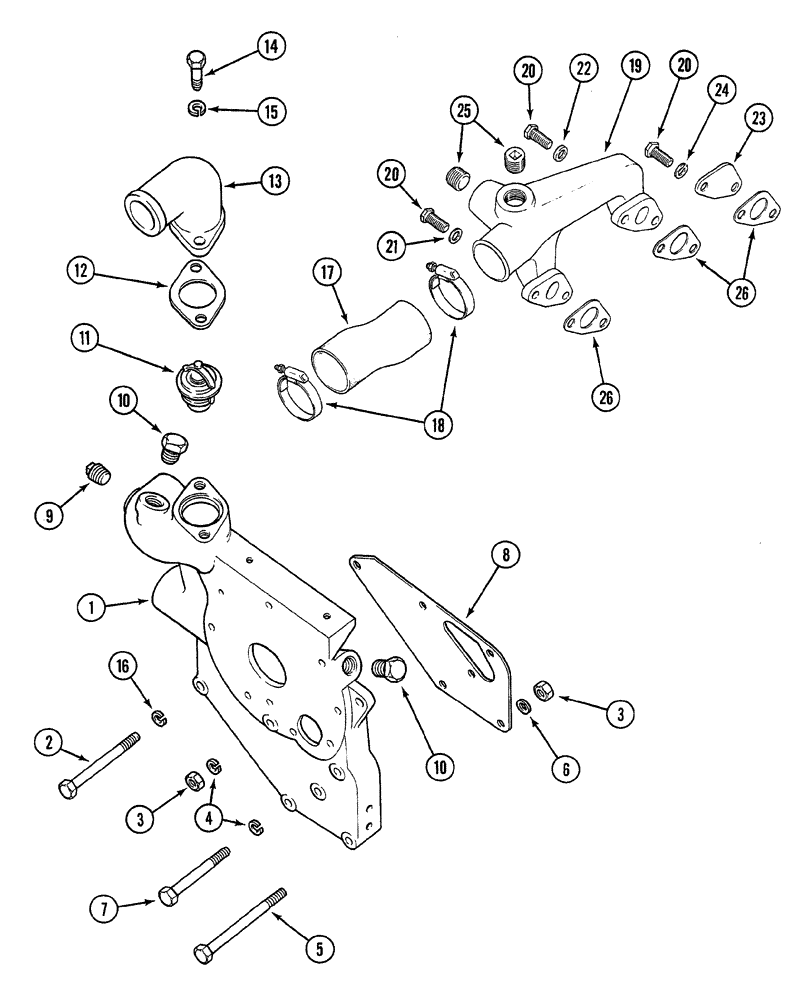

Запчасти Case 380B (2-08) - WATER PUMP CARRIER AND THERMOSTAT/ COOLANT MANIFOLD (02) - ENGINE

1

3136678R2

COVER

CARRIER - water pump, thermostat

1шт.

2

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

Water pump carrier and thermostat

1шт.

3

9635082

NUT,5/16" - 18, Gr 5

Water pump carrier and thermostat

2шт.

4

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch, water pump carrier and thermostat

5шт.

5

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

Water pump carrier and thermostat

1шт.

6

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat, 5/1 6 inch, water pump carrier and thermostat

1шт.

7

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT, Water pump carrier and thermostat

2шт.

8

3055999R3

GASKET

water pump carrier, thermostat

1шт.

Part of Crankcase Gaskets Service Kit

1шт.

9

445686

PLUG

automotive square head, 3/8 inch PT, water pump carrier and thermostat

1шт.

10

444630

PLUG,Hex Hd, 1/2"-14

automotive hex head, 1/2 inch PT, water pump carrier and thermostat

2шт.

11

3228046R1

THERMOSTAT

coolant temperature, water pump carrier and thermostat

1шт.

12

3132143R2

GASKET,1mm Thk

water outlet flange, water pump carrier and thermostat

1шт.

Part of Cylinder Head Gaskets Service Kit

1шт.

13

3136052R1

ELBOW

water outlet, water pump carrier and thermostat

1шт.

14

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Water pump carrier and thermostat

2шт.

15

92-11038

LOCK WASHER,3/8"

Water pump carrier and thermostat

2шт.

16

92-11031

LOCK WASHER,5/16"

Water pump carrier and thermostat

1шт.

17

3144028R2

HOSE

Connecting, Coolant manifold

1шт.

18

3218259R1

CLAMP,M40-60, Worm

hose, coolant manifold

1шт.

19

3218034R1

MANIFOLD

water collecting, coolant manifold

1шт.

20

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Coolant manifold

6шт.

21

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat, 5/16 inch, coolant manifold

4шт.

22

3136506R1

RING

packing, coolant manifold

1шт.

23

3132721R1

COVER

closing, coolant manifold

1шт.

24

92-11031

LOCK WASHER,5/16"

Coolant manifold

2шт.

25

444667

PLUG

automotive square socket, 1/2 inch PT, coolant manifold

2шт.

26

3055306R2

GASKET

manifold, water collecting, coolant manifold

3шт.

Part of Cylinder Head Gaskets Service Kit

1шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets (Includes: Ref. 12 and 26) (See Figure 2-46)

1шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets (Includes: Ref. 8) (See Figure 2-48)

1шт.
