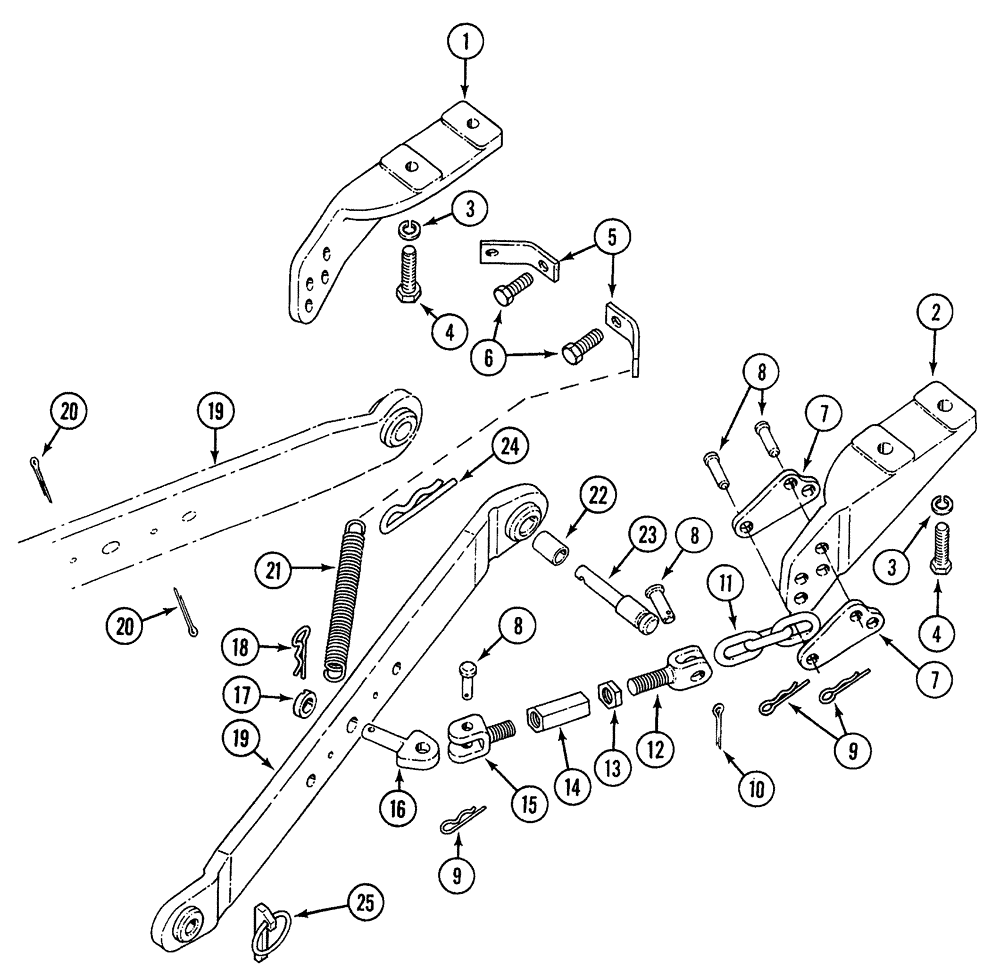

Запчасти Case 380B (9-38) - THREE POINT HITCH - FIXED LOWER LINKS (09) - CHASSIS

1

529874R1

SUPPORT

BRACKET - check chain, left hand

1шт.

2

529875R1

SUPPORT

BRACKET - check chain, right hand

1шт.

3

92-11062

LOCK WASHER,5/8"

4шт.

4

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

5

3121228R1

BRACKET

sway chain

2шт.

6

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

7

3129005R1

SUPPORT

STRAP - check chain adjusting

4шт.

8

528112R2

PIN,15.77mm OD x 54.61mm L

clevis

8шт.

9

720631R1

LINCH PIN

cotter, quick attachable

6шт.

10

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch

2шт.

11

3129007R1

CHAIN (AG)

limiter

2шт.

12

70622C1

CLEVIS,7/8" - 14

limiter chain

2шт.

13

25-1514

JAM NUT,Jam, 7/8"-14, G5

NUT - hex, jam, 7/8 inch NF

2шт.

14

3113596R1

NUT

adjustment

2шт.

15

3118016R1

CLEVIS,7/8" - 14

limiter chain (Left hand thread)

2шт.

16

3129014R1

EYEBOLT

BOLT, EYE rear stabilizer

2шт.

17

529894R1

WASHER

adjustable eyebolt

2шт.

18

529895R1

CLIP

PIN - spring

2шт.

19

1286791C91

LOWER LINK

ASSEMBLY - lower, 1-3/8 inch implement ball

2шт.

20

32-2024

COTTER PIN,5/16" x 1 1/2"

4шт.

21

662632R1

SPRING

Restraining

2шт.

22

530826R1

BUSHING

lower link

2шт.

23

530825R1

PIN,31.75mm OD x 119.84mm L

lower link

2шт.

24

538406R1

COTTER PIN

PIN - quick attachable

2шт.

25

533189R1

PIN

ASSEMBLY - quick attachable

2шт.
