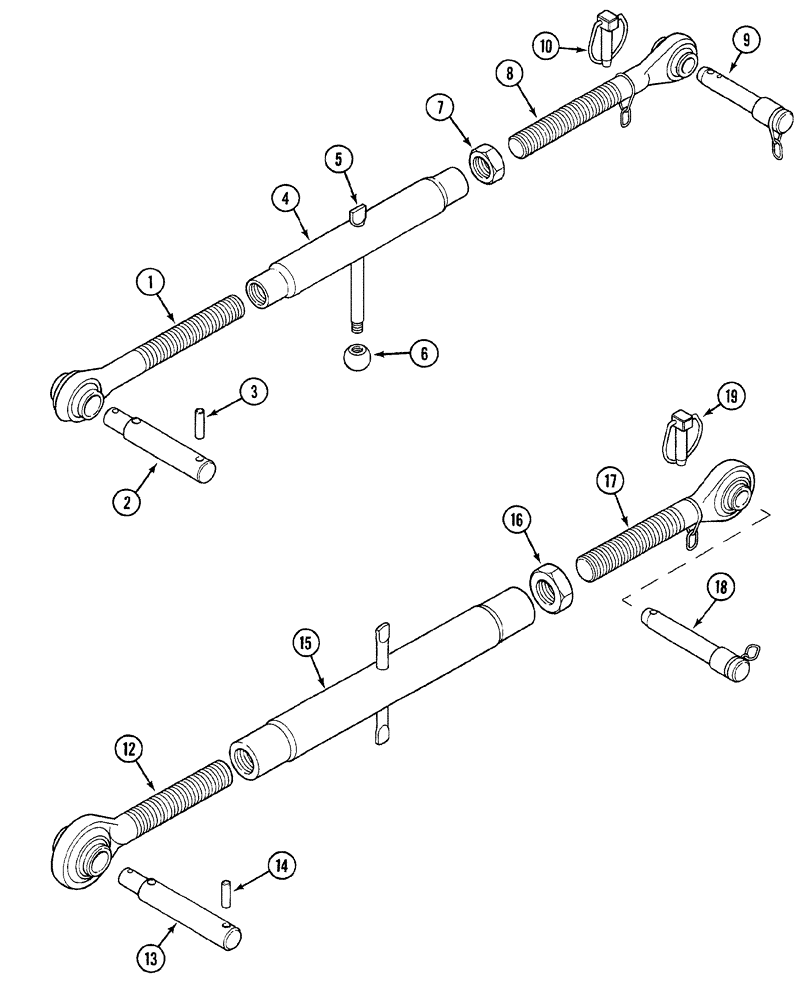

Запчасти Case 380B (9-36) - THREE POINT HITCH - UPPER LINKS (09) - CHASSIS

528085R92

LINK

ASSEMBLY - upper

1шт.

1

527998R1

SCREW

ASSEMBLY - upper link (Left hand thread)

1шт.

2

1536396C1

PIN,40mm OD x 160mm L

ASSEMBLY - upper link, category II

1шт.

3

30372R1

PIN,M6 x 40, Coiled

coiled spring, 6 x 40 mm

1шт.

4

528002R1

TURNBUCKLE

upper link

1шт.

5

65958C2

ROD

turnbuckle handle

1шт.

6

3048296R1

BUTTON

KNOB - turnbuckle rod

1шт.

7

425-1416

JAM NUT,Jam, 1"-8, G5

hex, jam, 1 inch NC

1шт.

8

528000R1

SCREW

ASSEMBLY - upper link (Right hand thread)

1шт.

9

1328192C2

PIN

Upper link, category II

1шт.

10

533189R1

PIN

ASSEMBLY - quick attachable

1шт.

1328188C92

LINK

ASSEMBLY - upper, Serial Range: (Optional-528085R92)

1шт.

12

1328189C1

SCREW,M27 x 3, LH Threads

SCREW ASSEMBLY - upper (Left hand thread)

1шт.

13

1536396C1

PIN,40mm OD x 160mm L

ASSEMBLY - upper link, category II

1шт.

14

30372R1

PIN,M6 x 40, Coiled

coiled spring, 6 x 40 mm

1шт.

15

1328191C1

TURNBUCKLE

upper link

1шт.

16

905709R1

THIN NUT,Thin, M27 x 3

hex, 27 mm - 3.00

1шт.

17

1328190C1

SCREW,M27 x 3

SCREW ASSEMBLY - upper (Right hand thread)

1шт.

18

1328192C2

PIN

Upper link, category II

1шт.

19

1328218C1

LINCH PIN,11mm OD

Assy - quick attachable

1шт.
