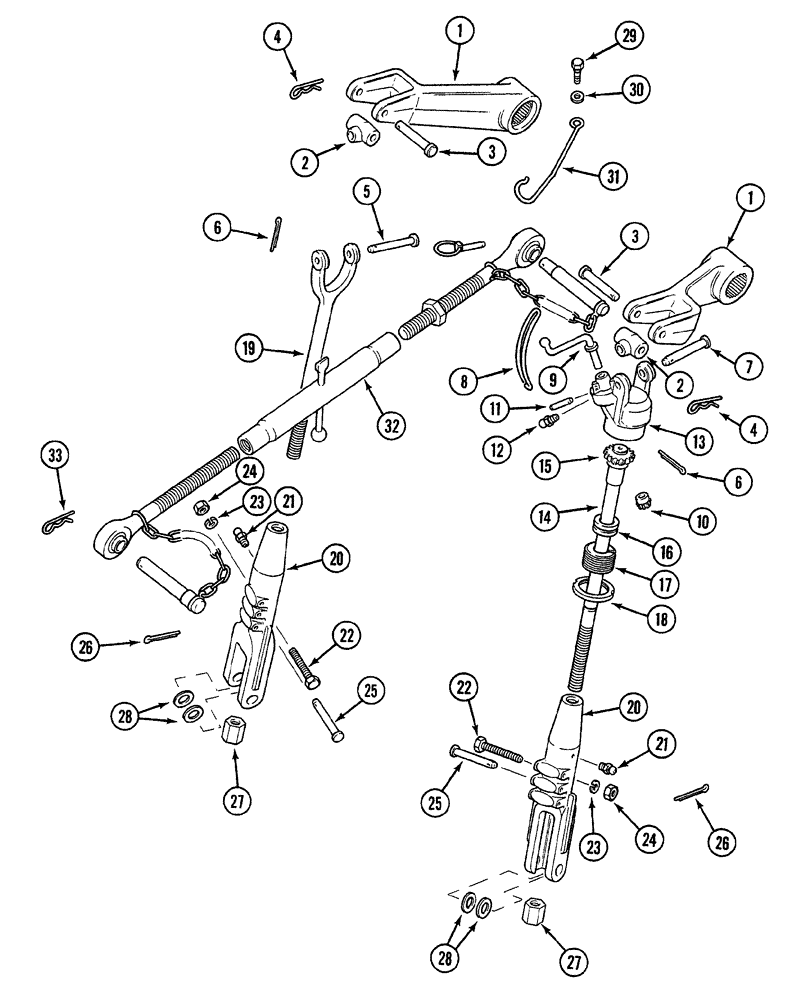

Запчасти Case 380B (9-34) - THREE POINT LOWER HITCH (09) - CHASSIS

1

402634R2

ROCKER ARM

rockshaft

2шт.

2

539247R1

BRACKET, PIVOT

PIVOT BRACKET SWIVEL - leveling screw

2шт.

3

3044309R1

PIN

headed, rockshaft arm

2шт.

4

720631R1

LINCH PIN

cotter, quick attachable type

2шт.

5

3044309R1

PIN

rockshaft arm

1шт.

6

32-1216

COTTER PIN,3/16" x 1"

2шт.

7

3069069R1

PIN

headed, 5/8 x 3-3/4 inch

1шт.

8

3072424R1

SPRING

levelling screw handle

1шт.

9

527943R1

CRANK

HANDLE - leveling screw

1шт.

10

3069063R1

GEAR

pinion

1шт.

11

142506

LATCH

3/16" x 3/4", Type A

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

13

3072422R1

HOUSING

HOUSING - leveling screw

1шт.

14

69984C91

SCREW

ASSEMBLY - leveling (With Ref. No. 16)

1шт.

14

69991C91

SCREW

ASSEMBLY - levellng, Serial Range: (Optional-69984C91)

1шт.

15

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

bearing (Used with leveling screw 69991C91)

1шт.

16

3044346R91

BALL BEARING

leveling screw

1шт.

16

3044347R91

THRUST BEARING

BEARING - leveling screw, Serial Range: (Optional-3044346R91)

1шт.

16

3044348R91

BEARING, THRUST

leveling screw, Serial Range: (Optional-3044346R91)

1шт.

16

3068049R91

BALL BEARING

leveling screw, Serial Range: (Optional-3044346R91)

1шт.

17

3069064R1

BEARING

leveling screw

1шт.

18

3069065R1

LOCK NUT

leveling screw bearing

1шт.

19

527967R1

CLEVIS,7/8" - 9

YOKE ASSEMBLY - lift link, left

1шт.

20

3121964R1

HOUSING

lift link yoke

2шт.

21

219-14

LUBE NIPPLE,1/4" NPTF

Straight

2шт.

22

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

23

492-11031

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

float stop

2шт.

26

32-610

COTTER PIN,3/32" x 5/8"

2шт.

27

527937R1

NUT

lift link

2шт.

28

95-81025

WASHER,25/32" x 2" x .120"

flat, 25/32 x 2 x 1/8 inch

4шт.

29

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

Shoulder

1шт.

30

495-81020

WASHER,17/32" x 1" x .030"

flat, 25/32 x 1-1/4 x 19/64 inch

1шт.

31

530050R3

CLIP,ELECTRICAL

upper link storage

1шт.

32

REF

INSTRUCTION

LINK ASSEMBLY - upper (See Figure 9-36)

1шт.

33

530049R1

CLIP, SPRING

PIN - cotter, quick attachable type

1шт.
