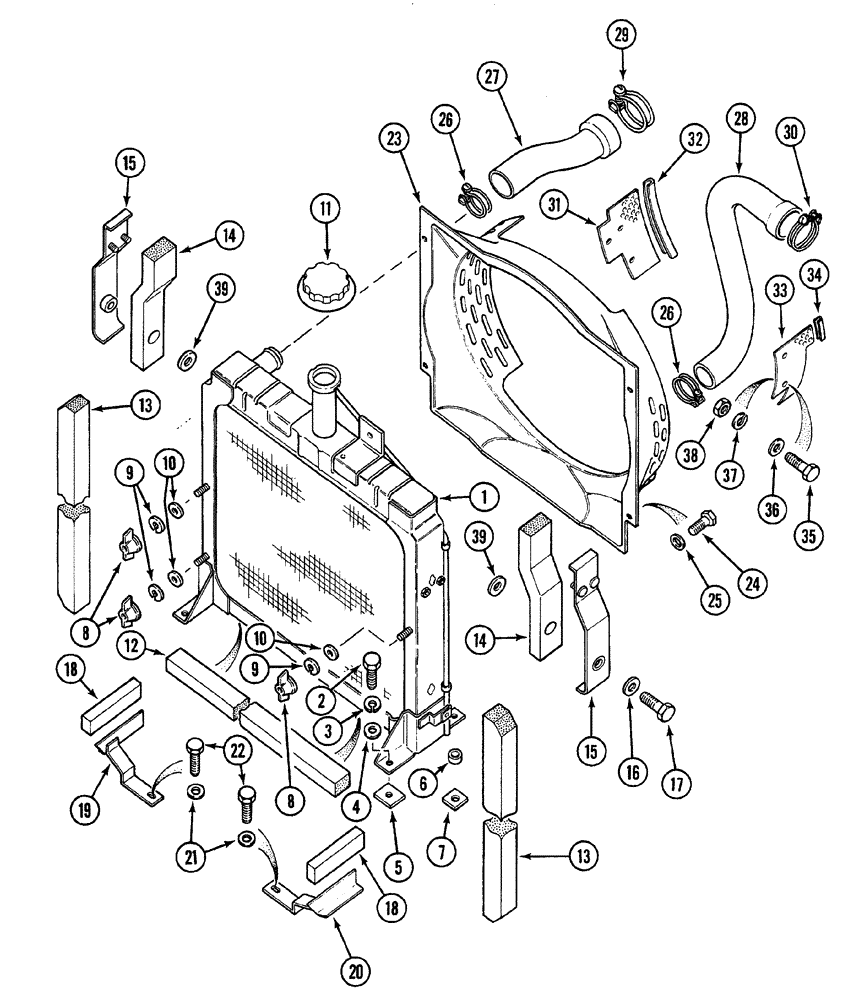

Запчасти Case 380B (2-04) - RADIATOR AND CONNECTIONS (02) - ENGINE

1

1536373C1

RADIATOR

ASSEMBLY - engine coolant

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

95-11041

WASHER,3/8"

(13/32 x 13/16 x 1/16)

4шт.

5

47240D

PAD

radiator mounting

4шт.

6

99427C1

SPACER

BUSHING - radiator mounting

4шт.

7

84525C1

SPACER

SPACER - rear mounting

2шт.

8

129-419

WING NUT,5/16"-18

wing, 5/16 inch NC

3шт.

9

180322

LOCK WASHER

lock, internal tooth, 5/16 inch

3шт.

9

493-81008

LOCK WASHER,Int Tooth, 5/16"

(Optional to 180322)

3шт.

10

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

3шт.

11

1500626C91

PLUG

CAP ASSEMBLY - radiator

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - foam, lower radiator, 450 mm (Cut from bulk length)

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - foam, radiator side, 325 mm (Cut from bulk length)

2шт.

14

98934C1

SEAL

SEAL - foam, side shield

2шт.

15

98907C1

GUARD

SHIELD ASSEMBLY - radiator seal

2шт.

16

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

17

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

18

NSS

NOT SOLD SEPARAT

GASKET - foam, side panel, 8.8 inch (Cut from 73228C2)

2шт.

18

73228C2

GASKET

SEAL - foam, bulk length, 4 foot roll

1шт.

19

1970649C1

BRACKET

ASSEMBLY - side shield, right

1шт.

20

1970650C1

BRACKET

ASSEMBLY - side shield, left

1шт.

21

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

23

527475R3

HOUSING

SHROUD - engine cooling fan

1шт.

24

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

25

95-11028

WASHER,1/4"

flat, 9/32 x 5/8 x 1/16 inch

4шт.

26

39149H

HOSE CLAMP

No 64, 1.69 inch closed ID

2шт.

26

705935R91

HOSE CLAMP

, Serial Range: (Optional-39149H)

2шт.

27

1502065C1

RADIATOR HOSE,1.50" ID, 2.00" ID x 8.98"

Radiator Inlet

1шт.

28

402189R1

LARGE HOSE,1.50" ID, 2.00" ID x 10.39", SAE 20R2

HOSE,LARGE Outlet

1шт.

29

39205H

CLAMP

CLAMP - hose, No 80, 2 .2 inch closed ID

2шт.

30

706082R91

CLAMP

CLAMP - hose, Serial Range: (Optional-39205H)

2шт.

31

99768C1

GUARD

SCREEN - finger guard, right

1шт.

32

NSS

NOT SOLD SEPARAT

STRIP - edging, 13.4 inch (Cut from 1265283C1)

1шт.

32

1265283C1

STRIP

SPARE PART edging (Bulk length)

1шт.

33

99767C1

GUARD

SCREEN - finger guard, left

1шт.

34

NSS

NOT SOLD SEPARAT

STRIP - edging, 2.5 inch (Cut from 1265283C1)

1шт.

34

1265283C1

STRIP

SPARE PART edging (Bulk length)

1шт.

35

613-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

5шт.

36

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

flat, 7 x 13 x 2 mm, hardened

5шт.

37

892-11006

LOCK WASHER,M6

5шт.

38

829-1406

NUT,Hex, M6 x 1, Cl 10.9

5шт.

39

86224H

SPACER,1/4" Pipe x 3/8"

2шт.
