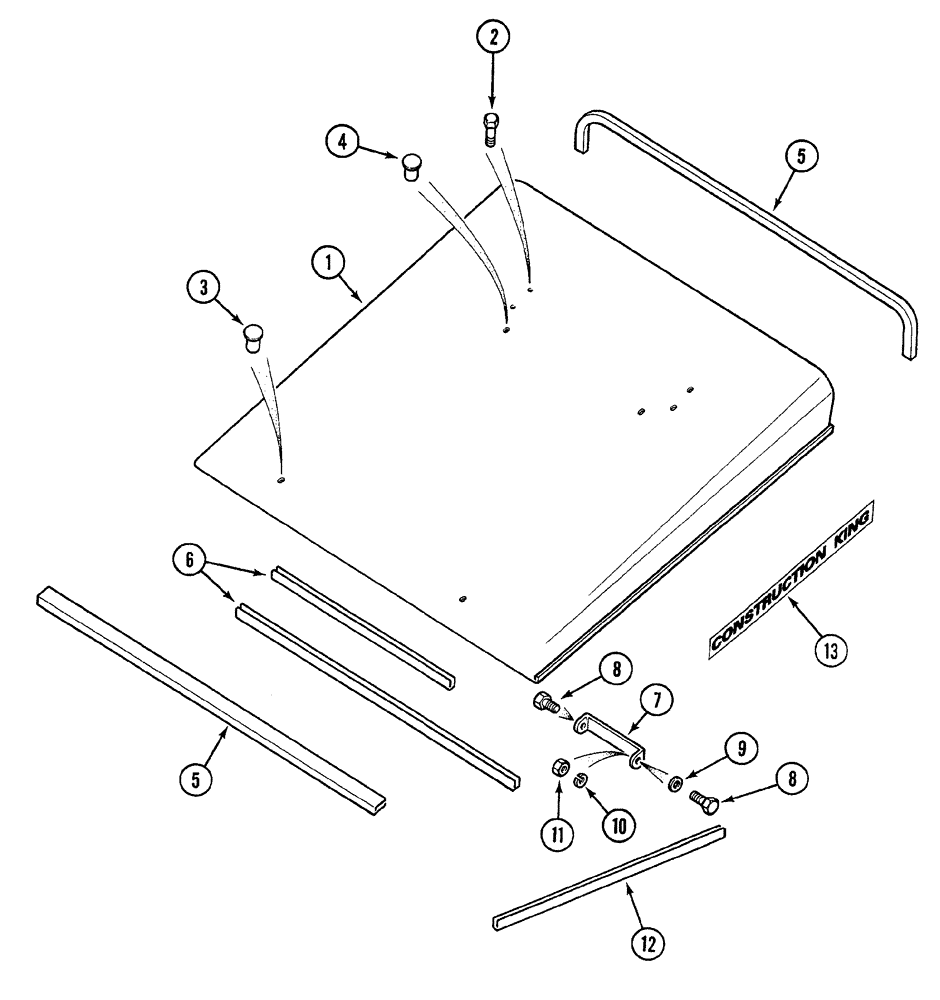

Запчасти Case 380B (9-28) - ROLL OVER PROTECTION FRAME - 2 POST ROPS CANOPY (09) - CHASSIS

1

118375C4

TOP

ROOF ASSEMBLY - canopy

1шт.

1

1281633C3

ROOF

ASSEMBLY - canopy, Serial Range: (Optional-118375C3)

1шт.

2

434-832

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

1/2 NC x 2 inch

8шт.

3

1332024C1

PLUG,5/8"

Restraining cable

2шт.

4

3123992R1

PLUG

7 mm, canopy blanking (Without headliner trim)

2шт.

4

353-400

PLUG,Dome, .250" hole, Nylon

Blanking (Optional to 3123992R1)

2шт.

5

NSS

NOT SOLD SEPARAT

STRIP - trim (Cut from 118483C2) (Canopy with sheared edges)

2шт.

5

118483C2

STRIP, METERS

roof trim, bulk length

1шт.

6

NSS

NOT SOLD SEPARAT

STRIP - trim, 62 inch (Cut from 1327666C2)

2шт.

6

1327666C2

SEALING STRIP

STRIP - trim, bulk length 50 foot roll

1шт.

7

118531C2

BRACKET

stabilizer

4шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

9

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

4шт.

10

492-11025

LOCK WASHER,1/4"

8шт.

11

425-104

NUT,1/4"-20, Cl 5

8шт.

12

NSS

NOT SOLD SEPARAT

STRIP - trim (Cut from 11 8524C2)

2шт.

12

118524C2

SEALING STRIP

STRIP - trim

1шт.

13

D123950

DECAL

canopy roof (Construction King)

2шт.
