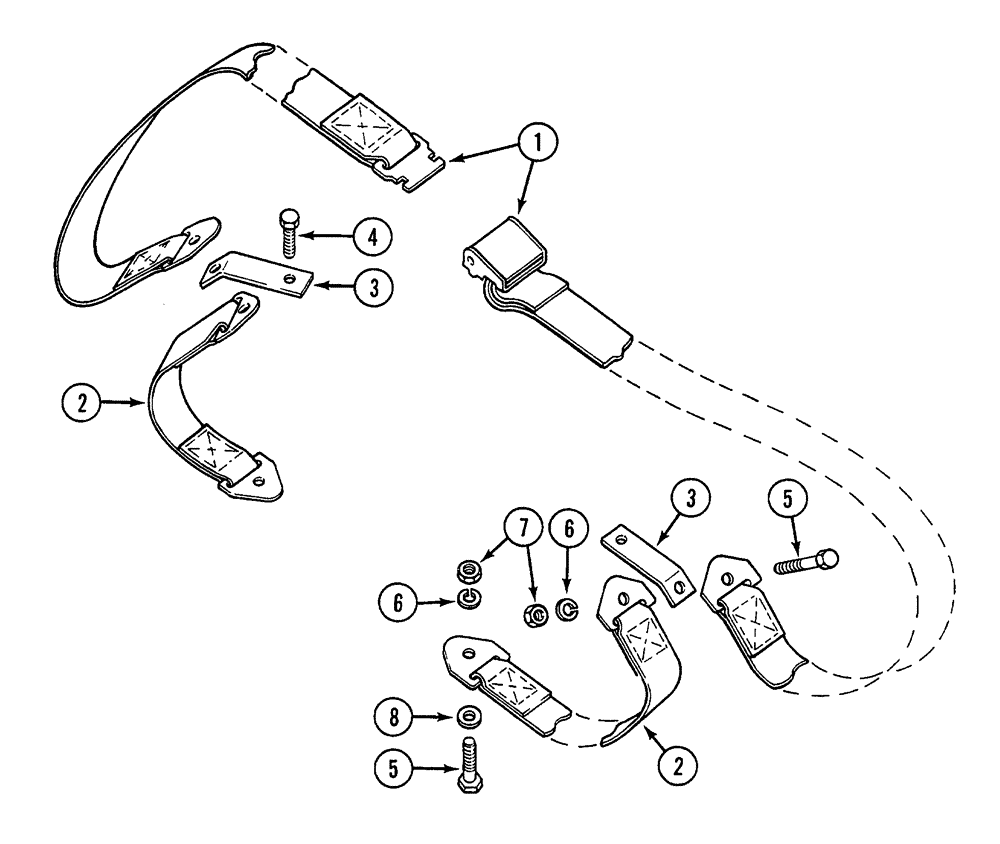

Запчасти Case 380B (9-24) - SEAT BELT (09) - CHASSIS

1

537339R1

SAFETY BELT

2", Static seat

1шт.

2

539258R1

SAFETY BELT

Retainer, Static seat

2шт.

3

539259R1

CLIP

seat belt retainer, static seat

2шт.

4

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

Static seat

2шт.

5

344096C3

BOLT

BOLT - seat belt anchor, static seat

4шт.

6

492-11044

LOCK WASHER,7/16"

Static seat

4шт.

7

429-117

NUT,7/16"-20, G8

hex, 7/16 inch, grade 8, static seat

4шт.

8

495-11047

WASHER,7/16", SAE

Flat, (15/32 x 59/64 x 1/16"), Static seat

4шт.

1

D135035

SAFETY BELT ,3.00" W

Static seat

1шт.

2

539258R1

SAFETY BELT

Retainer, Static seat

2шт.

3

539259R1

CLIP

seat belt retainer, static seat

2шт.

4

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

Static seat

2шт.

5

344096C3

BOLT

BOLT - seat belt anchor, static seat

4шт.

6

492-11044

LOCK WASHER,7/16"

Static seat

4шт.

7

429-117

NUT,7/16"-20, G8

hex, 7/16 inch, grade 8, static seat

4шт.

8

495-11047

WASHER,7/16", SAE

Flat, (15/32 x 59/64 x 1/16"), Static seat

4шт.

1536395C1

SEAT

ASSEMBLY - PVC covered (See Figure 9-18), bostrom suspension seat

1шт.

1

537339R1

SAFETY BELT

2", Bostrom suspension seat

1шт.

2

539258R1

SAFETY BELT

Retainer, Bostrom suspension seat

2шт.

3

539259R1

CLIP

seat belt retainer, bostrom suspension seat

2шт.

4

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

Bostrom suspension seat

2шт.

5

344096C3

BOLT

BOLT - seat belt anchor, bostrom suspension seat

4шт.

6

492-11044

LOCK WASHER,7/16"

Bostrom suspension seat

4шт.

7

429-117

NUT,7/16"-20, G8

hex, 7/16 inch, grade 8, bostrom suspension seat

2шт.

8

495-11047

WASHER,7/16", SAE

Flat, (15/32 x 59/64 x 1/16"), Bostrom suspension seat

2шт.
