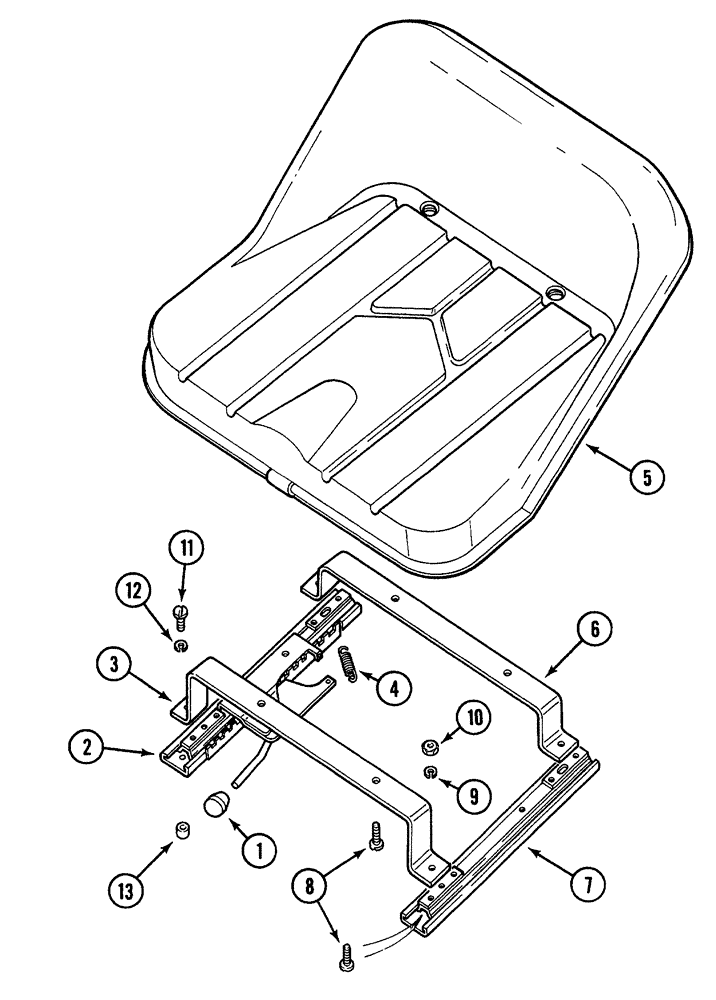

Запчасти Case 380B (9-22) - STATIC SEAT (09) - CHASSIS

3121641R91

SEAT ASSY.

static

1шт.

1

538693R1

BUTTON

KNOB - seat adjustment handle

1шт.

2

825199C91

SLIDE

RAIL - slide, right hand (With adjuster)

1шт.

3

3121642R1

SUPPORT

BRACKET - front mounting

1шт.

4

538694R1

SPRING

return

1шт.

5

538026R1

SEAT ASSY.

pan

1шт.

6

3121643R1

SUPPORT

BRACKET - rear mounting

1шт.

7

825198C1

RAIL

slide, left hand

1шт.

8

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

machine, pan head Philips, 5/16 NC x 3/4 inch

12шт.

9

492-11031

LOCK WASHER,5/16"

8шт.

10

425-105

NUT,5/16"-18, G5

4шт.

11

440-13120

SCREW,Cross Pan Hd, 5/16"-18 x 1 1/4"

pan head Phillips, 5/16 NCx 1-1/4 inch

4шт.

12

3123564R1

LOCK WASHER

5/16 inch

4шт.

13

3123562R1

SPACER

seat

4шт.
