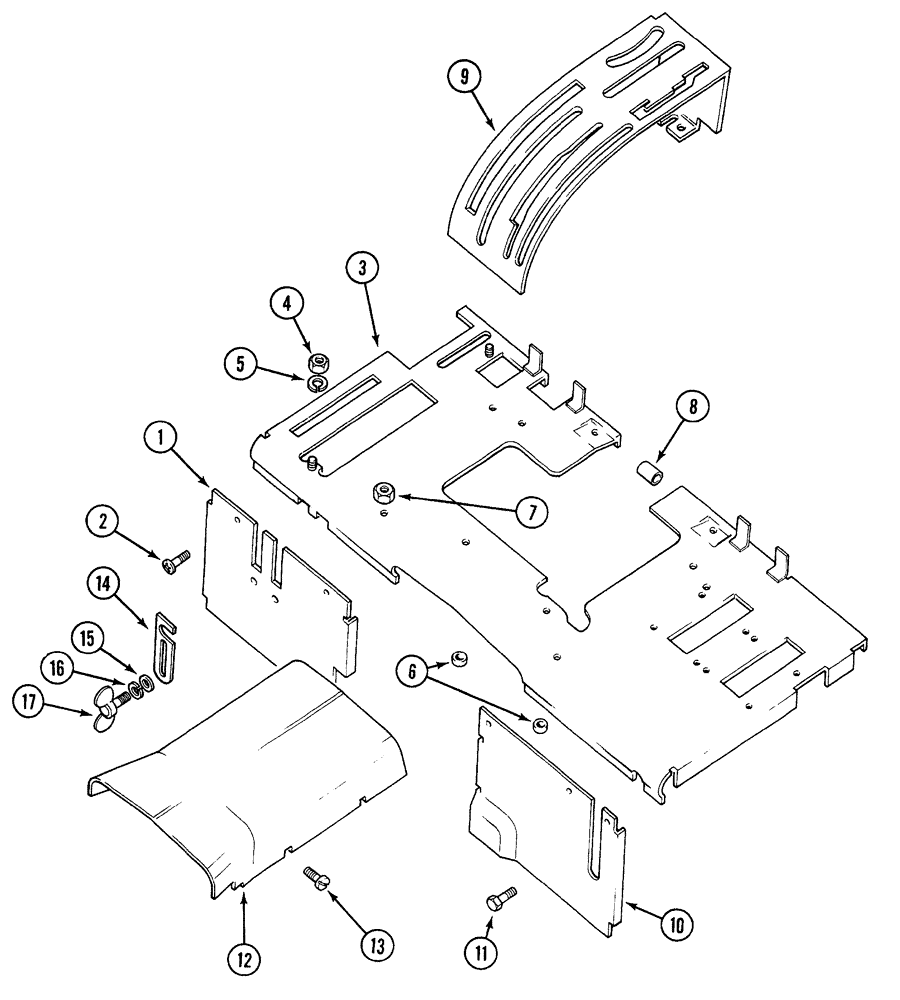

Запчасти Case 380B (9-16) - SEAT DECK (09) - CHASSIS

1

94161C1

PROTECTION PLATE

CHANNEL ASSEMBLY - rear vertical, right hand

1шт.

2

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

machine, pan head slotted, 1/4 NC x 5/8 inch

2шт.

3

99656C2

PLATFORM ASSY.

seat

1шт.

4

425-115

NUT,5/16"-24, G5

5шт.

5

492-11031

LOCK WASHER,5/16"

5шт.

6

401941R1

SPACER

short

2шт.

7

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

8

3125820R1

SLEEVE

PVC

6шт.

9

1536841C1

HOUSING

ASSEMBLY - hitch control lever

1шт.

10

528638R2

PROTECTION PLATE

CHANNEL ASSEMBLY - rear vertical, left hand

1шт.

11

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

12

66290C1

COVER

clutch housing

1шт.

13

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

machine, pan head slotted, 1/4 NC x 3/8 inch

4шт.

14

3125862R1

PLATE

lockout, auxiliary valve lever

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

wing, adjusting

1шт.
