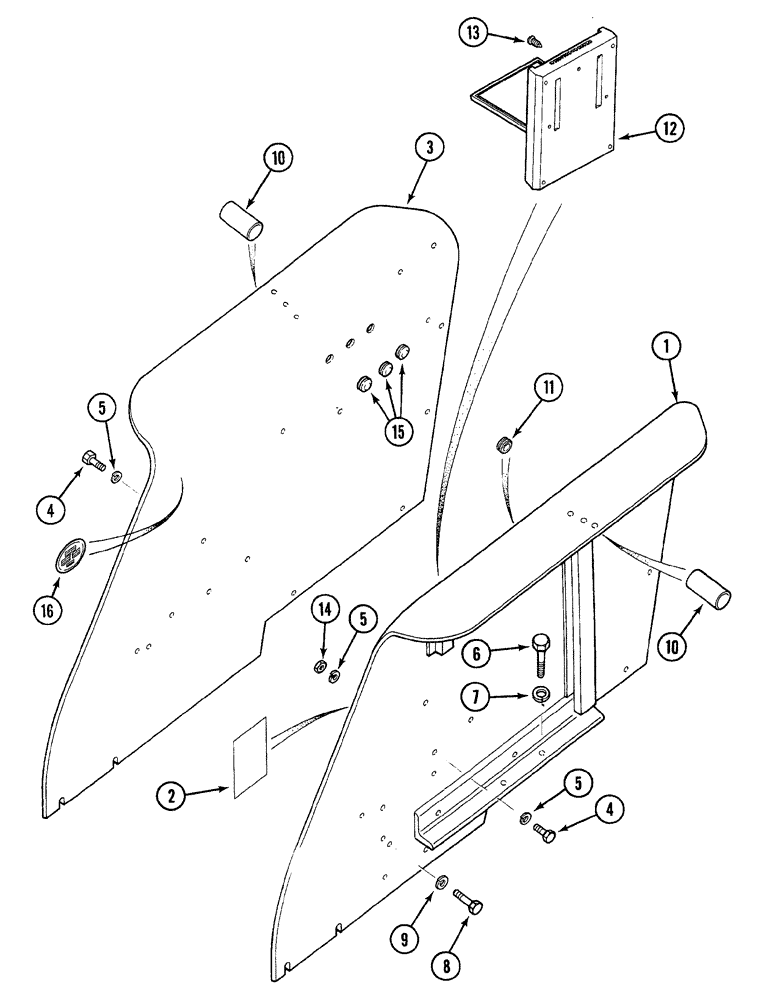

Запчасти Case 380B (9-14) - REAR FENDERS - CROWN TOP (09) - CHASSIS

1

530001R1

FENDER ASSY.

lo-crown, left hand

1шт.

2

321-6771

DECAL

warning, operating instructions (With 530001R1)

1шт.

3

530004R1

FENDER

ASSEMBLY - lo-crowm, right hand

1шт.

4

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

8шт.

5

492-11031

LOCK WASHER,5/16"

8шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

8

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

3шт.

10

3125820R1

SLEEVE

PVC

3шт.

11

531625R1

GROMMET

rubber

2шт.

12

T104294

BOX

operators manual

1шт.

13

A162364

FASTENER

panel

3шт.

14

425-105

NUT,5/16"-18, G5

2шт.

15

99964C1

PLUG

blanking

6шт.

16

REF

INSTRUCTION

DECAL - speed chart, mph (See Figure 9-46)

1шт.
