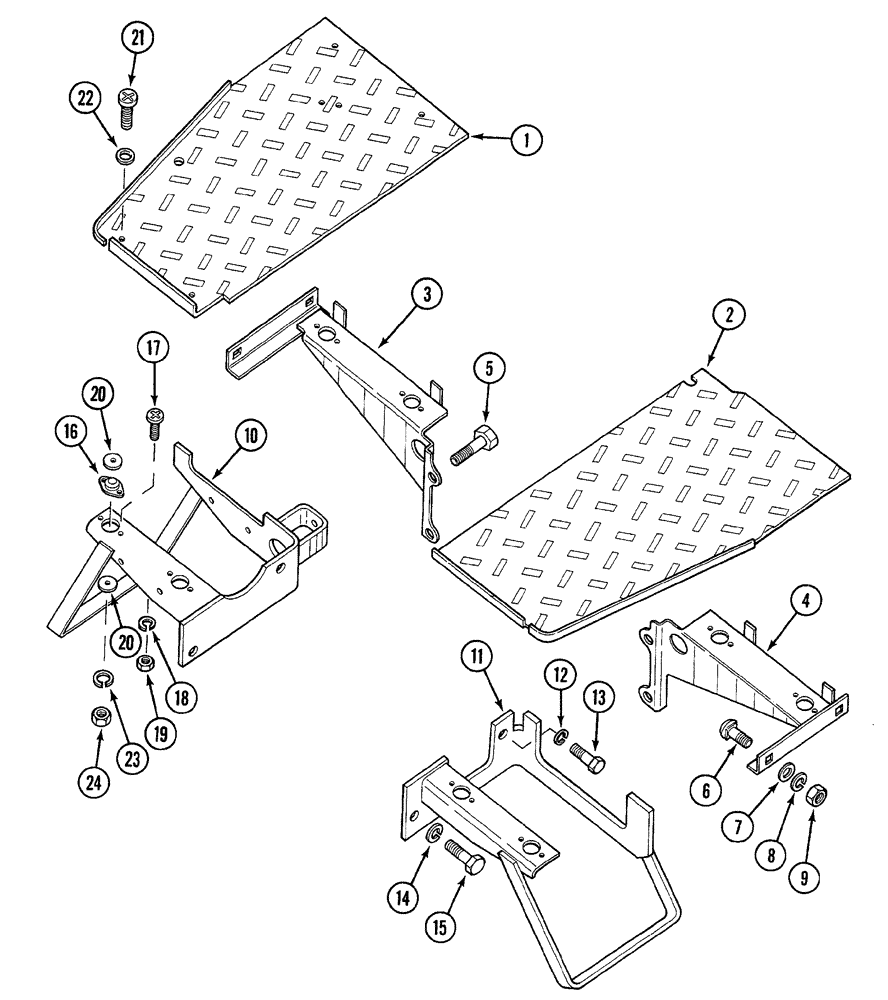

Запчасти Case 380B (9-12) - OPERATOR PLATFORMS (09) - CHASSIS

1

3123690R1

PLATFORM

ASSEMBLY - right hand

1шт.

2

1536026C1

PLATFORM

ASSEMBLY - left hand

1шт.

3

3123703R1

SUPPORT

ASSEMBLY - platform rear, right hand

1шт.

4

3123702R1

SUPPORT

ASSEMBLY - platform rear, left hand

1шт.

5

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

BOLT - hex, 1/2 NC x 1-3/4 inch, grade 8

4шт.

6

412-612

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 3/4", Gr 2

BOLT - carriage, 3/8 NC x 3/4 inch

4шт.

7

95-11041

WASHER,3/8"

(13/32 x 13/16 x 1/16)

4шт.

8

92-11038

LOCK WASHER,3/8"

4шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

1265128C1

SUPPORT

ASSEMBLY - platform front, right hand

1шт.

11

3123694R3

SUPPORT

ASSEMBLY - platform front, left hand

1шт.

12

92-11038

LOCK WASHER,3/8"

2шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

14

92-11050

LOCK WASHER,1/2"

2шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

16

3123709R1

SHOCK ABSORBER

platform mounting

8шт.

17

340-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

pan head Phillips, No. 6-32 x 3/8 inch

16шт.

18

492-11006

LOCK WASHER,#6

16шт.

19

225-14106

NUT,#6-32

16шт.

20

3123710R1

WASHER

snubbing

16шт.

21

440-10816

SCREW,Cross Pan Hd, #8-32 x 1"

pan head Phillips, No. 8-32 x 1 inch

8шт.

22

495-21019

WASHER,#8

8шт.

23

492-11008

LOCK WASHER,#8

8шт.

24

225-14108

NUT,#8-32

hex, No. 8 NC

8шт.
