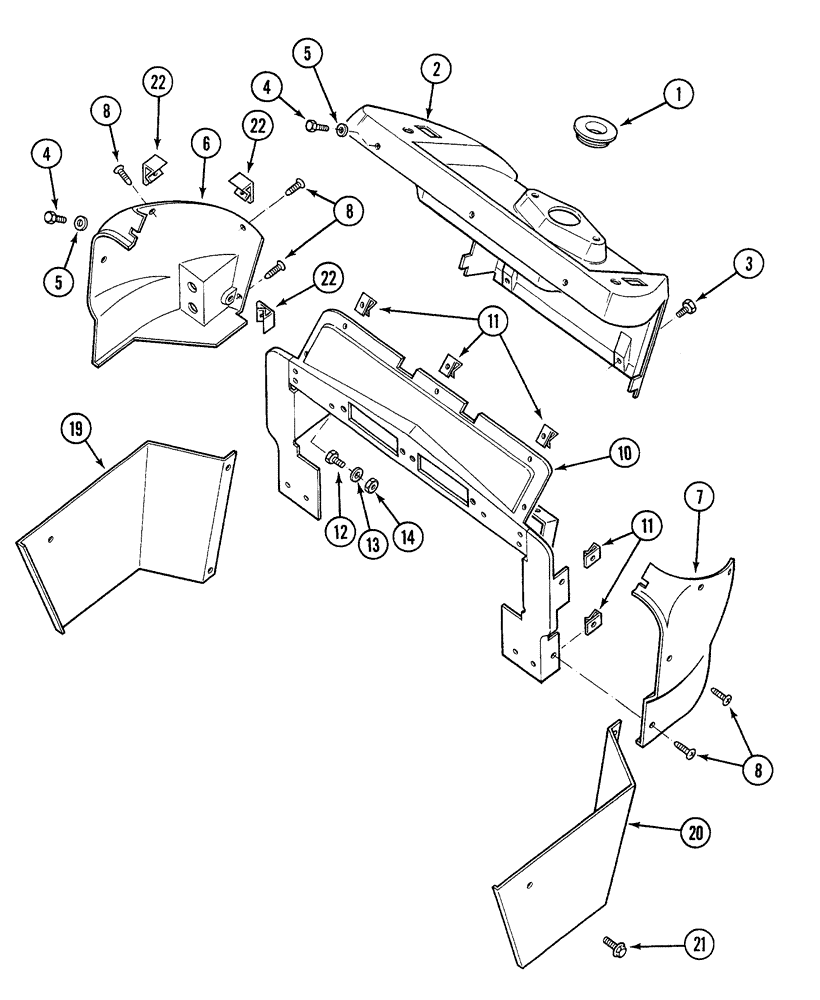

Запчасти Case 380B (9-10) - INSTRUMENT HOUSING (09) - CHASSIS

1

3123366R1

PLUG

BOOT - rubber (Steering column)

1шт.

2

1536660C1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT HOUSING - instrument panel

1шт.

3

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

2шт.

4

275-14510

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

hex, tapping, No 10-16 x 5/8 inch

5шт.

5

495-31022

WASHER,#10

5шт.

6

3121712R3

HOUSING

instrument panel side, right hand

1шт.

7

3121711R4

HOUSING

instrument panel side left hand

1шт.

8

260-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

10шт.

1333010C1

PLATE

ASSEMBLY - instrument panel support

1шт.

10

1333008C1

PLATE

ASSEMBLY - instrument panel back

1шт.

11

3123171R1

NUT

captive

7шт.

12

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

13

92-11031

LOCK WASHER,5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

19

3121638R1

GUARD

PANEL - side, lower rear, right hand

1шт.

20

3121637R1

GUARD

PANEL - side, lower rear, left hand

1шт.

21

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

cap, 1/4 NC x 5/8 inch

6шт.

22

1536405C1

SPRING NUT

spring, J-type

6шт.
