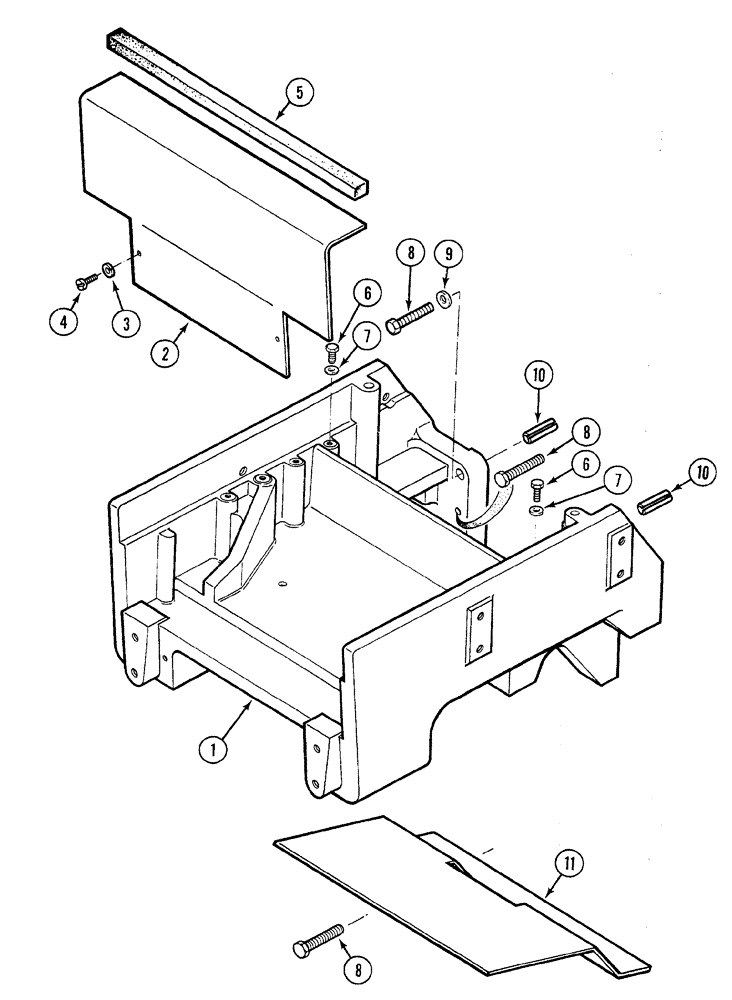

Запчасти Case 380B (9-02) - FRONT BOLSTER - CAST (09) - CHASSIS

1

94179C2

SUPPORT

BOLSTER - cast, front

1шт.

2

94334C1

COVER

bolster, front

1шт.

3

492-11031

LOCK WASHER,5/16"

2шт.

4

3118624R1

SCREW

Hex washer head, 5/16 inch NC

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL - front cover, 20.5 inch (Cut from 73212C2)

1шт.

5

73212C2

GASKET

SEAL - foam, bulk length, 4 foot roll

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

8шт.

9

905686R1

LOCK PIN,M21 x 16, Slotted

slotted spring, 21 x 16 mm

2шт.

10

82744C1

WASHER

hardened

2шт.

11

99512C2

PROTECTION PLATE

BAFFLE - bolster, air

1шт.
