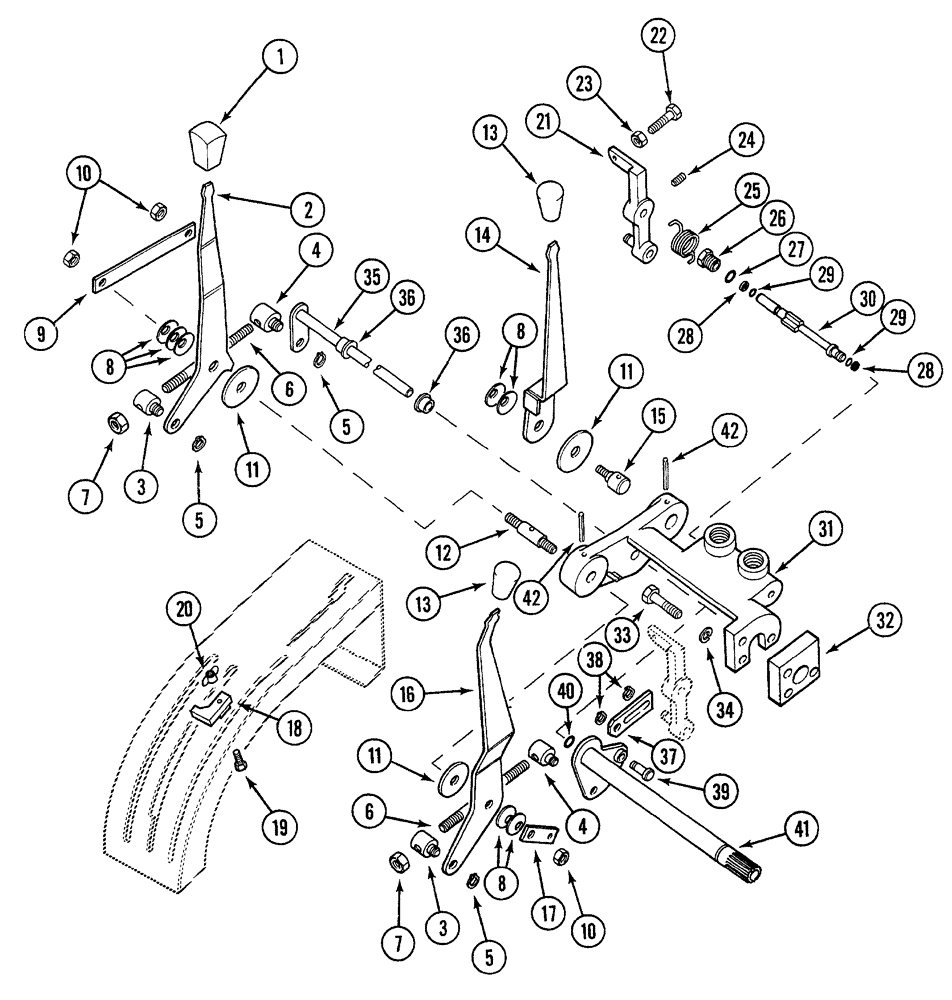

Запчасти Case 380B (8-36) - DRAFT CONTROL - EXTERNAL LEVERS AND LINKAGE (08) - HYDRAULICS

1

400068R1

BUTTON

GRIP - load control

1шт.

2

94163C1

LEVER ASSY.

load control

1шт.

3

400086R1

PIN

connecting, hitch link front

2шт.

4

400087R1

PIN

connecting, hitch link rear

2шт.

5

204502R1

SNAP RING,#43, Ext

4шт.

6

400085R1

STUD

connecting rod, hitch link

2шт.

7

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

8

536847R1

BELLEVILLE WASHER

belleville

7шт.

9

536849R1

PLATE

outer retaining

1шт.

10

231-1446

NUT,3/8" - 16, Gr 5

3шт.

11

380421R1

FRICTION WASHER

friction, sensitivity control

3шт.

12

400081R1

BOLT,3/8" - 16 x 72.90mm, HT

Hitch control lever pivot

1шт.

13

400072R1

BUTTON

KNOB - position and speed control

2шт.

14

94165C1

LEVER ASSY.

flow control adjusting

1шт.

15

527919R1

BOLT

Flow lever pivot

1шт.

16

94164C2

LEVER ASSY.

position control

1шт.

17

537600R1

PLATE

inner retaining

1шт.

18

3118646R1

STOP

position control

1шт.

19

28000R1

BOLT

BOLT - projection weld, 1/4 NC x 3/4 inch

1шт.

20

86627130

WING NUT,1/4"-20

1/4 inch NC

1шт.

21

529353R1

ARM ASSY.

flow control

1шт.

22

1502037C1

SET SCREW

hex, 1/4 NC x 1-1/2 inch

1шт.

23

25-144

JAM NUT,Jam, 1/4"-20, G5

hex jam, 3/8 inch NC

1шт.

24

65461C1

SET SCREW

1/4 inch NF, with nylon insert

1шт.

25

529352R1

SPRING

return

1шт.

26

529356R1

PLUG

variable flow control valve

1шт.

28

529355R1

WASHER

back-up

2шт.

29

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

2шт.

30

529351R1

SPOOL

variable flow control valve

1шт.

31

529349R3

SUPPORT

ASSEMBLY - hitch control shaft

1шт.

32

3129761R1

SPACER

support assembly

1шт.

33

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3шт.

34

92-11038

LOCK WASHER,3/8"

3шт.

35

94168C1

SHAFT

ASSEMBLY - load control

1шт.

36

374940R1

NYLON BEARING

BEARING - control lever shaft

2шт.

37

527926R1

LINK

flow control over-ride

1шт.

38

104977R1

SNAP RING,#X31, .243" Dia, E-Type

2шт.

39

527923R1

PIN

link arm

1шт.

40

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

41

94167C1

SHAFT

ASSEMBLY - position control (See Figure 8-34)

1шт.

42

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

2шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
