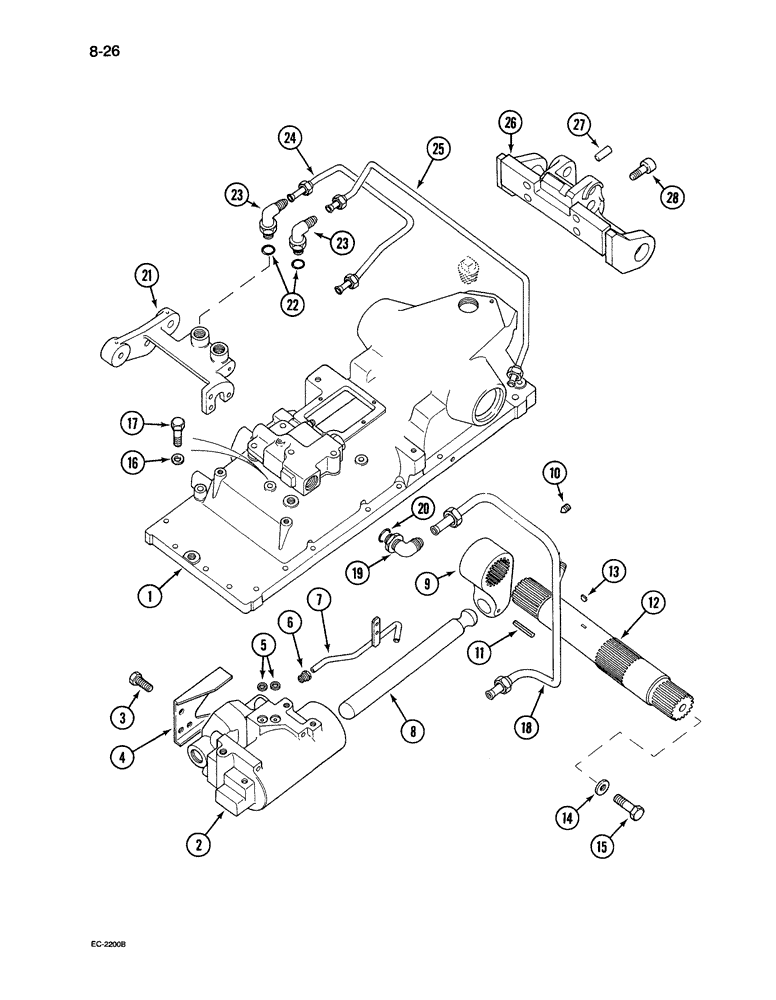

Запчасти Case 380B (8-26) - DRAFT CONTROL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
406003R32
HOUSING ASSY.
hydraulic unit (See Figure 8-28)
1шт.
2
NSS
NOT SOLD SEPARAT
CYLINDER ASSEMBLY - draft control(See Figure 8-30)
1шт.
3
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
3шт.
4
400026R2
SUPPORT
BRACKET - switch lever (See Figure 8-34)
1шт.
5
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
2шт.
6
222-504
TUBE NUT,9/16"-20
hi-duty, 3/8 inch OD tube
1шт.
6
700153R11
NUT
hi-duty, 3/8 inch OD tube, Serial Range: (Optional-37165D)
1шт.
7
60652C1
TUBE ASSY.
lubrication
1шт.
8
400054R2
ROD
hydraulic cylinder connecting
1шт.
9
400053R3
LEVER
rockshaft bellcrank
1шт.
10
376069R1
SET SCREW
rockshaft bellcrank
1шт.
11
441015R1
LOCK PIN,5/16" x 2 1/4", Slotted
1шт.
12
400049R2
SHAFT
hydraulic draft control
1шт.
13
376057R1
BUCKET TOOTH KEY
rockshaft hub
1шт.
14
537126R2
PLATE
retaining lift arm
2шт.
15
13-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd
2шт.
16
400000R1
SEALING WASHER
cap screw sealing
3шт.
17
13-822
BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd
3шт.
18
3129243R2
PIPE
TUBE - draft control pressure
1шт.
19
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
90 degree, 7/8 inch NF flare x adj O-ring boss
1шт.
20
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
21
529349R3
SUPPORT
ASSEMBLY - hitch control shaft (See Figure 8-36)
1шт.
22
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
2шт.
23
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
2шт.
24
3129774R2
PIPE
TUBE ASSEMBLY - variable flow
1шт.
25
1289959C2
PIPE
TUBE ASSEMBLY - variable flow control supply
1шт.
26
527229R91
SUPPORT
SPRING - draft sensing
1шт.
27
19842R1
DOWEL,5/16" x 1/2"
PIN 5/16 x 1/2 inch
1шт.
28
61-36228
HEX SOC SCREW,5/8"-11 x 1 3/4"
cap, hex socket, 5/8 NC x 1-3/4 inch
4шт.
28
109041C1
SCREW
cap, hex socket, 5/8 NC x 1-3/4 inch, Serial Range: (Optional-61-36228)
4шт.
Выбрано товаров: 30
