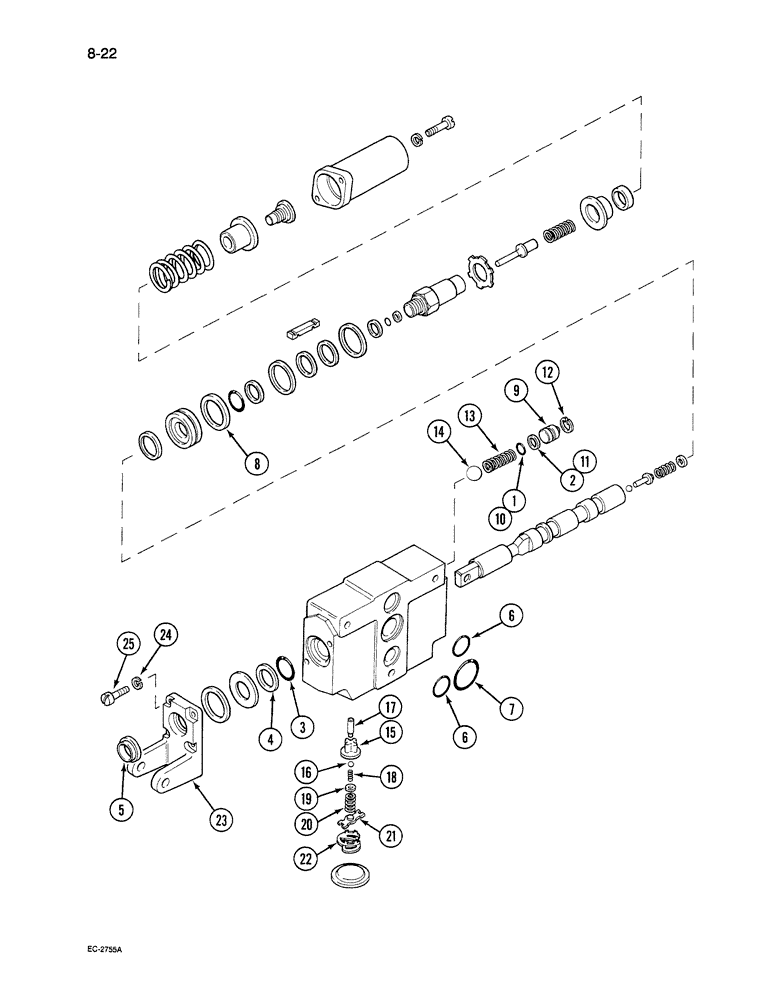

Запчасти Case 380B (8-22) - REMOTE AUXILIARY VALVE ASSEMBLY - WITH ONE CHECK VALVE (08) - HYDRAULICS

1287384C91

VALVE

ASSEMBLY - double acting, with one check valve

1шт.

1328394C1

SEAL KIT

service, seals

1шт.

1

NSS

NOT SOLD SEPARAT

O-RING- 11 ID x 2 mm wide

2шт.

2

NSS

NOT SOLD SEPARAT

RING - back up

2шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 18 ID x 3 mm wide

1шт.

4

NSS

NOT SOLD SEPARAT

RING - back up

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

6

1328382C1

O-RING,2.5mm Thk x 18mm ID

18 ID x 2.5 mm wide

2шт.

7

1328393C1

O-RING,2.5mm Thk x 26mm ID

26 ID x 2.5 mm wide

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - flat

1шт.

1958016C1

REPAIR KIT

KIT - service, check valve

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 11 ID x 2 mm wide

1шт.

11

NSS

NOT SOLD SEPARAT

RING - back up

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

14

NSS

NOT SOLD SEPARAT

BALL - check valve

1шт.

1958017C1

PACKAGE, REPAIR

KIT - repair, check valve

1шт.

15

NSS

NOT SOLD SEPARAT

CONE - valve

1шт.

16

NSS

NOT SOLD SEPARAT

BALL - check valve

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - adjusting

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

19

NSS

NOT SOLD SEPARAT

SHIM - check valve

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

21

NSS

NOT SOLD SEPARAT

RETAINER - check valve

1шт.

22

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

23

1958026C1

BRACKET

auxiliary valve

1шт.

24

892-11006

LOCK WASHER,M6

2шт.

25

1958025C1

SCREW

fillister, 6 mm - 1.00 x 12 mm

2шт.
