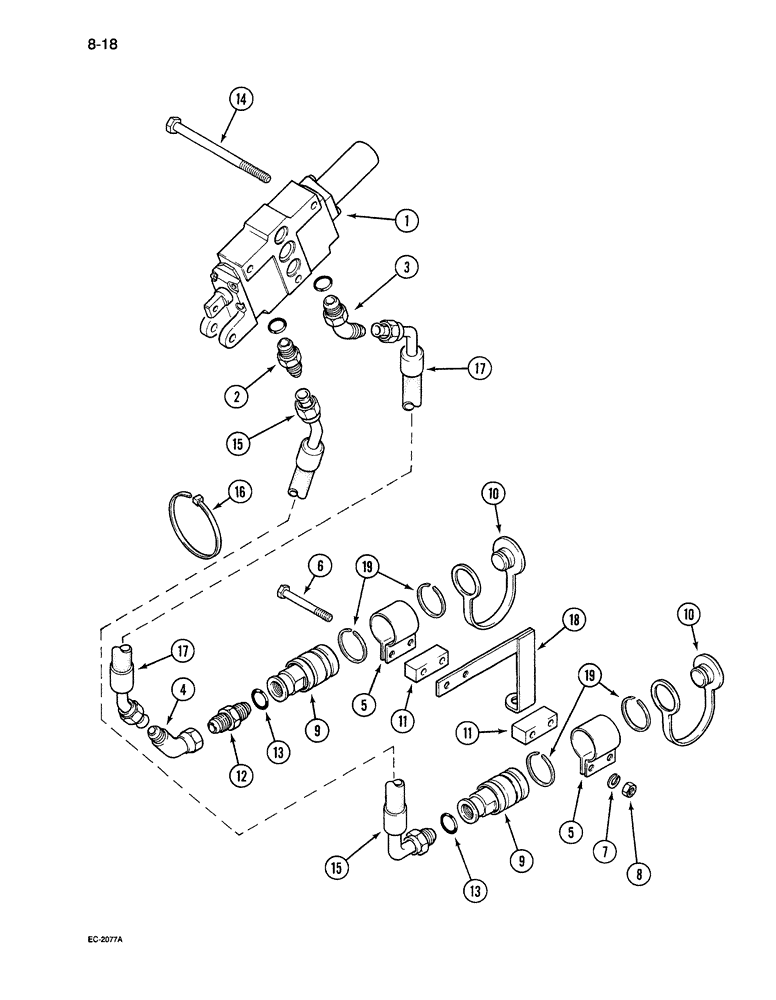

Запчасти Case 380B (8-18) - REMOTE AUXILIARY VALVES - 3RD BANK TUBES AND COUPLINGS (08) - HYDRAULICS

1

1287379C91

VALVE

ASSEMBLY - double acting, without check valve (See Figure 8-20)

1шт.

1

1287384C91

VALVE

ASSEMBLY - double acting, with check valve (See Figure 8-22)

1шт.

2

86165C1

FITTING

UNION - straight, 7/8 inch NF flare x 22 mm - 15

1шт.

3

93636C1

ELBOW

45 degree, 7/8 inch NF flare x 22 mm - 15

1шт.

4

9410256

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

45 degree, swivel, 7/8 inch NF

1шт.

5

3114106R1

CLAMP

coupling

2шт.

6

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

7

492-11031

LOCK WASHER,5/16"

2шт.

8

425-105

NUT,5/16"-18, G5

2шт.

9

A177478

COUPLING, QUICK, FEM

ASSEMBLY - female

2шт.

10

373220R1

PLUG

dust, breakaway coupling

2шт.

11

3129557R1

SPACER

coupling

2шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x 0-ring boss

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

815-8160

BOLT,Hex, M8 x 1.25 x 160mm, Cl 8.8

BOLT - hex, 8 mm - 1.25 x 160 mm

3шт.

15

1956701C1

HYDRAULIC HOSE

ASSEMBLY - 3rd bank, front outlet

1шт.

16

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

1шт.

17

99908C1

HOSE

ASSEMBLY - 3rd bank, rear outlet

1шт.

18

1956705C1

PLATE

ASSEMBLY - coupling

1шт.

19

A137976

SNAP RING,#150, 1.408", Ext

RING - retaining

2шт.
