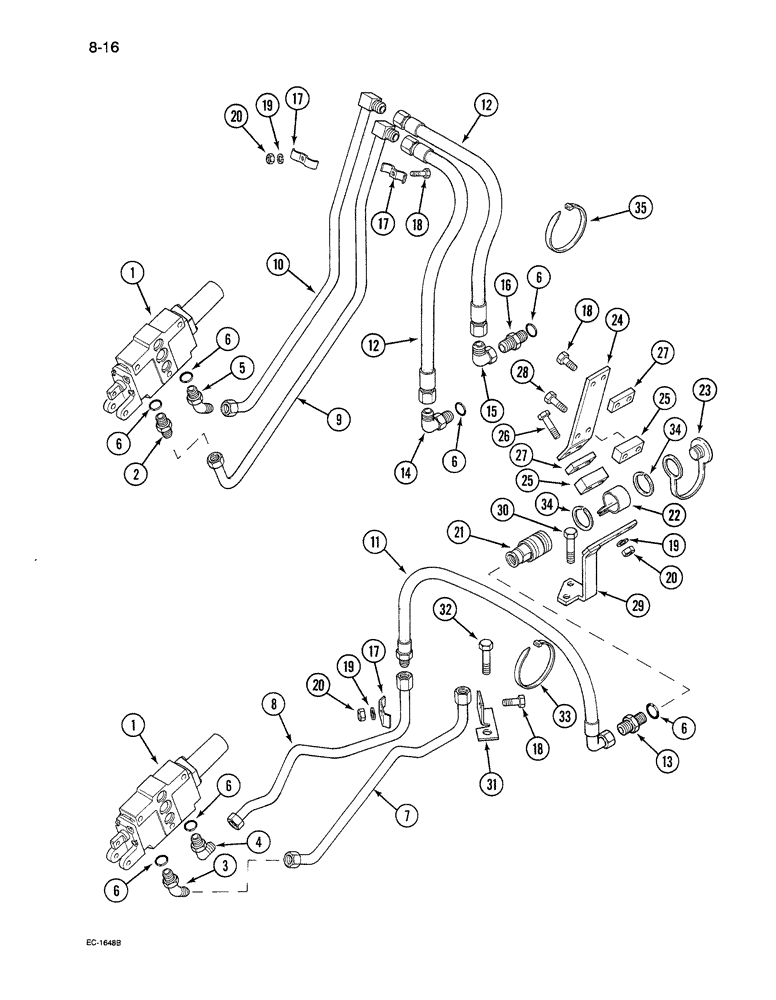

Запчасти Case 380B (8-16) - REMOTE AUXILIARY VALVES - 1ST AND 2ND BANK TUBES AND COUPLINGS (08) - HYDRAULICS

1

1287379C91

VALVE

ASSEMBLY - double acting, without check valve (Used for 1st or 2nd bank position) (See Figure 8-20

1шт.

1

1287384C91

VALVE

ASSEMBLY - double acting, with one check valve (Used for 1 st or 2nd bank position) (See Figure 8-22)

1шт.

2

86165C1

FITTING

CONNECTOR - straight, 7/8 inch NF flare x 22 mm - 1.5 (2nd bank)

1шт.

3

93636C1

ELBOW

45 degree, 7/8 inch NF flare x 22 mm - 1.5 (1st bank)

1шт.

4

86703C1

ELBOW

90 degree, 7/8 inch NF flare x 22 mm - 1.5 (1st bank)

1шт.

5

93636C1

ELBOW

45 degree, 7/8 inch NF flare x 22 mm - 1.5 (2nd bank)

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

99649C1

TUBE ASSY.

raise, 1st bank front outlet

1шт.

8

99648C1

TUBE ASSY.

lower, 1st bank rear outlet

1шт.

9

1536572C1

HYD TUBE,0.625" OD, 386, 510 mm Length

lower, 2nd bank rear outlet

1шт.

10

1536573C1

HYD TUBE,0.625" OD, 595, 340 mm Length

raise, 2nd bank front outlet

1шт.

11

1975234C1

HOSE

ASSEMBLY - 1st bank, outlet, Serial Range: tube-coupling

2шт.

12

1536574C1

HOSE

ASSEMBLY - 2nd bank, outlet, Serial Range: tube-coupling

2шт.

13

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss

2шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8 inch NF flare x adj O-ring boss (2nd bank)

1шт.

15

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

90 degree swivel, 7/8 inch NF flared (2nd bank)

1шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8 inch NF flare x O-ring boss (2nd bank)

2шт.

17

535301R1

CLAMP

rear outlet tube

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

1шт.

19

492-11031

LOCK WASHER,5/16"

1шт.

20

425-105

NUT,5/16"-18, G5

1шт.

21

A177478

COUPLING, QUICK, FEM

ASSEMBLY - female, breakaway

1шт.

22

3114106R1

CLAMP

coupling

1шт.

23

373220R1

PLUG

dust, breakaway coupling

1шт.

24

3129558R1

PLATE

coupling (2nd bank)

1шт.

25

3129557R1

SPACER

coupling (2nd bank)

1шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

(2 bank fit)

2шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(1st bank only fit)

2шт.

27

1500503C1

SPACER

coupling (2nd bank)

1шт.

28

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

(2nd bank)

2шт.

29

535298R1

SUPPORT

BRACKET ASSEMBLY - mounting, rear manifold (1st bank)

1шт.

30

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

(1st bank)

2шт.

31

535300R1

BRACKET

rear outlet tubes (1st bank)

1шт.

32

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(1st bank)

1шт.

33

306132C1

CABLE TIE,14.5" L

CABLE STRAP 4.0 max bundle (1st bank)

1шт.

34

A137976

SNAP RING,#150, 1.408", Ext

RING - retaining

1шт.

35

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP (2nd bank)

1шт.
