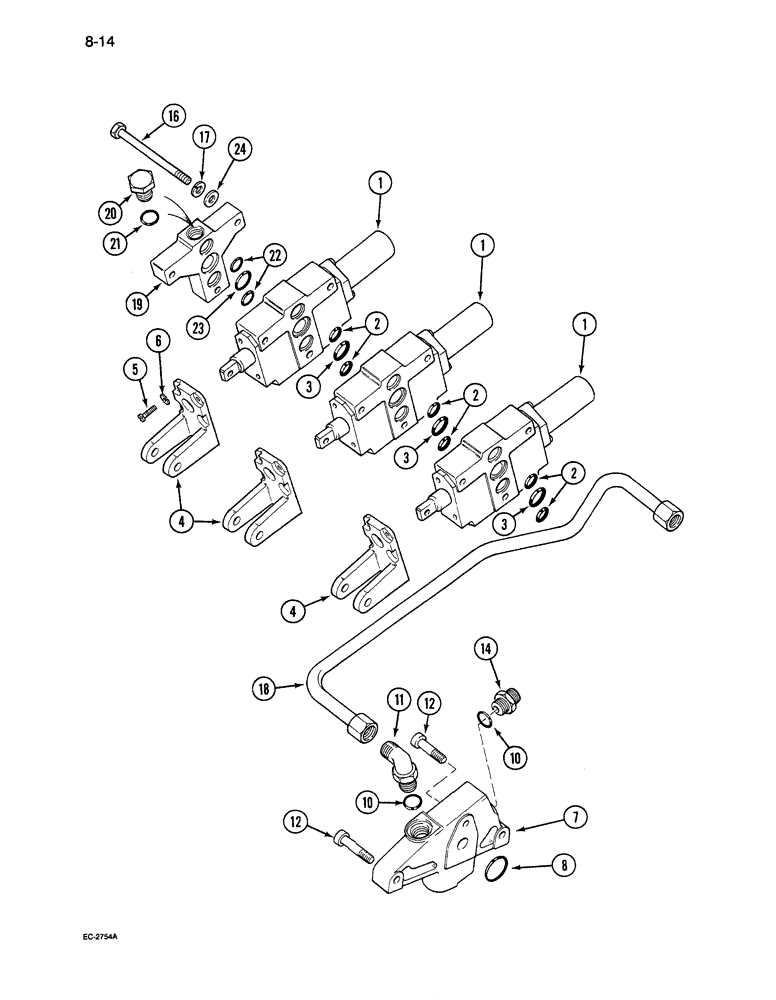

Запчасти Case 380B (8-14) - REMOTE AUXILIARY VALVES - 1ST, 2ND AND 3RD BANK (08) - HYDRAULICS

1

1287379C91

VALVE

ASSEMBLY - double acting, without check valve (Used for 1st, 2nd or 3rd bank position) (See Figure 8-20)

1шт.

1

1287384C91

VALVE

ASSEMBLY - double acting, with one check valve (Used for 1st, 2nd or 3rd bank position) (See Figure 8-22)

1шт.

2

1328382C1

O-RING,2.5mm Thk x 18mm ID

18 x 25 mm

2шт.

3

1328393C1

O-RING,2.5mm Thk x 26mm ID

26 x 2.5 mm

1шт.

4

1958026C1

BRACKET

auxiliary valve

1шт.

5

1958025C1

SCREW

fillister head, 6 mm - 1.00 x 12 mm

1шт.

6

892-11006

LOCK WASHER,M6

1шт.

7

94070C1

PLATE

BLOCK - control valve transfer

1шт.

8

238-5124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8 inch NF flare x adj O-ring boss

1шт.

12

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

cap, hex socket, 3/8 NC x 1-3/4 inch

3шт.

14

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8 inch NF flare x O-ring boss

1шт.

16

815-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

BOLT - hex, 8 mm - 1.25 x 80 mm (1 valve fit)

3шт.

16

815-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

BOLT - hex, 8 mm - 1.25 x 120 mm (2 valve fit)

3шт.

16

815-8160

BOLT,Hex, M8 x 1.25 x 160mm, Cl 8.8

BOLT - hex, 8 mm - 1.25 x 160 mm (3 valve fit)

3шт.

17

892-11008

LOCK WASHER,8mm ID

3шт.

18

1956743C1

HYD TUBE,0.625" OD

TUBE ASSEMBLY - auxiliary valve return

1шт.

1971164C1

COVER ASSY

end

1шт.

19

1971165C1

COVER

end

1шт.

20

1971184C1

PLUG

end cover

1шт.

21

1971185C1

O-RING,13.3mm ID x 2.4mm Width

13.3 ID x 2.4 mm wide

1шт.

22

1328382C1

O-RING,2.5mm Thk x 18mm ID

18 ID x 25 mm wide

2шт.

23

1328393C1

O-RING,2.5mm Thk x 26mm ID

26 ID x 2.5 mm wide

1шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.
