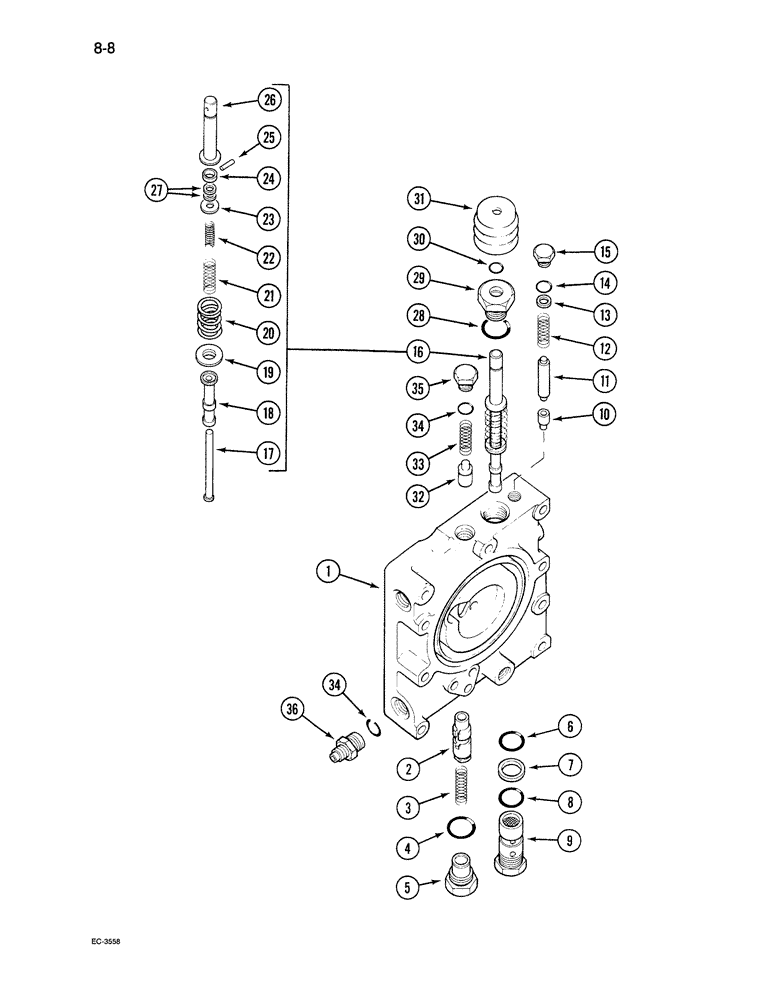

Запчасти Case 380B (8-08) - HYDRAULIC POWER SUPPLY - MULTIPLE CONTROL VALVE (08) - HYDRAULICS

94281C91

VALVE

ASSEMBLY - multiple control

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - multiple control valve (Order valve assembly 94281C91)

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - flow divider (Order valve assembly 94281C91)

1шт.

3

405448R1

SPRING

flow divider valve

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

405447R2

PLUG

flow divider

1шт.

6

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

7

378985R2

BACK-UP RING

backup

1шт.

8

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

9

399858R92

VALVE

ASSEMBLY - pilot relief (2500 psi)

1шт.

10

399882R1

POPPET

poppet, pressure regulator.

1шт.

11

399881R2

PIN

pressure regulator valve

1шт.

12

549850R1

SPRING

pressure regulator valve

1шт.

13

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

spring retainer

1шт.

15

573983R1

PLUG

regulator valve

1шт.

16

530775R93

VALVE

ASSEMBLY - control

1шт.

17

405454R2

PIN

control valve guide

1шт.

18

405452R2

VALVE

control (Order valve assembly 530775R93)

1шт.

19

405453R1

RETAINER

IPTO valve

1шт.

20

530776R1

SPRING

control valve return

1шт.

21

381760R1

SPRING

control valve (Light)

1шт.

22

399878R2

SPRING

control valve (Heavy)

1шт.

23

95-61020

WASHER,13/64" x 3/4" x .060"

1шт.

24

530778R1

RETAINER

pin

1шт.

25

405456R1

PIN

dowel, control valve

1шт.

26

530777R2

STEM

STEM - control valve

1шт.

27

25408R1

SNAP RING,#X21, .185" Dia, E-Type

#X21, .185" Dia, E-Type

1шт.

28

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 ID x 1/64 inch wide, class 6

1шт.

29

530781R2

GUIDE

control valve stem

1шт.

30

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

31

530780R1

BOOT

dust, IPTO control

1шт.

32

527482R1

VALVE,By-Pass

1шт.

33

1502544C1

SPRING

by-pass valve

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

35

529492R2

PLUG

cooler by-pass

1шт.

36

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter, Straight, O-ring boss

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
