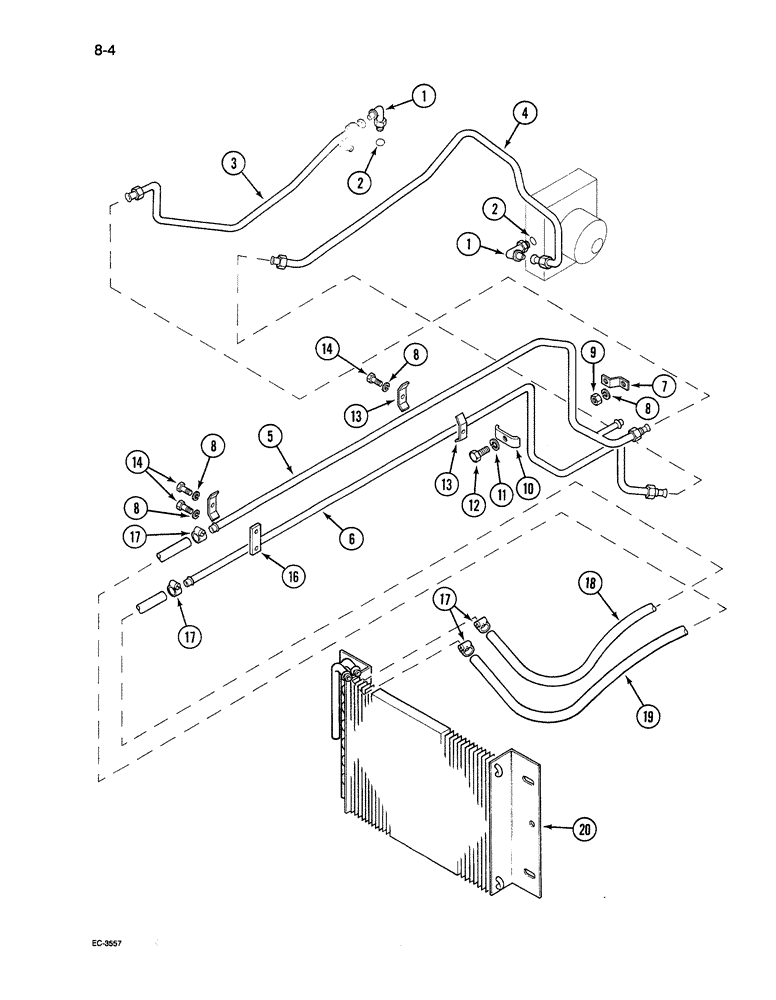

Запчасти Case 380B (8-04) - OIL COOLER SYSTEM (08) - HYDRAULICS

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

3

66096C4

PIPE

TUBE ASSEMBLY - oil cooler return, rear

1шт.

4

3129259R1

PIPE

TUBE ASSEMBLY - oil cooler supply, rear

1шт.

5

99782C1

PIPE

TUBE ASSEMBLY - oil cooler return, front

1шт.

6

99783C1

PIPE

TUBE ASSEMBLY - oil cooler supply, front

1шт.

7

99790C1

SUPPORT

BRACKET

1шт.

8

492-11025

LOCK WASHER,1/4"

4шт.

9

25-104

NUT,1/4"-20, G5

1шт.

10

98788C1

CLAMP

tube

1шт.

11

892-11006

LOCK WASHER,M6

1шт.

12

815-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

BOLT - hex, 6mm - 1.00 x 30 mm

1шт.

13

529644R11

CLAMP

ASSEMBLY - tube

1шт.

14

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

15

529644R1

CLAMP

tube

1шт.

16

98937C1

SUPPORT

BRACKET ASSEMBLY - front

1шт.

17

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

No. 10, type F

4шт.

17

3074617R1

CLAMP

hose, Serial Range: (Optional-274085R91)

4шт.

18

NSS

NOT SOLD SEPARAT

HOSE - oil cooler inlet, 508 mm (Cut from hose 3125980R1)

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE - oil cooler outlet, 508 mm (Cut from hose 3125980R1)

1шт.

19

3125980R1

LARGE HOSE

HOSE,LARGE rubber, 1/2 inch ID, bulk length

1шт.

20

1536380C1

COOLER, OIL

1шт.
