Запчасти Case 380B (7-10) - PARK BRAKE LINKAGE (07) - BRAKES

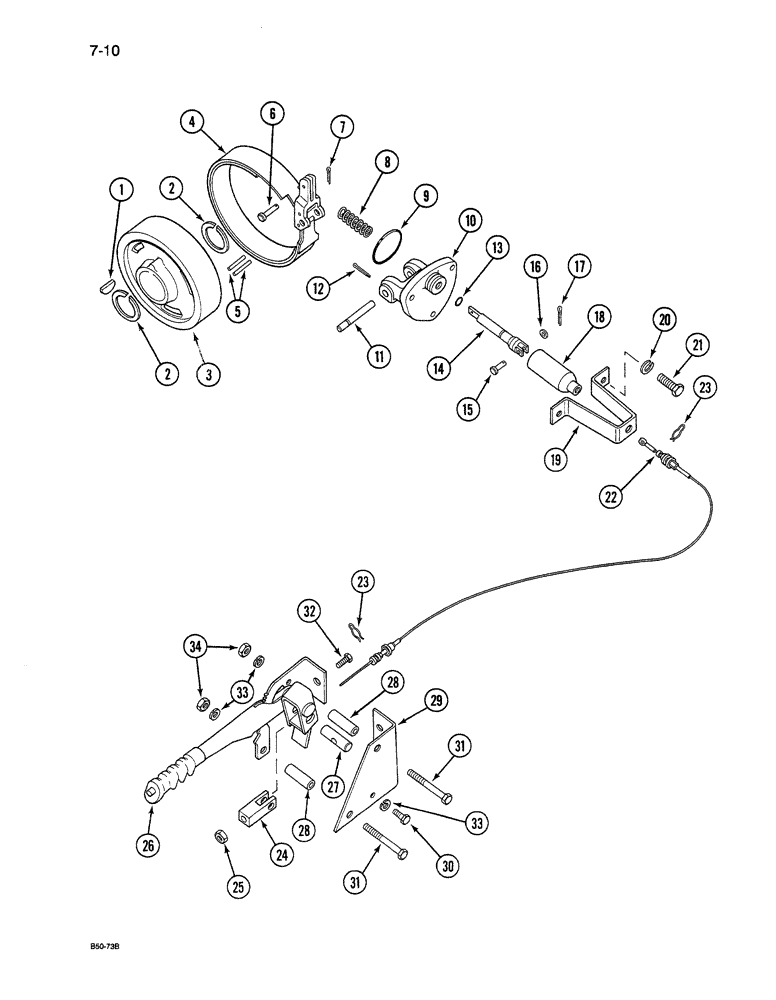

Схема запчастей Case 380B - (7-10) - PARK BRAKE LINKAGE (07) - BRAKES
20
28
17
14
22
15
11
18
9
31
19
6
30
27
1
23
10
28
32
21
2
12
23
16
3
7
2
24
8
34
26
29
33
25
5
4
13
31
33

Артикул

Название

Примечание

Количество

1

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

2

327058R1

RING, SNAP

RING SNAP brake drum retaining

2шт.

3

399828R1

HUB

brake drum

1шт.

4

1971050C1

BRAKE BAND

BAND, BRAKE actuating toggle

1шт.

5

535544R1

PIN

anchor, 1/4 x 1-1/2 inch

2шт.

6

16616R1

CLEVIS PIN,5/16" x .940"

clevis, 5/16 x 31/32 inch

1шт.

7

32-612

COTTER PIN,3/32" x 3/4"

1шт.

8

402000R1

SPRING

parking brake return

1шт.

9

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

10

401997R2

PIVOT

parking brake

1шт.

11

401998R1

PIVOT PIN

parking brake pivot .

1шт.

12

32-822

COTTER PIN,1/8" x 1 3/8"

1шт.

13

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

14

402014R1

PLUNGER

parking brake pivot

1шт.

15

702269R1

HEADED PIN,5/16" x 15/16"

plain head, 5/16 x 15/16 inch

1шт.

16

95-11034

WASHER,1/4"

flat, 11/32 x 43/64 x 3/64 inch

1шт.

17

32-812

COTTER PIN,1/8" x 3/4"

1шт.

18

402015R1

BOOT

cable protection

1шт.

19

401999R1

SUPPORT

BRACKET - cable housing anchor lower

1шт.

20

92-11038

LOCK WASHER,3/8"

3шт.

21

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

3шт.

22

3129788R2

CABLE ASSY.

parking brake

1шт.

23

148150

HAIR PIN COTTER,3/8" Retainer

retaining, 3/8 inch

2шт.

24

3129790R1

BLOCK

brake cable retaining

1шт.

25

144418H

LOCK NUT,5/16"-24, GB

1шт.

26

3129929R92

LEVER ASSY.

hand, park brake (See Figure 7-12)

1шт.

27

3129789R1

PIN,16mm OD x 50mm L

park brake cable

1шт.

28

11531N

SPACER,3/8" Pipe x 2"

standard pipe, 3/8 x 2 inch

2шт.

29

1502240C1

SUPPORT

BRACKET - handbrake support

1шт.

30

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

31

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

32

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

33

492-11038

LOCK WASHER,3/8"

4шт.

34

425-106

NUT,3/8"-16, Cl 5

3шт.

Выбрано товаров: 34
